Prod Model: |
PH-400AC |
Item: |

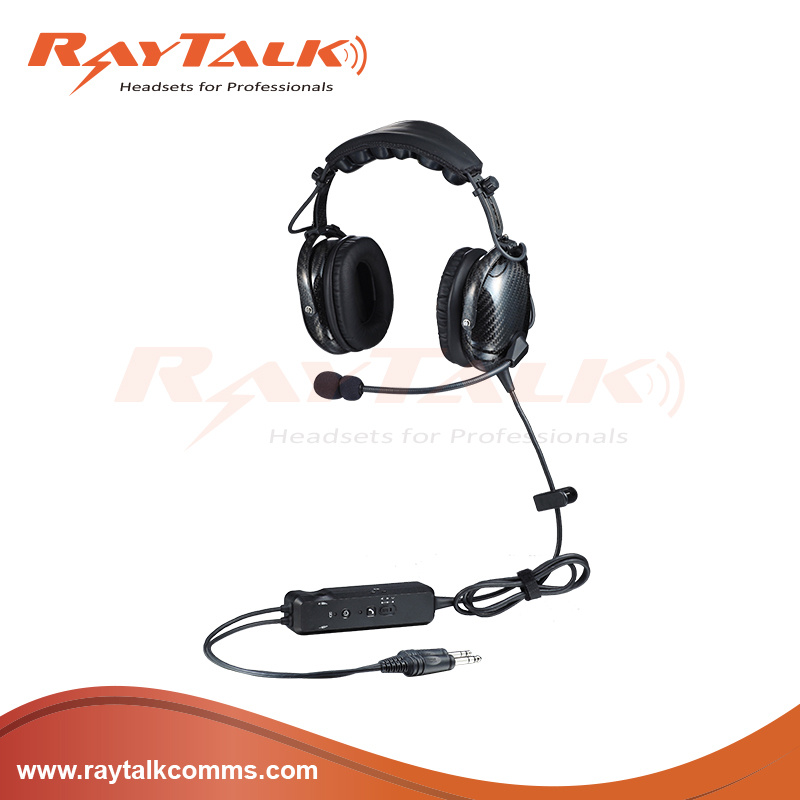

Carbon Fiber Pilot Aviation Headset Bluetooth Head |
Active Noise-Reduction Rated: |
52dB |
Connectors: |
Pj-055/Pj-068 |
Use For: |
Aviation, Pilot, Airline, etc |
Function 1: |
Microphone, Noise Cancelling |
Earphone Plug: |
Pj-055( .25"F6.3 Phone Plug) |
Microphone Plug: |
Pj-068( .206"F5.2 Phone Plug) |
Operating Temperature: |
-20 to 70 |
Weight: |
9oz |
Warranty: |
12 Months |
Product Description
Carbon Fiber Pilot Aviation Headset Bluetooth headsetProduct Description: 1. Ultra-lightweight,weights just 9 ounces (255 grams)
2. GA use dual plugs
3. Passive noise reduction: PNR 24db
4. Faux leather Ear Cushions
5. Noise cancelling electret microphone, dynamic microphone can be replaced
6. Low profile volume control knob
7. Earphone plug: PJ-055(25''F6.3 phone plug)
8. Microphone plug: PJ-068(206''F5.2 phone plug)
9. Straight cord from headset to molded plug: 150cm
Overview |
ANR Aviation Headset |
Plugs | GA Use Dual |
Super Soft Double Foam Head Pad |
New Comfort foam, undercut ear seals |
Molded cord assembly made to exceptional pull and flex standards |
Noise-canceling electret |
Strong Steel Boom provides flexibility and steady microphone placement |
Straight cord from headset to molded plug: | 150CM |
Noise Reduction Ratings (NRR): | 24dB |
Specifications |
Headphone |
Type: | Dynamic (F50) |
Frequency Response: | 100Hz to 8 kHz |
Sensitivity: | 95+/-5 dB SPL |
(1 kHz, 1 mW input per earcup side) | |
full volume on ear simulator | |
Impedance: | 150 ohms (300 ohms each; wired in parallel) |
Rate Input: | 100mW |
Max. Input: | 250mW |
Microphone and Amplifier: |
Element Type: | Noise-canceling electret |
Frequency Response: | 100Hz to 5 kHz |
Operating Voltage (supplied by aircraft ): | 8-32 Volts DC |
Matching Impedance: | 150-1000 ohms |
Sensitivity: | 33+/4 dB |
(ref: 0dB SPL=20.0uPa at 1 kHz with 10 Vdc 150 ohms AC load) | |
General |
Operating Temperature: | below 20 to 70 °C |
Cordage: | Straight cord from headset to molded |
plug, | 150CM |
Intercom Connections Plug: | |
Earphone Plug: | PJ-055( .25"F6.3 phone plug) |
Microphone Plug: | PJ-068( .206"F5.2 phone plug) |
Weights: | 530g |
Headset size range Height: | 10 to 14 cm |
Color: | Green/Black/Pink/Red/Yellow/Blue/White/Grey |
Boom: | Spring tension boom |

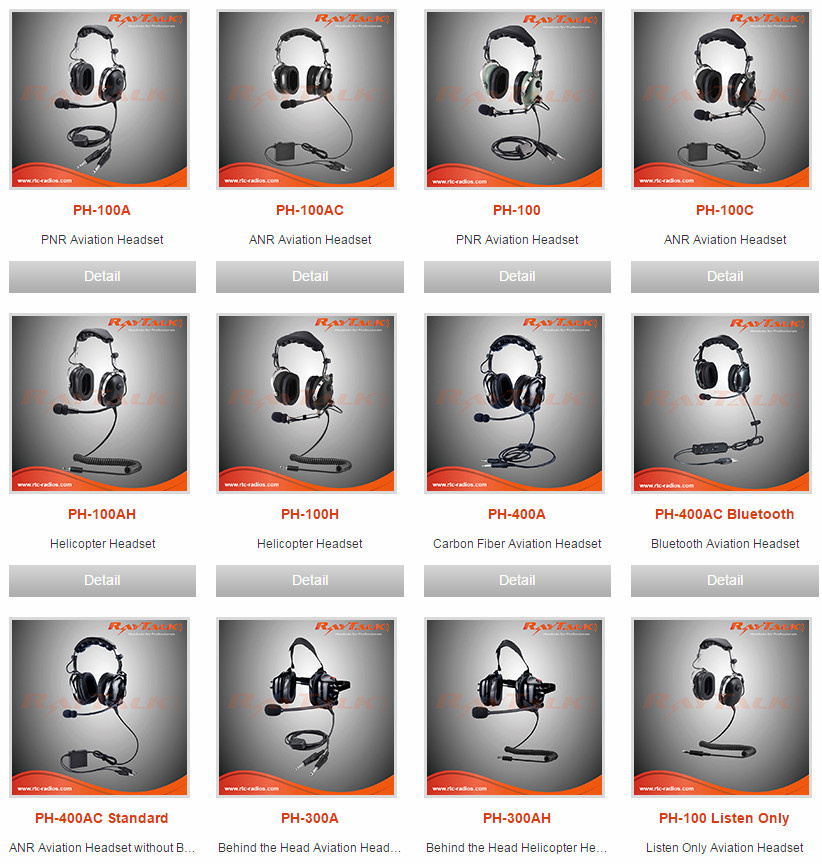

Other Aviation headset:

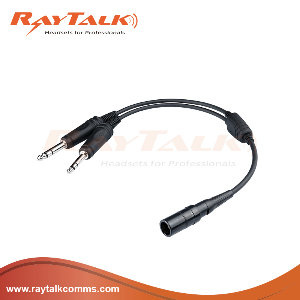

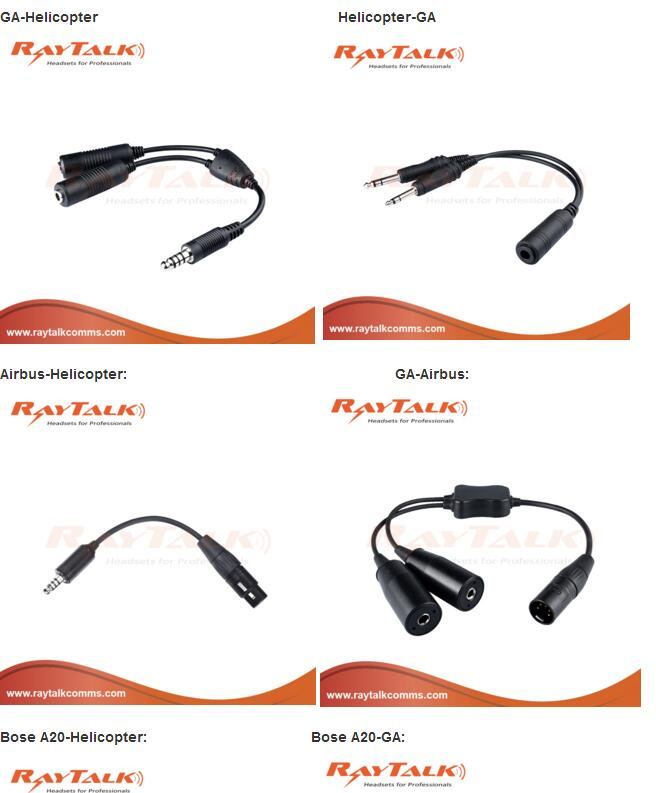

Aviation headset Adapters:

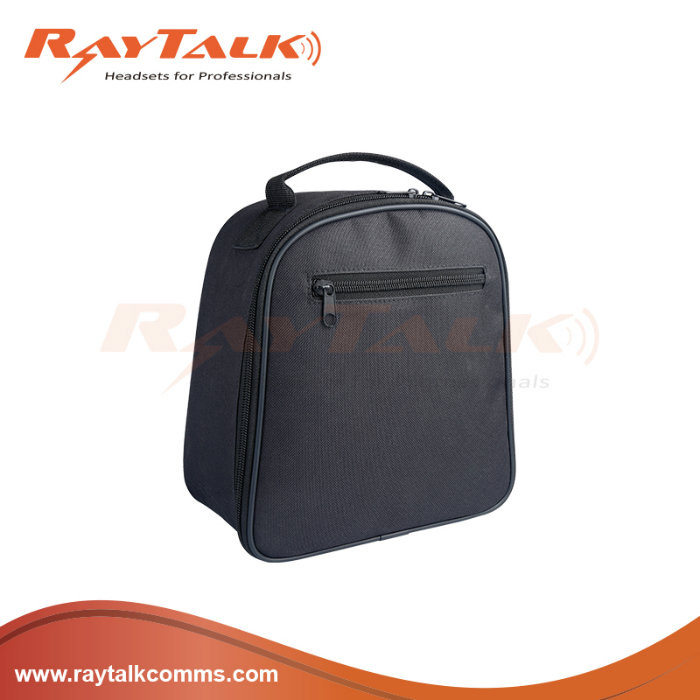

Headset bag:
