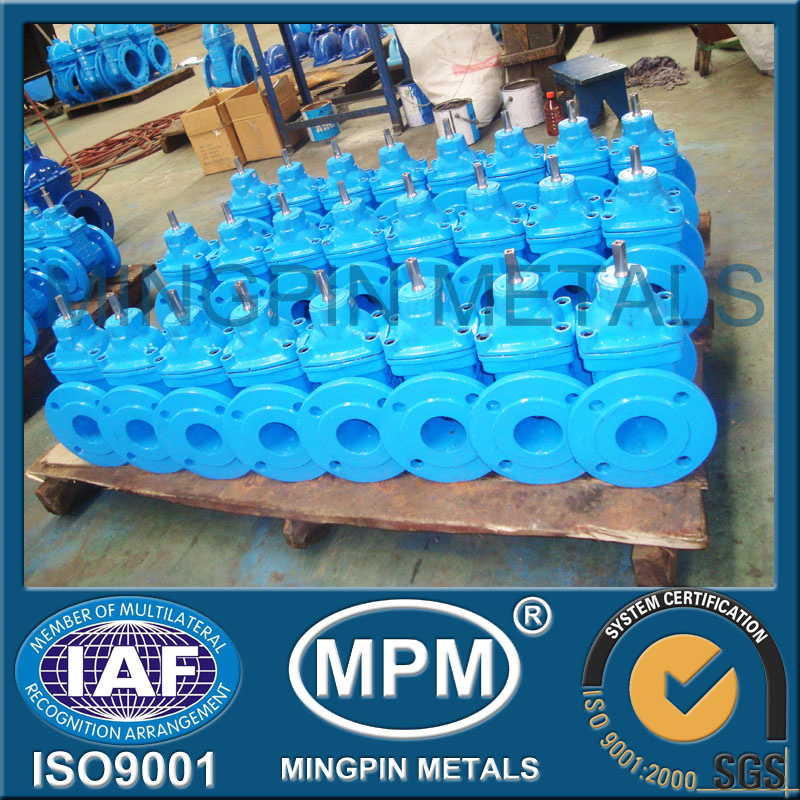

Cast Iron Gate Valve
| Price: |
Negotiable/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
Gate Valve |
| Material: |
Cast Iron |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Water Industrial Usage |
| Type: |
Gate Valve |
| Standard: |
BS DIN Awwa |
Product Description
| Type | Standard | Specification | Size | Pressure |
| Resilient Seated Gate valve | BS | BS5163 Type A | DN40-DN900 | PN10/16/25 |
| BS5163 Type B | DN50-DN300 | PN10/16 |
| BS1218 | DN40-DN400 | PN10/16 |
| DIN | DIN3352-F4 | DN40-DN900 | PN10/16 |
| DIN3352-F5 | DN40-DN900 | PN10/16 |
| AWWA | AWWAC515 | DN50-DN600 | 125/150LBS |
| AWWAC509 | DN50-DN300 | 125/150LBS |
| TaiWan | TaiWan Standard | DN50-DN600 | 7.5/10K |
| Korean | KSB 2334 | DN50-DN600 | 5/10/16K |
| SABS | SABS 664/665 | DN40-DN600 | PN10/16 |
| SABS669 | DN50-DN315 | PN10/16 |
| ISO | ISO2531 | DN50-DN300 | PN10/16 |
| | | | | |
| Metal Seated Gate valve | BS | BS5163 Type A | DN40-DN600 | PN10/16 |
| BS5163 Type B | DN50-DN300 | PN10/16 |
| BS3464 | DN40-DN300 | PN10/16 |
| DIN | DIN3352-F4 | DN40-DN400 | PN10/16 |
| DIN3352-F5 | DN40-DN400 | PN10/16 |
| AWWA | AWWA C500 | DN40-DN600 | 125/150LBS |
| SABS | SABS 664/665 | DN40-DN600 | PN10/16 |
| | | | | |
Swing Type
Check Valve | BS | BS5153 | DN40-DN400 | PN10/16 |
| AWWA | AWWAC508 | DN40-DN400 | 125/150LBS |
| DIN | DIN3202 F6 | DN40-DN400 | PN10/16 |
| DIN3202 F1 | DN15-DN300 | PN10/16 |
| | | | | |
Ball Type
Check Valve | BS | BS5153 | DN40-DN300 | PN10/16 |
| DIN | DIN3202 F6 | DN40-DN300 | PN10/16 |
| | | | | |
| Butterfly Valve | BS | BS5155 | DN40-DN1200 | PN10/16 |
| | | | | |
| Globe Valve | BS | BS5152 | DN10-300 | PN10/16 |
| DIN | DIN3202 F1 | DN10-300 | PN10/16 |
| DIN3356 | DN10-300 | PN10/16 |
| ANSI | MSS-SP-85 | DN10-300 | 125LBS |
| JIS | MSS-SP-85 | DN10-300 | JIS10K |
| | | | | |
| Y- strainer | EN | EN1074 | DN10-DN450 | PN10/16 |
| BS | BS2080 | DN10-DN450 | PN10/16 |
| DIN | DIN3202 F1 | DN10-DN450 | PN10/16 |
| | | | | |
| Air Valve | EN | EN1074 Single | DN50-DN200 | PN10/16 |
| EN1074 Doulbe | DN40-DN150 | PN10/16 |
| EN1074 Thread | DN25-DN50 | PN10/16 |
| | | | | |
| Foot Valve | EN | EN1074-5 | DN50-DN300 | PN10/16 |
| | | | | |
| Fire Hydrant | BS | BS750 | DN65-DN80 | PN10/16 |
Hefei Mingpin Metals Co., Ltd. Is a professional manufacturer and exporter of flange, valve and pipe fittings. We are specializing in flange, valve and pipe fittings for more than decade, our products are widely sold in the Asian, European and African market.
Our main products include cast iron valves, ductile iron fitting, carbon steel and stainless steel flanges, butt-welding seamless pipe fittings, etc. They are all produced according to DIN, BS, ANSI, JIS, EN, GOST, SABS standard, we also produce special valves and pipe fittings according to buyer's drawing and sample.
Mian Porducts: Flange, Valve, Pipe Fittings
Mian Market: Europe, Asia, South Africa
Industry Capacity: 200tons Per Month
Business Volume: 3million USD Per Year.
For more details, please contact us now, we ensure that you'll find very good prospect in our products.
