Casting China Clamp on Shaft Coupling

Prod Model:	DN65
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Rubber Coupling
Max Working Pressure:	1000psi (68.9bar)
Material Of Body:	304 or 316L
Other Material Can Be:	Super Duplex Stainless Steel
Material Of Rubber:	EPDM
Material Of Bolts And Nuts:	304 Stainless Steel
Temperature:	0-150
Size:	1" to 12" (Dn25 to Dn300)
OEM:	Yes
Technology:	Forging
Structure:	Metal Bellows
Flexible Or Rigid:	Flexible
Material:	Stainless Steel
Standard:	Standard
Connection:	Coupling

Product Description


                      Casting China Clamp on Shaft Coupling



Characteristic :

1. Excellent sealing: With the perfect combination of Novel-Polymer-Material body, and high-quality rubber  this coupling has excellent sealing performance.

2. Excellent corrosion resistance: the advantages of new polymer material is its good corrosion resistance, especially for the pipe connection of a variety of purposes, for example the harsh environment of the seawater desalination and wastewater treatment engineering.

3. Prominent high pressure resistance, anti-fatigue: and experimental data shows that the composite material products can resist pressure up to 6.9 MPa, and it can work through 100,000 cycles of fatigue test of 5.5 MPa.

4. Light and beautiful: Compared to stainless steel products, its weight is only 50% of stainless steel,which is easy to transport. It can be made in various colors for different pipes.

5. Specification is complete: It has models of DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300 also it's in the development of more product specifications.

6. Easy to operate: It makes the operation of pipe connection extremely convenient, with special accessories and more flexibility.

7. Special attachment is complete: We provide the special attachment of a variety of materials, caliber, interfaces to help it work under various environments.

8. Wide temperature ranges: It is suitable for temperatures from -17°C to 160°C.

9. High performance-to-price ratio: We provide products with good price, and guarantee the same performance as high-cost products.

Application:

It can be used for low-pressure microfiltration, ultrafiltration, and reverse osmosis, sewage systems and other piping connections. The coupling body uses the  novel polymer material that meets the standards of ASTM A351 and A743. The sealing "C" ring's material is EPDM and can work under temperature of -50°C to 150°C .  Also it can be applied under chemical environment like diluted acid and non-oil air.

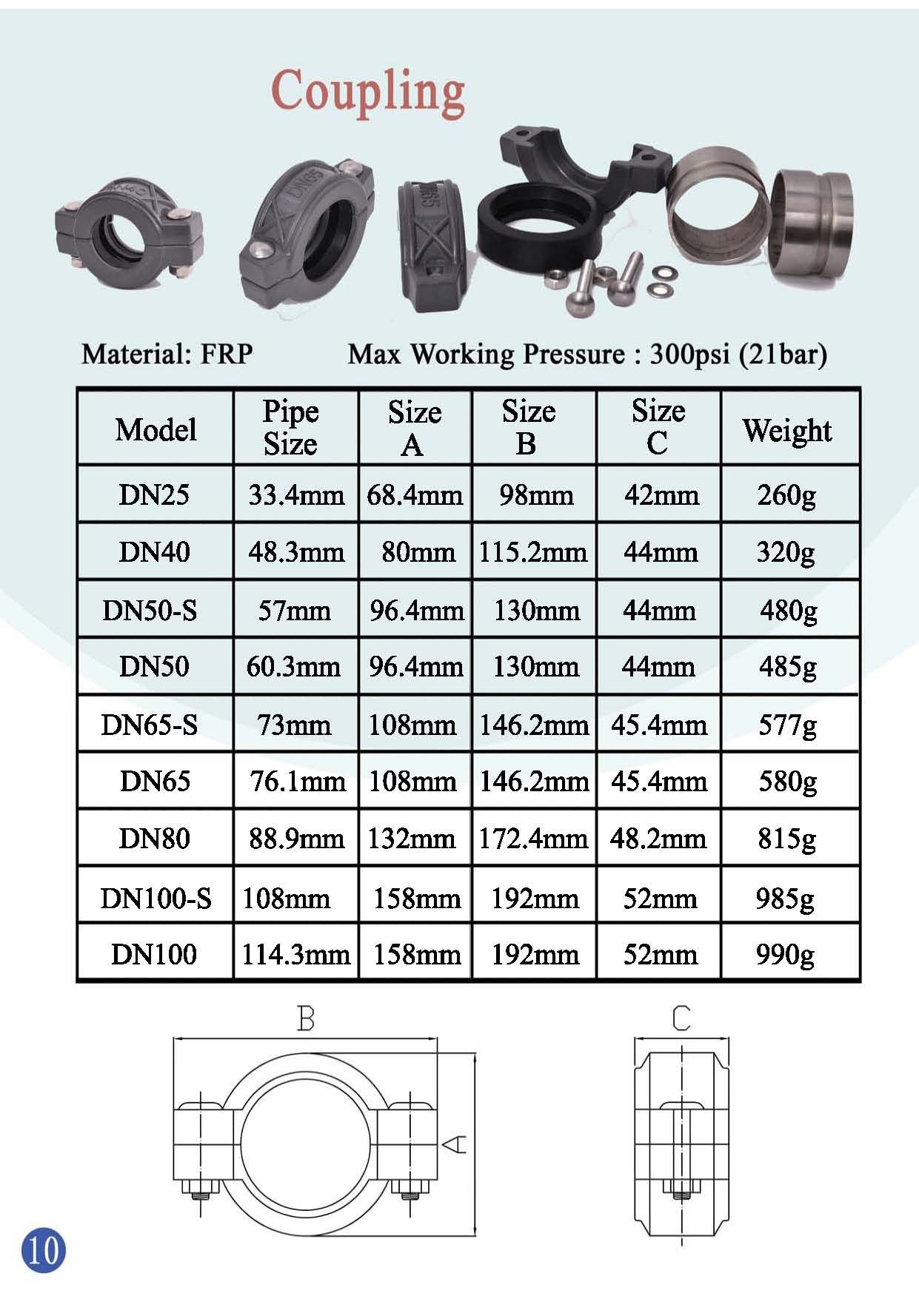

Model	Diameter size	Max Pressure	Size A	Size B	Size C
DN25 1"	33.40mm	300psi- 1500psi	68.40mm	98.00mm	42.00mm
DN40 1.5"	48.30mm	300psi- 1500psi	80.00mm	115.20mm	44.00mm
DN50	57.00mm	300psi- 1500psi	96.40mm	130.00mm	44.00mm
DN50 2"	60.30mm	300psi- 1500psi	96.40mm	130.00mm	44.00mm
DN65	73.00mm	300psi- 1500psi	108.00mm	146.20mm	45.40mm
DN65 2"	76.10mm	300psi- 1500psi	108.00mm	146.20mm	45.40mm
DN80 3"	88.90mm	300psi- 1500psi	132.00mm	172.40mm	48.20mm
DN100	108.00mm	300psi- 1500psi	158.00mm	192.00mm	52.00mm
DN100 4"	114.30mm	300psi- 1500psi	158.00mm	192.00mm	52.00mm
