| Prod Model: |
KCY 28DM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Controlling Mode: |
Artificial |
| Structure: |
Vertical Drilling Machine |
| Layout: |
Horizontal |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Weight: |
7kgs |
| Certificate: |
CE RoHS |
| Color: |
Orange |
| Type: |
Magnetic Drill |
Product Description
Specifications
Diamond core drillIing machine
With CE certifacate
Professional manufacture in the field of drilling machine
We can offer OEM
Choose our advantage:
Professional manufacture in the field of drilling machine in China.
Diamond/Magnetic core drillIing machine and wall cutter.
With CE certifacate and offer OEM.
Factory Introduce:
Shanghai Chengxiang Electromechanical Equipment Co., Ltd.
It is a hi-tech enterprise which boasts of its scientific research, manufacturing, and sales.
We are an experts in the field of drilling in China.
Product detail:

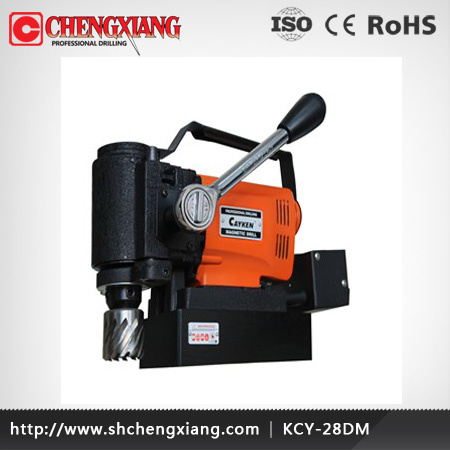

Model: KCY-28DM
Packing detail:
Product feature:
1. With soft-starting, constant power.
2. With over-loading protection.
3. With stepless speed-regulating.
4. With high magnetic adhesion.
5. With coolant and lubricant integrated device.
Certificates:
Introduce Magnetic:
Magnetic drill is a kind of electric tool for adhering and drilling on the horizontal level, side face and top face, and widely used in the building, bridge building, and ship building industries and so on.
You can use the magnetic drill when you can not use drill press and electric hand drill to drill huge steel workpieces or in field operation.
| Product Model | KCY-28DM | KCY-38DM | KCY-55DM |
| Core Drill Range | 28MM | 38MM | 55MM |
| Rated Voltage | 110/220V | 110/220V | 110/220V |
| Rated Frequency | 50-60HZ | 50-60HZ | 50-60HZ |
| Rared Input Power | 1400W | 1650W | 1900W |
| No-Load Speed |
650RPM |
600RPM | 550RPM |
| Max Attraction | 15800N | 17500N | 22000N |
| Max Stroke | 150mm | 180mm | 225mm |
| WEIGHT: | 8KGS | 9KGS | 12KGS |
