| Prod Model: |
CD6250B |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description

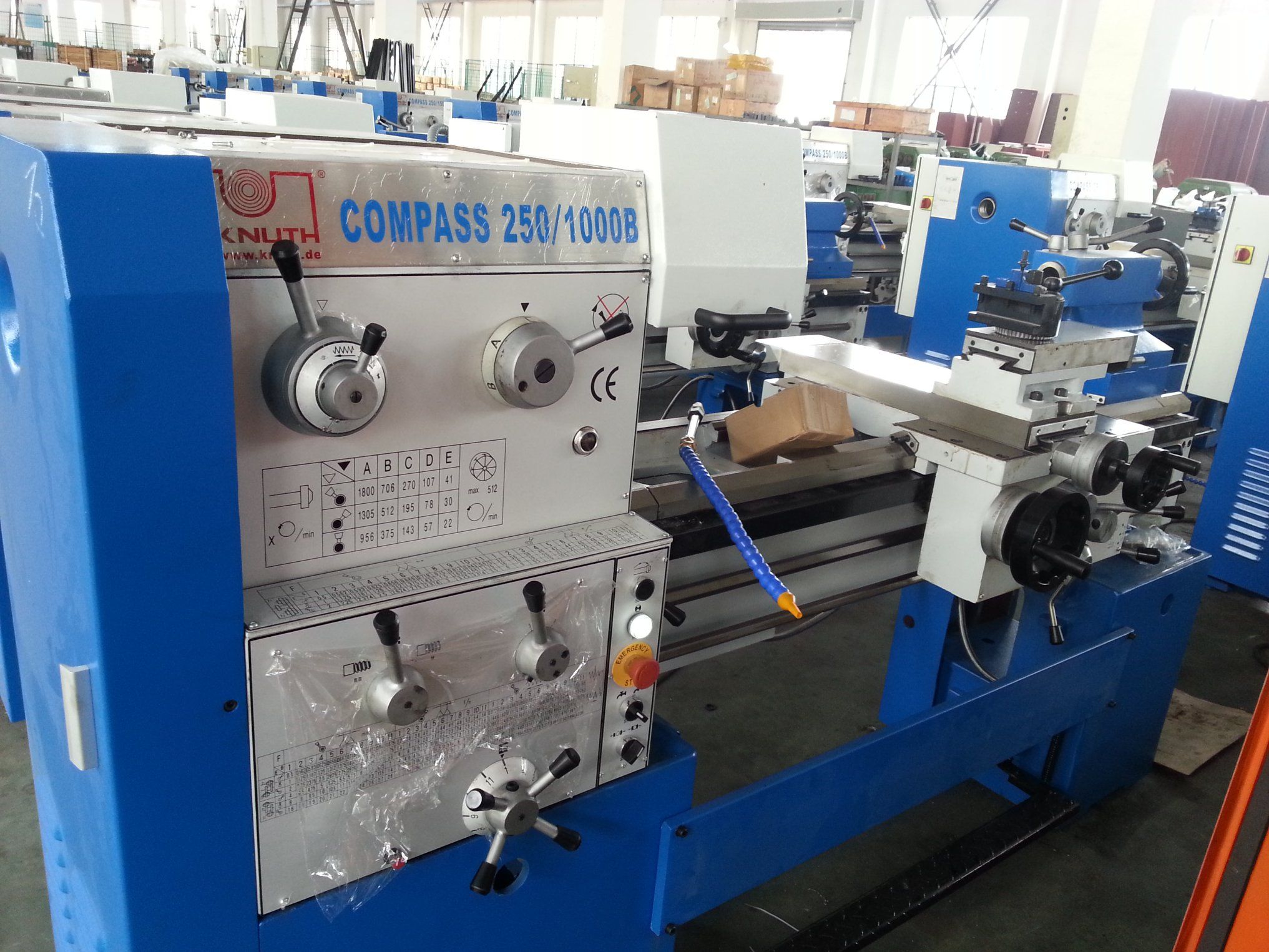

Gap Lathe Machine Spindle Hole 65mm CD6250B Centre Length 1000mm
Feature:
Precision ground
CE-conformity; Magnetoelectrical brake can be amounted
Safety torque limiting device for lead screw
Safety overload clutch for feedrod
Rapid traverse (optional)
Main spindle supported at 2 points with precision taper roller bearings
STANDARD ACCESSORIES
3-jaw chuck 250mm, Driving plate, Center & center sleeve, Oil gun, Wrenches, Operation manual
OPTIONAL ACCESSORIES
Steady rest, Follower rest, 4-jaw chuck 320mm, Face plate, Thread dial, Longitudinal automatic trip, Live center, Quick change toolpost, Taper copy ruler, 4-position longitudinal antomatic trip
| MODEL | | CD6240B | | CD6250B | CD6260B |
| CAPACITIES | Max. swing over bed | | 400mm (16" ) | | 500mm (20" ) | 600mm (24" ) |
| Max. swing over cross slide | | 225mm (9" ) | | 325mm (13" ) | 360mm (14" ) |
| Center distance | 1000, 1500, 2000mm |
| Max swing over gap | | 530mm (21" ) | | 630mm (25" ) | 730mm (29" ) |
| Effective length of gap | 260mm (10 1/4" ) |
| Bed width | 330mm (13" ) |
| HEADSTOCK | Spindle hole | 65mm (2 3/5" ) |
| Spindle nose | ISO-C6 or ISO-D6 |
| Spindle taper | Metric 70mm |
| Spindle speeds (Number) | 22-1800rpm (15 Steps) |
| FEEDS | Metric threads range (Kinds) | 0.5-28mm (66 Kinds) |
| Inch threads range (Kinds) | 1-56inch (66 Kinds) |
| Moudle threads range (Kinds) | 0.5-3.5mm (33 Kinds) |
| Diametral threads range (Kinds) | 8-56D. P (33 Kinds) |
| Longitudinal feeds range (Kinds) | 0.072-4.038mm/rev (0.0027-0.15 inch/rev) (66 Kinds) |
| Cross feeds range (Kinds) | 0.036-2.019mm/rev (0.00213-0.075 inch/rev) (66 Kinds) |
| Rapid travelling speed of carriage | 5m/min (16.4 ft/min) |
| Leadscrew size: Diameter Pitch | 35mm/6mm or 35mm/1/4" |
| CARRIAGE | Cross slide travel | 300mm (13" ) |
| Compound rest travel | 130mm (5" ) |
| Cross-section size of toolshank | | 20 x 25mm (1 x 6/8inch) | 25x 25mm |
| TAILSTOCK | Taper of tailstock sleeve | Morse No. 5 |
| Diameter of tailstock sleeve | 75mm (23/5" ) |
| Travel of tailstock sleeve | 120mm (43/4" ) |
| MOTOR | Main drive motor | 4.0kw or 5.5kw or 7.5kw | 7.5kw |
| Coolant pump motor | 0.125kw |
| Rapid traverse motor | 0.12kw |
| Packing Size (L x W x H) | |
| Center distance | 1000mm | 2420 x 1150 x 1800mm (96 x 46 x 71in. ) |
| | 1500mm | 2920x 1150 x 1800mm (115 x 46 x 71in. ) |
| | 2000mm | 3460 x 1150 x 1800mm (137x 46 x 71in. ) |
| | Net Weigh/Gross Weight (Kgs) | |
| Center distance | 1000mm | | 1560/2210kg | | 1600/2250kg | 1640/2290kg |
| | 1000mm | | 1770/2410kg | | 1830/2470kg | 1870/2530kg |
| | 1000mm | | 2010/2780kg | | 2070/2820kg | 2130/2860kg |
