| Model: |
Sb50CNC |
| Max Bending Radiu: |
250mm |
| Min Bending Radiu: |
25mm |
| Max Wear Core: |
2400mm |
| Max Bending Angle: |
185 |
| Bend Pipe Fittings Can Be Set: |
16 |
| The Data Input Mode: |
Y.B.C |
| Turing Servo Motor: |
400W |
| Feeding Servo Moter: |
1.5kw |
| Machine Size: |
3500*1550*1050 |

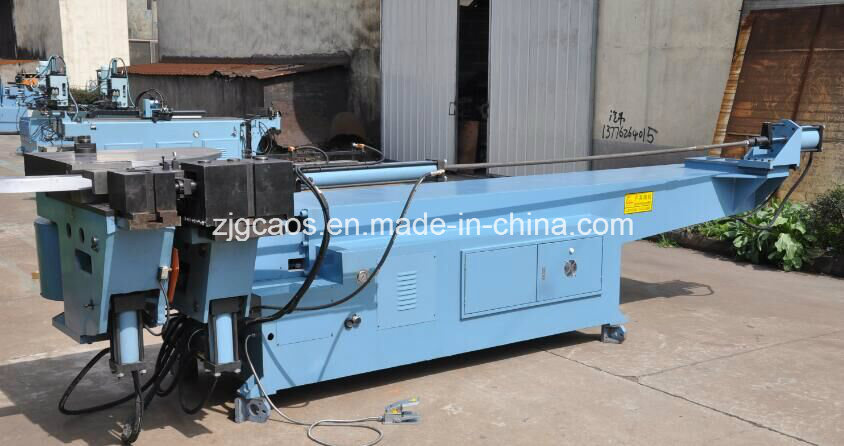

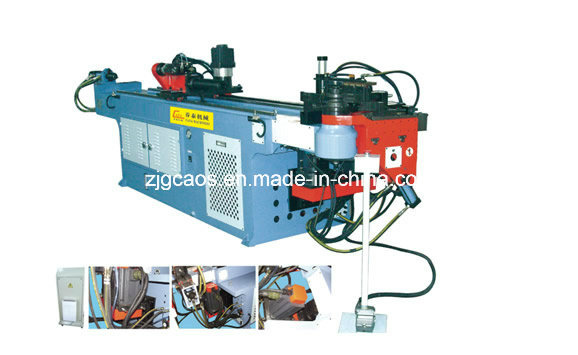

Product Description
Automatic recognition of power in machine and work piece, the processing is both quick and good
Slow returning core, boosted by barrow, imporving the apprearance of the angle.
The whole operation is in the computer, simple, quick and correct
Picturized programming system: draw and modify on the stereo pipe image on the screen, makes the operation simple, quick and correct
Rebound test: comparison test on the features of lots of pipe materials
Single-step debugging function- a careful observe on the deformation of the pipe material during the trail manufacture of dies.
Automatic drawing of the graphics of dies-clear help to develop new products
Over-all inspection: hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles
passwords, keys, working hours/ recordings of quantities, are applied to management of production.
Specification/Model | 1. SB50CNC
| Remark |
| Max bending capability | Φ50mm×3mm |
1. The Minimum bending diameter of CNC bending machine based on the pipe diameter
2.The Max bending diameter of CNC bending machine can accordingto the customers requirement
3.The Max length of mandrel of CNC bending machine can according to customers requirement |
Max bending radius | R250mm |
| Min bending radius | R20mm |
| Max bending angle | 190° |
| Max feeding length | 2600mm |
| feeding method | direct feeding
clamping feeding |
| Working speed | Bending speed | Max 85°/s |
| Rotary speed | Max 200°/s |
| Feeding speed | Max 1000mm/s |
| Working accuracy | Bending accuracy | ±0.1° |
| Rotary accuracy | ±0.1° |
| Feeding accuracy | ±0.1mm |
| Information inputting method | 1. axisX . Y. Z
2.working valueY. B. C |
| Bending method | 1.Servo bending : 1kw(more than 3 axis
2. Hydraulic bending |
| Power of rotary servo motor | 750w |
| Power of feeding servo motor | 1kw |
| Max bending groups | 1. 12
2. 33 |
| Max storing components | 1. 330
2. 125 |
| Motor power | 7.5kw |
| Oil pressure | 12 Mpa |
| Size | 4900 x 1300 x 1300mm |
| Weight | 2500kg |
Caos machinery is a professional engaged in metal pipe processing machinery manufacturing enterprises, located in China economy the most developed Yangtze river delta economic circle, the famous international garden city-zhangjiagang city, jiangsu province in the country. Zhou Lin Shanghai, ning, hangzhou, su, tin, often economic hinterland, linjiang sea transportation is very convenient, provided the infinite possibility for the development of Qiao sheng machinery, Qiao sheng company has strong design and development capabilities, has developed the series of CNC CNC pipe bending machine, CNC CNC series of pipe end forming machine, CNC CNC metal circular saw machine, riveting machine, CNC CNC gear grinding machine, such as pipe processing machinery automation, For avation, heavy engineering machinery, nuclear power, nuclear power, thermal power, wind power yachts shipbuilding, automobile parts, motor vehicle chassis, air conditioning and refrigeration, sports fitness equipment, steel furniture, leisure travel supplies, plumbing sanitary ware, decorative materials and other industries of metal products processing provides a complete, perfect machinery automationequipment. Company can also according to customer demand design, manufacture special specifications of unmanned intelligent automation pipe production line, CNC machinery and equipment and various non-standard automation. The company with its advanced technology, excellent quality, professional service wholeheartedly for the new and old customers to provide services.
