Ce Drop Forged Self Locking Eye Safety Snap Hook
| Price: |
US $ 1.88-2.06/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
Fall Protection Scaffold hook G9120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gate Open: |
52mm |
| Technology: |
Forged |
| Major Axis: |
25kn |
| Max Breaking Load: |
5000lbs/22kn |
| Engraved Marking: |
Available |
| Material: |
Metal |
| Type: |
Hook |
| Usage: |
Industrial and Household |
| Brand: |
Fosun |
| Color: |
White/Yellow Zinc Plating, Chrome Plating |
Product Description

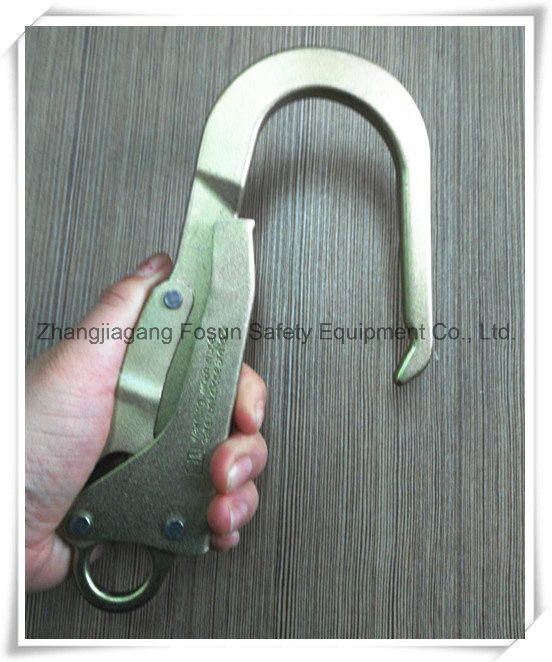

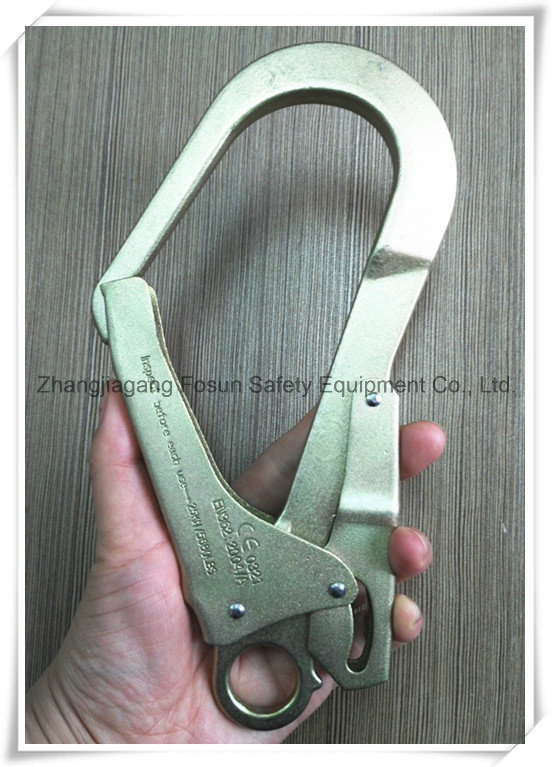

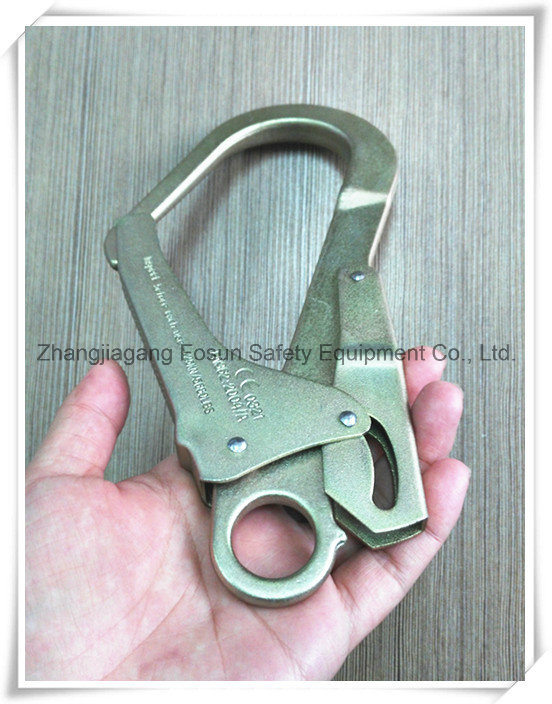

Color-Zinc Steel Snap Hooks for Industrial with CE
Specifications:
G9120 1 4/25" Form Snap Hook
Sheet Stamping Steel
100% proof loaded to 3600 lbs(16kN)
Min tensile strength 5000 lbs(22.2kN)

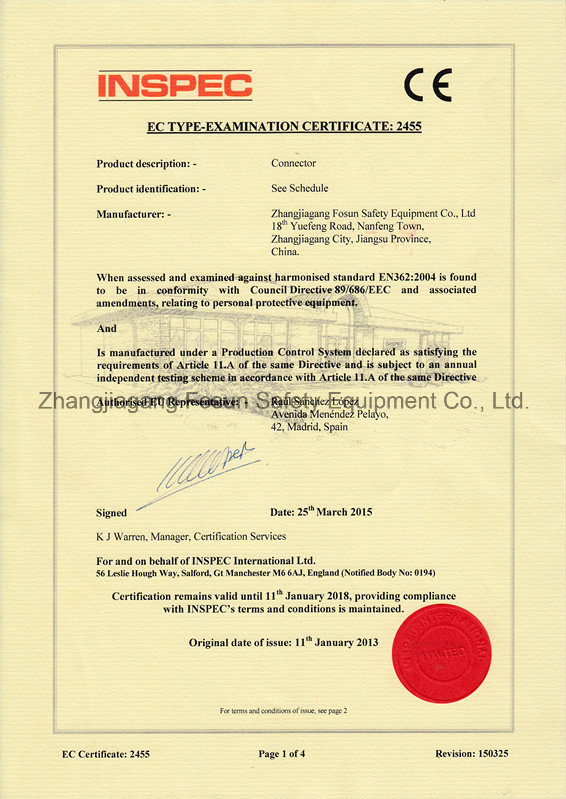

Certified to:
EN362-2004
Finished:
White/Yollow Zinc Plating, Chrome Plating, Dacrometing
Weight: 480gmMINIMUM REQUIREMENTS AS OUTLINED FOR HOOKS AND CARABINERS PER STANDARD| Standard | CSA Z259.12-01 | CSA Z259.12-11 | ANSI Z359.12-1999 | ANSI/ASSE Z359.1-2009 | EN 362: 2004 | NFPA 1983-2006 |
| Major Axis | 5000 lbs(22.2kN) | 5000 lbs(22.2kN) | 5000 lbs(22.2kN) | 5000 lbs(22.2kN) | 4500 lbs(20kN) | *** |
| Gate Face | 220 lbs(1kN) | 3600 lbs(16kN) | 220 lbs(1kN) | 3600 lbs(16kN) | 220 lbs(1kN) | N/A |
| Side Load | 350 lbs(1.55kN) | 3600 lbs(16kN) | 350 lbs(1.55kN) | 3600 lbs(16kN) | 350 lbs(1.55kN) | N/A |
| Minor Axis | N/A | 3600 lbs(16kN)* | N/A | 3600 lbs(16kN)* | ** | *** |
* New Standard required Minor Axis Loading for connectors with non-integral eyes.
** EN: Basic Connector 1575 lbs(7kN); Multi Use Connector 3378 lbs(15kN).
*** NFPA: Light Use...Major Axis gate closed 6069 lbs(23kN); Major Axis gate open 1574 lbs(7kN)
General Use...Major Axis gate closed 8922 lbs (39.7kN); Major Axis gate open 2473 lbs(11kN); Minor Axis 2473 lbs(11kN) |
There is a strict QC procedure for each of our products, most popular items have been certified by CE and got CE certificates like self locking form snap hooks and of course, you can customize the color or engrave your company logo on it so as to make it easier to promote your brand.
Why choose us?
1. We are a big manufacture of snap hook s. All the processes are done by ourselves, such as mold, injection, mold, print, package, QC, patent, R&D.
2. We have a set of large perfect production equipment.
3. Our daily output is 10000PCS, So have the advantage of price and delivery date.
4. There is a big dept of R&D in our factory ,So we can accept your OEM&ODM.
5. Our products are of high quality, We have QC to make sure the quality of the products in every step during producing.
6. Our price are competitive, we have a set of large perfect production equipment , Our price are factory price.
7. Strict quality control standards with a highly qualified inspection department.
8. Continually upgrading and advancing our equipment to remain competitive.
9. Our main goal is TOTAL CUSTOMER SATISFACTION while making your job easy!
Perfect management, to provide you with first-class products.
Complete testing equipment, to provide you with reliable quality products.
Integration of factory and trade, to provide you with a better service.
Almost all of our products are granted with TUV honor to meet your requirement of quality. We provide products of Premium quality and best service to ensure your competitive power.
Thanks for choosing Fosunsafety.
Zhangjiagang FoSun Safety Equipment Co., Ltd. is located in the beautiful and rich, economically developed city along the Yangtze river - Zhangjiagang. With Shanghai to the east and Nanjing to the west, North pillow Yangtze River, we enjoy convenient water and land transportation. Our factory was founded in 2005, with over 10 years' experience, we have established a complete and scientific quality management system. Meanwhile, we are committed to manufacturing and developing, safety hooks, carabiners, d-rings, buckles and rope-grabs. In the last years, we have been working hard and getting outstanding achievements, most popular items have been certified by CE and got CE certificates like self locking form snap hooks.
We have a strong supply capacity. Like G9120, we can offer 1000000 pieces /year. The whole producing process, including the design, research, development and testing, is done in our company. We also have a provision to make products according to your special require and have many facilities in-house to ensure quality and on-time delivery.
For first-class products quality, efficient and attentive services, and great added value, we have earned great reputation and support from customers worldwide. Besides, we do not only manufacture products designed by us but also welcome customers' designs, OEM and ODM items. We are looking forward to having chance to cooperate and build business relationships with you.
Set up in 2005
The first connectors manufacturer in China with brand "FOSUN".
Over 10 years of experience in this field;
Business Range

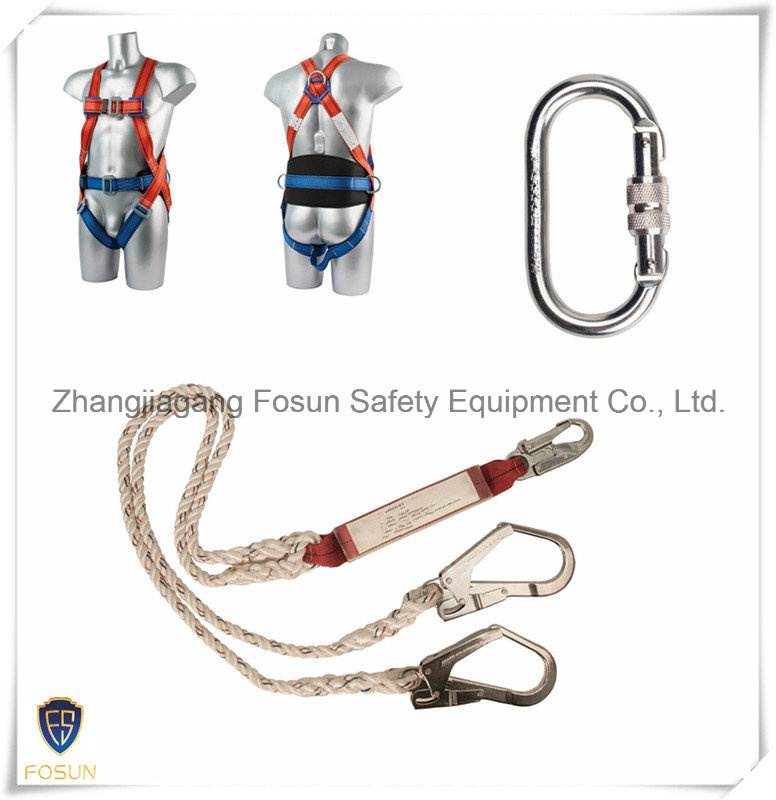

- All safe belts hardware accessories
- Stamping & Forging
Staff: Around 45 in total
Building Area: Around 5, 000 Square Meters
