Home Toolbuy Products Ce En12966 Trailer Mounted RGB Mobile Advertising LED Displays

Ce En12966 Trailer Mounted RGB Mobile Advertising LED Displays

Ce En12966 Trailer Mounted RGB Mobile Advertising LED Displays
Price: US $ 1500-11980/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Contact Supplier
OPTRAFFIC CO., LTD.
Showroom Product Company Profile
Prod Model: FC-VMS
Screen Size: 2240X1280mm
Pixel: 28*48 Full Matrix
Power Input: 240V
Trailer Structure: Hot Galvanized Steel
Draw Bar Length: 800mm-1400mm
Warranty: 2 Years
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 10mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 180W / m²
Pixel Density: 10000 dot / m²
Scanning Mode: 1/4 Scan
Display Type: LED Video Display
Application: Advertising
Certification: RoHS

Product Description

THE INDUSTRY LEADING CHINESE MANUFACTURER
TRAILER MOUNTED MOBILE ADVERTISING LED DISPLAYS

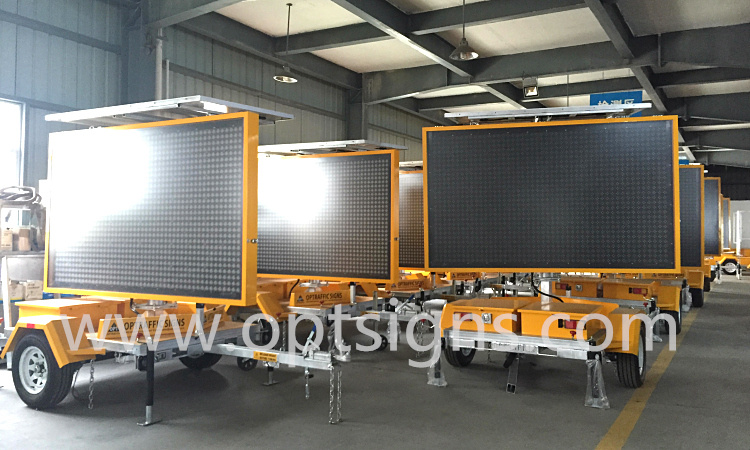

Optraffic's Full Color Portable LED Display Trailer are made to the highest quality standards in our ISO9001:2008 qualified manufacturing facility. You can design and create any colorful traffic message with graphic symbols, text or graphics combined, make multiple message screens and even create simple animations with amber or 5 colors.


Optraffic's Amber, and/or Color traffic used Portable LED Displays are manufactured with innovative technology popularly used for traffic management, council & constructional engineering, mining industry, store advertising and public notice of upcoming events like large meetings and sport events.

STANDARD SIZE OPTIONS

TYPES

DISPLAY
SIZE mm(in.)

TRAILER
SIZE mm(in.)

HEIGHT
mm(in.)

DISPLAY
WEIGHT

TRAILER
WEIGHT

A SIZE

1600(63.0")W

990(39.0")H

3030(119.3")L

1700(66.9")W

2390(94.1") ~

3390(133.5")

100kg

(220lbs.)

400kg

(880lbs.)

B SIZE

2240(88.2")W

1280(")H

3800(149.6")L

2050(80.7")W

2600(102.4") ~

4270(168")

180kg

(396lbs.)

650kg

(1430lbs.)

C SIZE

2560(102.4")W

1600(63.0")H

3800(149.6")L

2050(80.7")W

2630(103.5") ~

4400(173.2")

200kg

(440lbs.)

650kg

(1430lbs.)

A multiple of Variable Message Signs SIZES and OPTIONS are available.

ItemLED ConfigurationModule SizeModule ResolutionDriving MethodRefresh RateAverage ConsumptionLED ResourceControlEnvironment
P3.91RGB or Upon Request250mm*250mm64*641/16 Scan1920410W/SQMSMDRemote or LocalOutdoor
P4.81RGB or Upon Request250mm*250mm52*521/13 Scan1920302W/SQMSMDRemote or LocalOutdoor
P5RGB or Upon Request160mm*160mm32*321/8 Scan1920390W/SQMSMDRemote or LocalOutdoor
P6RGB or Upon Request288mm*288mm48*481/8 Scan1920378W/SQMSMDRemote or LocalOutdoor
P8RGB or Upon Request320mm*320mm40*401/4 Scan1920343W/SQMSMDRemote or LocalOutdoor
P10RGB or Upon Request320mm*320mm32*321/4 Scan1920343W/SQMSMD/DIPRemote or LocalOutdoor
P16RGB or Upon Request320mm*320mm20*20Static8000250W/SQMSMD/DIPRemote or LocalOutdoor
P20RGB or Upon Request320mm*320mm16*16Static8000200W/SQMDIPRemote or LocalOutdoor
P25RGB or Upon Request400mm*200mm16*8Static800040W/SQMDIP Remote or LocalOutdoor
P301/5 Colour455mm*113mm8*4Static800030W/SQMDIPRemote or LocalOutdoor
P401/5 Colour365mm*182mm8*4Static800015W/SQMDIPRemote or LocalOutdoor
MoreUpon Your RequestPLEASE INQUIRE WITH OUR CUSTOMER SERVICE FOR BEST SOLUTIONSRemote or LocalOutdoor

OPTRAFFIC VMS FEATURES

System & OperationMachinery & StructureEnergy Saving & Safety
  • Fully Remote Program via 3G and Internet.
  • Local Programming via Wi-Fi & USB connection
  • GPS tracking System
  • Real time Feedback
  • SMS Alert Systm
  • Unlimited Frames Available
  • 20+ year Anti-corrosion Hot-galvanized Trailer
  • Hydraulic Lifting System
  • Heavy-duty Jacks, double disc Brake, and Tail light Applications
  • 360° rotatable Display
  • Safety Lock Accessories
  • Continuous Working Performance
  • High quality & Long lifetime LEDs
  • Over-charge protection & High efficienct Regulator
  • Control System have short-circuit Protection

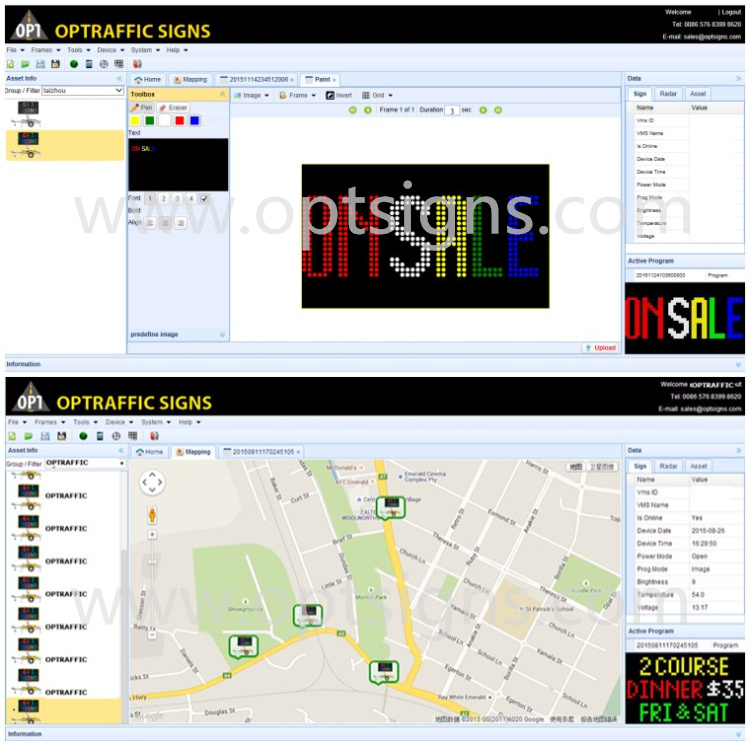

OPTRAFFIC WEB SYSTEM

Optraffic's P10 Outdoor Full Color LED Display Trailer are developed under our WEB SYSTEM with the lastest technology. You may control all the devices at once, track the device location, find the real-time device status of voltage, local time, temperature and more.

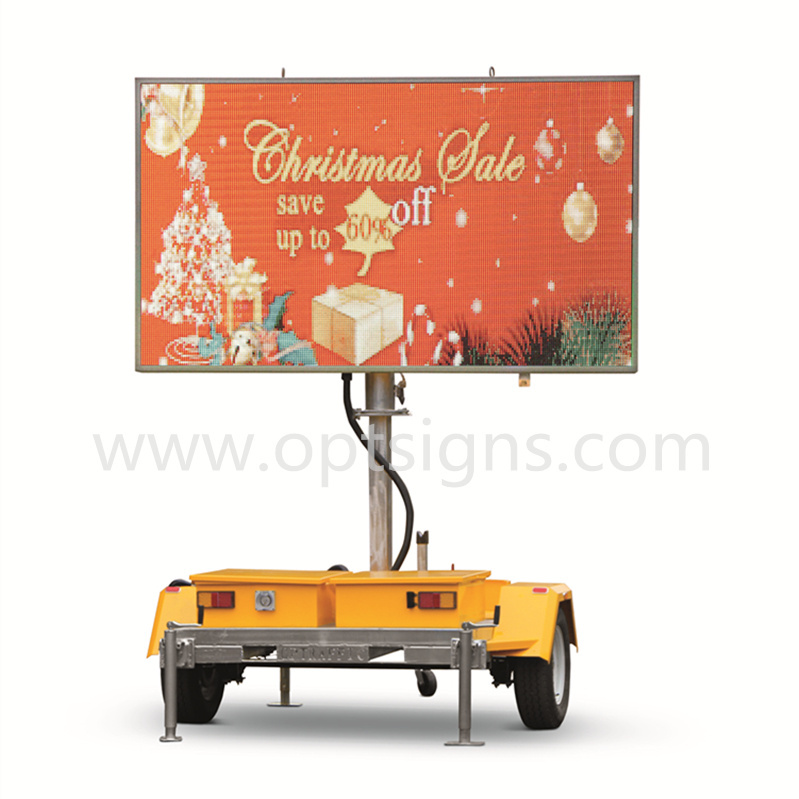

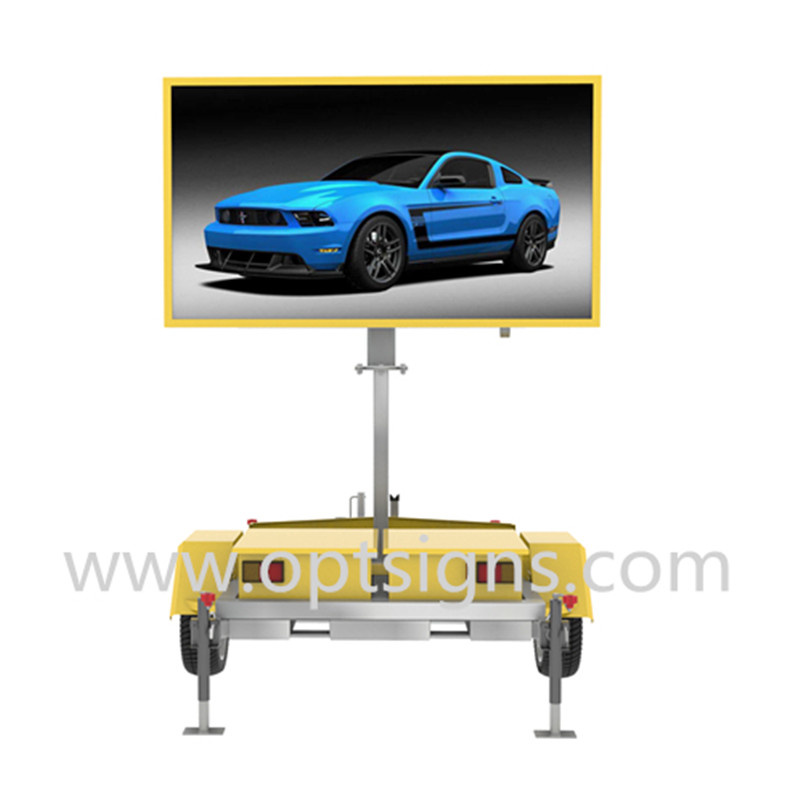

PRODUCT SHOW
OPT Mobile Led Screen Trailer are all wind-loading approved, double layers trailer allows to be forklifted, and also heavy duty standard couplings allows our VMS to be towed by most vehicles, OPT variable message signs must be your best choice for using outdoors.
LED video display advertising trailer supplied by OPT are available both for full remote controlling and on-site programming via phone, tablet, laptop and computer, OPTRAFFIC provides easy-to-operate software, and supply most convenient service to our esteemed customers.

MAINTENANCE & WARRANTY
Optraffic's Outdoor Led video display  is under 2-year quality warranty, and designed with Maintenance-free batteries, also the Lamps and shroud are easily replaced.

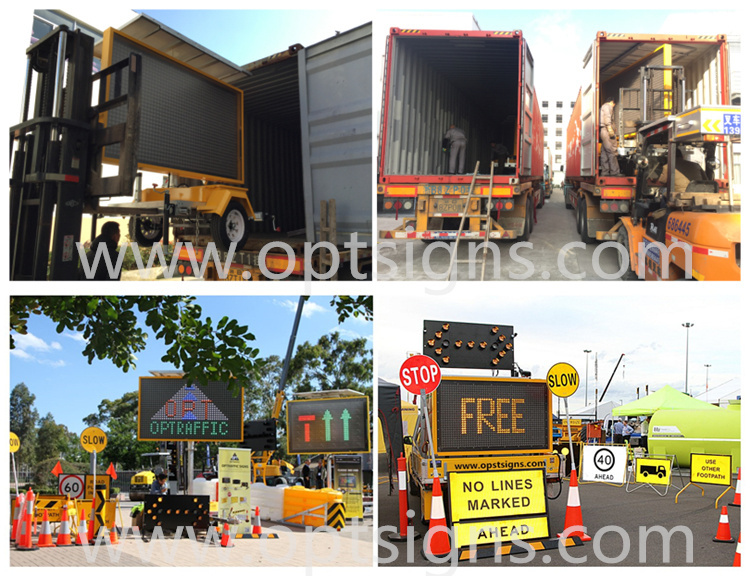

LOADING & EXHIBITION
Optraffic has been attending many Industry Exhibitions being held in USA, CA, UAE, EU and Pacific Area, and we're enjoying a good reputation of our Most Up-to-date Products.

PRODUCT CERTIFICATES
Optraffic is ISO9001 qualified manufacturer, and our product have been certified for CE EN12966 and AS4852.2.
Established in 1994, OPTRAFFIC is an ISO9001 certified, passionate and ambitious company that manufactures the Christmas lighting and street lighting. In the past 10 years, we expanded our product range with Variable Message Sign, LED Traffic Signs, Arrow Board, Traffic Signals, LED Speed Radar Sign, Light Tower, and other traffic safety equipment. Our products are built with the highest standard, and complying to the CE, EN12966, RoHS, EMC, IP65 and AS/NZ Standard.

To catch up with our growth and variety customer demands, OPTRAFFIC had developed four departments in different areas, the R&D department in Hangzhou, manufacturing & assembly department and IT support department located at Tantou in a large facility, and also one head office in downtown, Tiantai, Zhejiang.

OPTRAFFIC is a value-added enterprise that prides itself on the consistency of eco-friendly manufacturing, innovative technology and business ethics.

We endeavored to keep up with the very latest LED technology, being the leader in this Industry and guarantee a wonderful experience for clients of using our product. In addition to just manufacturing, we also customize and develop software for our clients.

The team is always looking for innovative solutions to our products both in software and hardware design.
