Ce ISO Screw Elements and Screws Barrels for Extruder Machines
| Price: |
US $ 760-800/Pairs |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Pairs |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
TSE series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Customer Choice |
Product Description

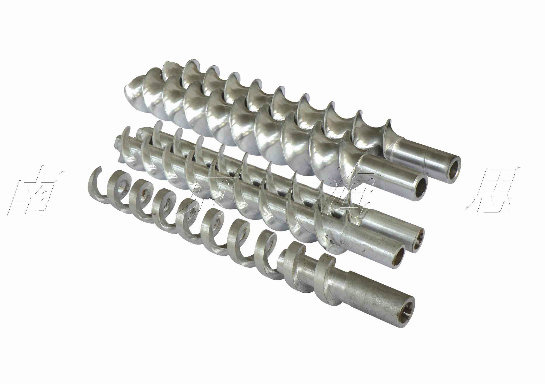

Screw barrel and element for extrusion machineSPECIFICATONS1. Extruder replace parts
2. High quality, high accuracy
3. Screw: W6Mo5Cr4V2.38CrMoAl. SKD11. SACM645 etc
4. OEM accepted according to your drawing
Our machine types for:1. Co-Rotating Parallel Twin Screw Pelletizing Extruders
2. Single Screw Pelletizing Extruders
3. Die Face Cut (Air Cooling) Pelletizing Extruders
4. Double Stage / Double Degassing Recycling Extruders
5. Crushers, Mixers, Storage Tanks, Vibrators, Granulators, Blowers
6. Extruder spare parts
Extrusion Screws enable you to manimize extrusion throughput, product quality and component life.
It delivers higher throughput at lower melt temperature than earlier barrier barrier designs and has proves its benefit in processing polyolefins.
PET,and PLA in various extrusion and blow molding processes.Parameter
Mode | Screw Diameter
D(mm) | Screw Length(mm) | L/D | Screw Rater
N(r/min) | Motor Power
P(kw) | Torque
T(N.m) | Torque
Lvel
T/N3 | Capacity
Q(kg/h) | Weight(kg) | Dimension
(m) |
| SHJ-20 | 22 | 150 | 32-44 | 600 | 5.5 | 43 | 7.5 | 0.5-10 | 1000 | 1.7*0.5*1.8 |
| TSE-30A | 31 | | 32-48 | 500 | 11 | 105 | 5.9 | 5-30 | 1500 | 2.4*0.63*2 |
| TSE-30B | | 600 | 15 | 119 | 6.7 | 5-40 |
| SHJ-35A | 35.6 | | 32-48 | 600 | 15 | 119 | 4.4 | 20-60 | | |
| TSE-40A | 41 | 160 | 32-64 | 400 | 22 | 263 | 6.4 | 65-110 | 3000 | 2.9*0.65*2 |
| TSE-40B | 41 | 160 | 32-52 | 600 | 30 | 239 | 5.8 | 90-150 |
| SHJ-50A | 50.5 | | 32-52 | 500 | 45 | 430 | 5.4 | 135-225 | | |
| TSE-52B | 51.5 | 210 | 32-64 | 600 | 55 | 438 | 5.5 | 225-250 | 3000 | 3.8*2*0.69 |
| TSE-52C | 51.5 | 210 | 32-64 | 600 | 75 | 597 | 7.5 | 200-300 |
| SHJ-65A | 62.4 | 240 | 32-52 | 400 | 75 | 895 | 6.3 | 180-250 | 4000 | 4.2*0.67*2.2 |
| 500 | 75 | 716 | 5.1 | 180-250 | 4000 | 4.2*0.67*2.2 |
| TSE-65B | 62.4 | 240 | 32-64 | 600 | 90 | 716 | 5.1 | 200-300 | 4000 | 4.2*0.67*2.2 |
| SHJ-75A | 71 | 290 | 32-56 | 400 | 90 | 1074 | 5.0 | 225-350 | 4000 | 4.8*0.78*2.3 |
| 500 | 110 | 1050 | 4.8 | 250-450 |
| TSE-75B | 71 | 290 | 32-64 | 600 | 132 | 1050 | 4.8 | 350-550 |
| TSE-75D | 71 | 290 | 32-64 | 60O | 220-250 | 1990 | 9.2 | 500-1000 |
| TSE-95A | 93 | 360 | 32-64 | 500 | 250 | 2387 | 5.0 | 600-1000 | 4000 | 6.2*0.87*2.4 |
| TSE-95B | 93 | 360 | 32-64 | 600 | 315 | 2506 | 5.3 | 800-1200 |
| TSE-135A | 133 | | 32-64 | 500 | 750 | 7162 | 5.38 | 1500-2250 | 4000 | |

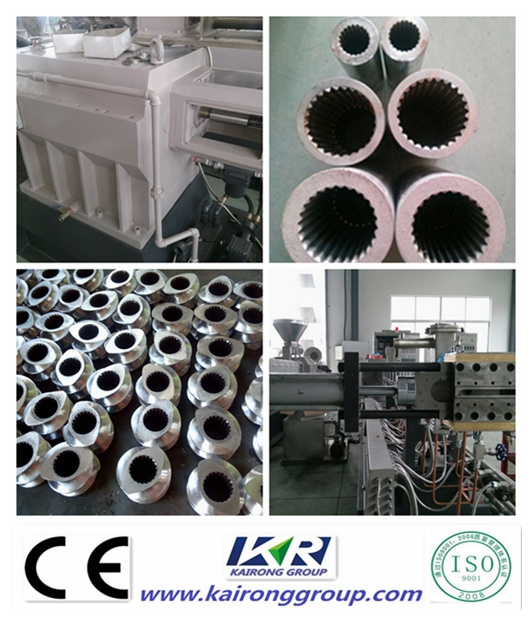

Barrel sections are available as:Closed barrel section
Barrel section with opening for material feed or for devolatilization
The processing section is provided with stainless steel plates as a protection against
Accidental contact.
Screw Elements: High-speed steel W6Mo5Cr4V2, nitrogen treatment.
Screw Shaft: High performance alloy steels, 40CrNiMoA; With standing high load, EtcDescriptionThe inter meshing screws co-rotate and wipe each other with narrow clearance so that
No residues are left in the screw flight and clean effort is thus reduce.
Screw elements with various pitches and lengths
Kneading blocks with various angles ofstagger, numbers ofkneading disks and disk
Widths.
Screw tips to fix the screw set axially
Gear teeth connection to ensure power flow between the screw shaft and screw
Elements.Packaging Pacakge: Wooden case or Using Anti-rust oil processing, then use stretch film cover extruder against moisture damage.
