Prod Model: |
DDML009 |
Centres: |
72mm |
Forend: |
Ss304 |
Stricke Plate: |
Ss304 |
Latch Bolt: |
Ss304 |
Dead Bolt: |
Ss304 |
Type: |
Key Lock |
Style: |
European |
Shape: |
Mortise Door Lock |
Anti-theft Standard: |
A |
Part: |
Lock |
Door Thickness Fits: |
35-50mm |
Lock Cylinder Length: |
70mm |
Usage: |
Channel Lock |
Material: |
Stainless Steel |
Backset: |
55-60 mm |
Product Description

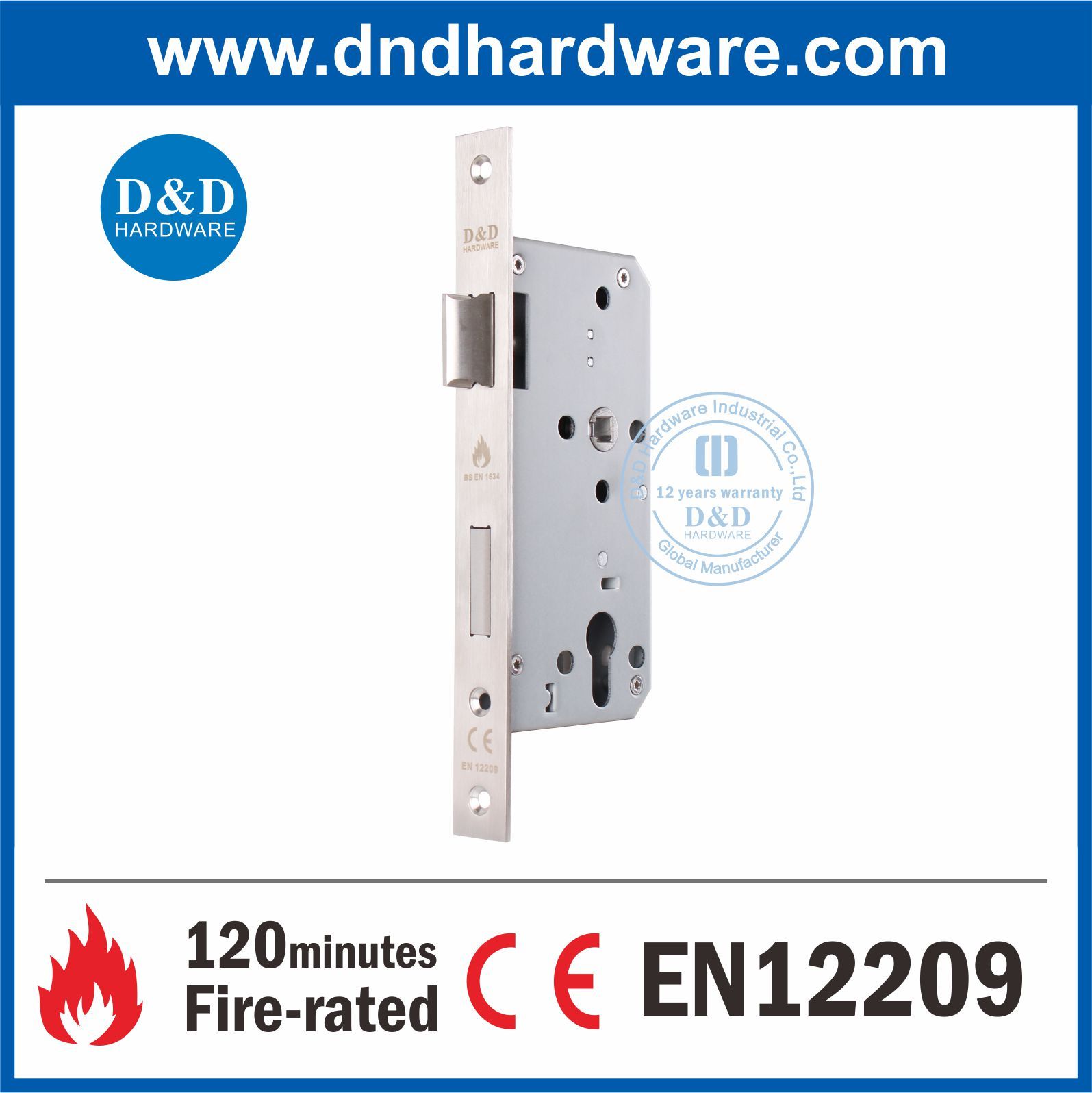

Ce Mortise Door Lock for Fire Rated Door

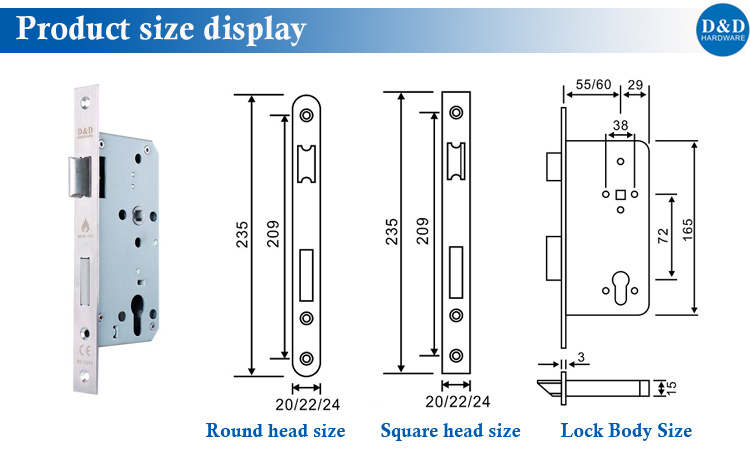

Product Description Product name | Ce Mortise Door Lock for Fire Rated Door |
Certification | CE EN 12209 Grade 3,200,000 test cycles ,EN1634: 240 Min fire rated ,CE Classification:3X910G3BC20 |
Product Model | DDML009 |
Material | Galvanize steel case , Stainless steel 304 of Latch bolt , Dead bolt |
Finish | SSS , PSS , PVD , AB , AC |
Distance | 72 mm |
Backset available | 55mm , 60mm , 70mm , 80 mm |
Forend Shape | Round Head , Square Head |
Suitable For | Wooden door, Metal door, Interior door, fire door, swing door . |
Packaging & ShippingCe Mortise Door Lock for Fire Rated Door
MOQ | 500 PCS |
Package | 1pc/polybag , white box / color inner box , Standard export Carton . |
Sample time | 5-7 working days |
Production lead time | 30-35 days normally |
Shipping Port | Jiangmen , China / Shenzhen , China |

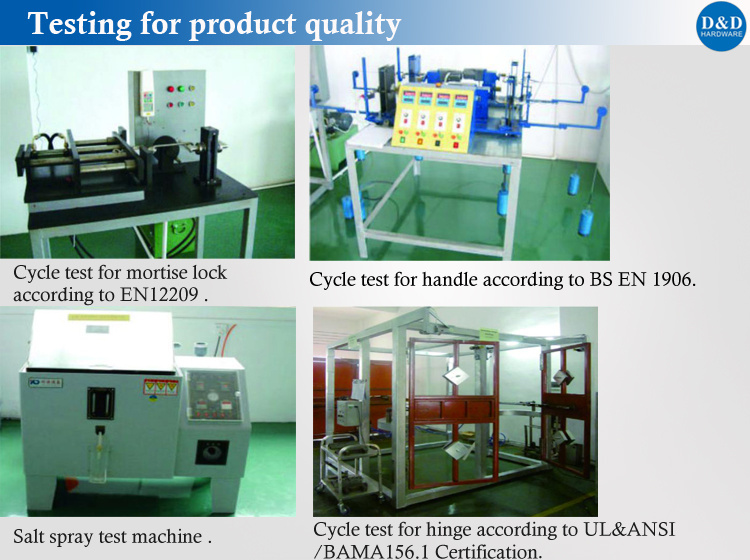

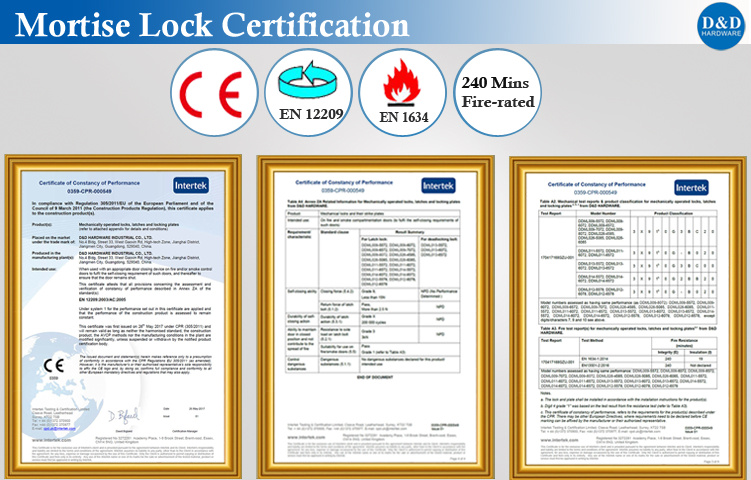

Certification & Test
Company Information
Our ServicesD&D Hardware offers a combination of products to suite the individual Building, meeting not only the Requirements for Design and Function, but also the desired Budget.
More door hardware items include:
1. Stainless Steel Door Hinge- UL Listed & Fire Rated & CE Certificate
2. Door Locks - CE EN12209 Fire Rated
3. Stainless Steel Door Handles- BS EN 1906
4. Panic Exit Device- UL Listed & CE Certificate
5. Door Controls - CE BS EN 1154
6. Glass Hardware / Bathroom Hardware
Contact us
FAQCe Mortise Door Lock for Fire Rated Door
@_@
Q:What certificate you have?
A:We have CE and UL cerfificate, all our product design follow up the international standard, such as the EN/CE, UL, ANSI standard.
Q : Do you accept OEM or ODM?A: Yes, We are professional in OEM and ODM. now , Cooperating with famous brands for OEM & ODM.
Q:Do you have quality system?
A:Yes, we have. We have set up our quality system and well controlled our production quality as per
the instructions and requirements in it and well-control each procedure throughout the mass-production.
Q: What's the guarantee of your products?
A : 5 Year Mechanical Guarantee.
Q: What's the stainless steel Grade you are working now?
A: We are working mostly in SUS304 and SUS316, some items can be SUS201 as well.
Q: Could you send me sample before I place an order?
A: Yes, offer 3 pcs free samples for your evaluation, you provide the Courier account for freight collect.
Q: Are your company factory or trading company?
A: We are a SGS Audit factory, over 10 years manufacturing experience in architectural hardware.
Q:What is your payment terms ?
A:T/T, D/P, Western Union, L/C
Q: How can I get the latest prices?
A: Send requirements to us by mail or calling , we will reply you in 24 hours. D&D offer not only door hardware product but also Door Opening Solution.
D&D HARDWARE INDUSTRIAL Co., Ltd has specialized in Architectural Hardwares since 2010 which is Located in Jiangmen city, Guangdong province near HongKong and Macau.
We are specialized in Developing and Producing Stainless Steel hardware products for Wooden Doors& Metal Doors, such as Door Handles, Door Hinges, Door Stopers, Door Bolts, etc.
All our products design follow up the international Standard, such as the BS EN/CE, UL, ANSI, BHMA standard.
Our company is capable to produce Fire-Rated Door Hinge authorized by UL, UL file number R38013.
Moreover, we are also able to produce door handles eligible to the Grade 4, and burglar resistant( Security plate ) of EN1906.
We continue to improve the processing techniques and upgrade the processing equipments, So that we can keep on providing higher quality products with more competitive price.
D&D principle-"Quality is our life" -Working OEM brands for KABA, ASSA ABLOY, GEZE, Ingersoll Rand, benefiting from her rich experience for famous brands making, D&D has established business relations with customers from America, Europe, Southeast Asia, Japan and the Middle East.
