| Prod Model: |
068 |
| Task: |
Program |
| Structure: |
Combination |
| Mathematical Model: |
Linear |
| Signal: |
Continuous |
| Function: |
Automatic Control |
| Certification: |
CE |
| Condition: |
New |
| Customized: |
Customized |
| Material: |
Copper |
Product Description

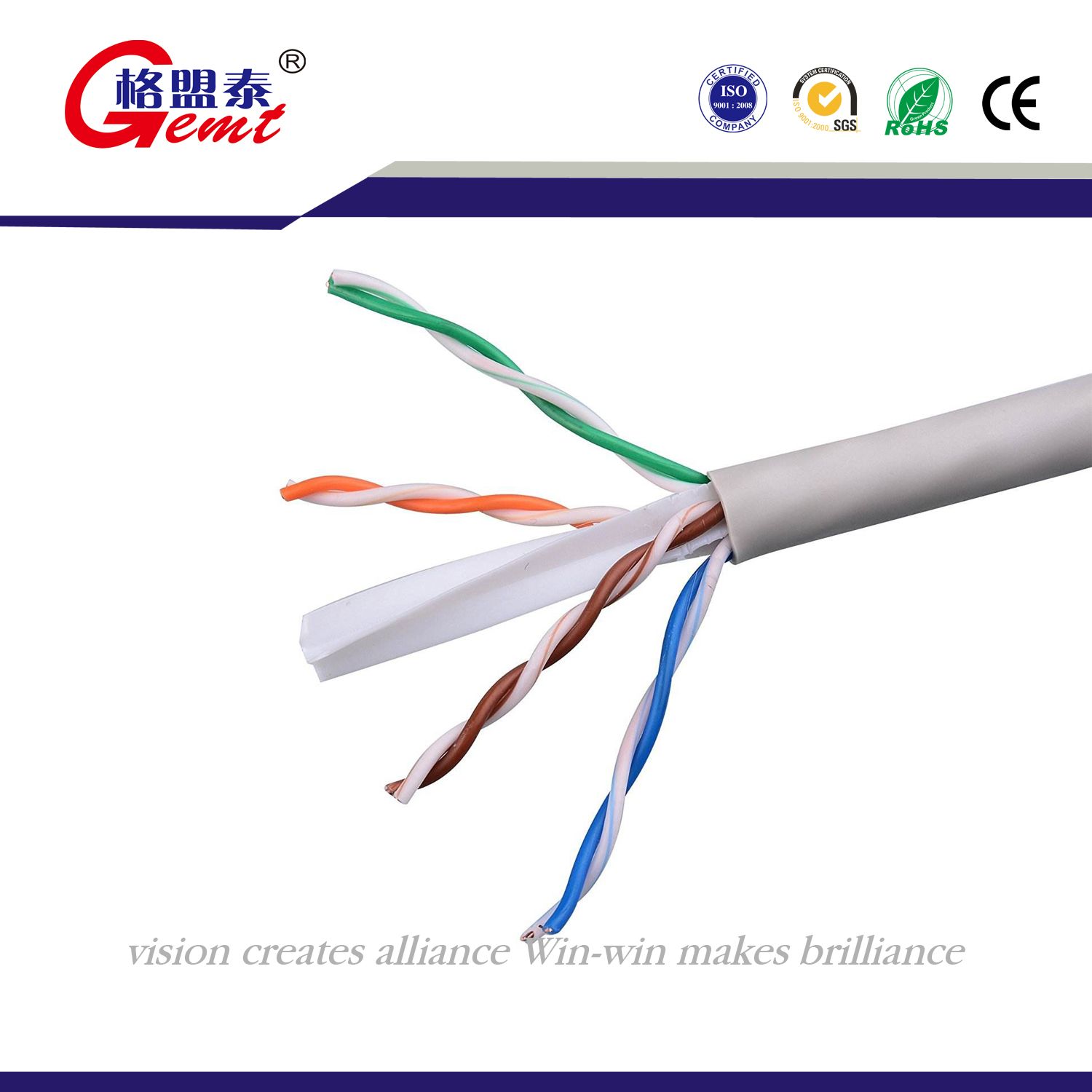

CE UTP Cat6 Lan Cable/Networking Cable1. Description:1)Product Description
Rated temperature: 60, 75
Bare solid of stranded copper conductor
Colour-coded PE insulation
Rip cord(optional)
PVC or LSOH jacket
Flammadbility Grade: CMX, CM, CMR
Standard: UL444, TIA/ETA568B
2) Construction
Conductor: 0.51mm Bare Copper
Insulation: 0.91mm HDPE
No. Of Pairs: 4
Jacket: 5.2mm PVC
3) Characteristics
Impedance: 100+/-15 Ohms
Velocity of Propagation: 65%
SRL: >=20dB (1 to 100 MHz)
>=17dB (100to 350 MHz)
2. Specification:1)Specification: 4P
2)Rated Temperature: 60ºC or 75ºC
3)Unshielded twisted pair:
Conductor: 26AWG or 24AWG Stranding or Solid Bare copper Insulation:HD-PE
4)Unrip rope:optional
5)Jacket: PVC or LSNH
6)Impedance:100±15%Ω at 1~100MHz
7)Reference Standard: YD/T 1019-2001,ISO/IEC11801,ANSI/TIA/EIA-568B,UL444
8)Print Legend: CM or CMR
Cable Assembly Specification:| Shape | Conductor | Insulation | Core Number | Jacket |
| AWG | Specification | Material | Thickness
(NOM.mm) | Material | Thickness
(NOM.mm) | OD
(NOM.mm) |
| Round | 28 | 1/0.404 | HD-PE | 0.18 | 4P | PVC or LSNH | 0.55 | 4.8 |
| 7/0.16 | HD-PE | 0.18 | 4P | PVC or LSNH | 0.55 | 5.0 |
| 24 | 1/0.511 | HD-PE | 0.18 | 4P | PVC or LSNH | 0.55 | 5.4 |
| 7/0.203 | HD-PE | 0.18 | 4P | PVC or LSNH | 0.55 | 5.5 |
| Flat | 30 | 7/0.10 | HD-PE | 0.13 | 4P | PVC | 0.30 | 1.75*6.2 |
| 28 | 7/0.127 | HD-PE | 0.13 | 4P | PVC | 0.30 | 1.90*7.0 |
| 24 | 7/0.203 | HD-PE | 0.18 | 4P | PVC | 0.30 | 3.0*9.0 |
3. Why Choose Us(GEMT): G--Guaranteed quality
E--Effective service
M--Mutual benefit
T--Top technique
GEMT Cable, Friend Reliable
4. Company Information:

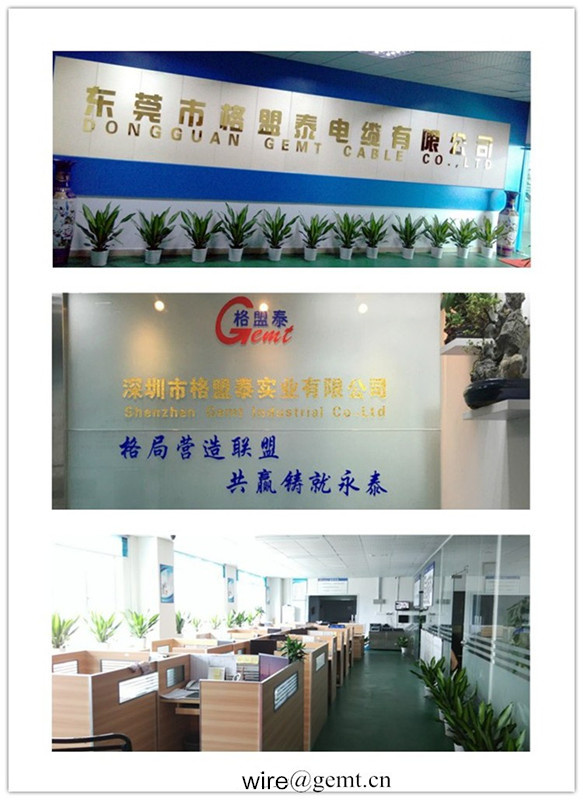

Company:

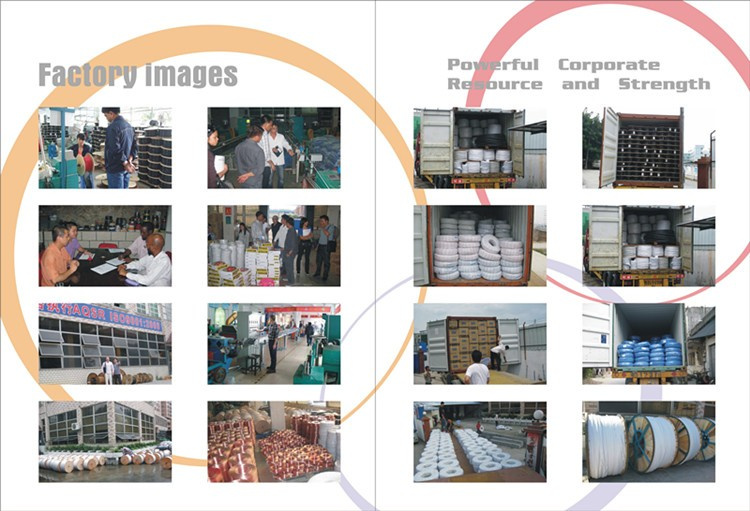

Factory:
Trade Show:
Packing & Shipping:

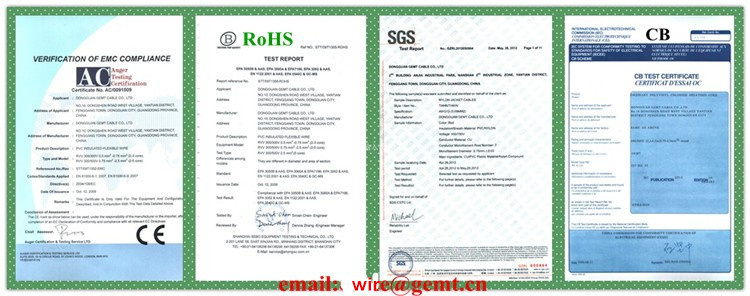

Certification:
5. FAQ:Q: Can I have a sample?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
Q: How long is the lead time?
A: Sample needs 1-2 days; mass production needs 15-30 days.
Q: Do you have the MOQ limit?
A: Our MOQ is 100-10000meters, depending on the products;
Sea Port: FOB Shenzhen.
Q: Do you provide OEM or ODM services?
A: Yes, we do.
Q: Do you offer guarantee for the products?
A: Yes, we offer five years guarantee for the products.
WARMLY WELCOME TO VISIT TO OUR FACTORY AND SHOWROOM , AND KNOW MORE ABOUT US ~~~~
PLS FEEL FREE TO
CONTACT ME : VERA ZHUANG
TEL:+86-13415529380
Gemt Cable Co., Ltd., is a professional supplier of Power Cable, Coaxial Cable, Data Cable, Video Cable, HDMI Cable, Wire Cable, LAN Cable, Communication Cable, Electric Wire, Electric Cable, XLPE, Networfking Cable, Alarm Cable. Located in Yantian Village, Fenggang Town, Dongguan City, China. Mainly engaged in Wire & Cable's manufacture. It is integrated with R & D, Purchase, Manufacture, Promotion and Marketing.
The company has advanced production lines and inspecting equipments. With a group of professional engineers, by strictly following to GB and IEC standards and carry out ISO90001 rigorously, all products produced in this factory is pass the CCC, CE CB RoHS Certifications.
Our tenet is "Specialized quality, Sincere service",
From customers' interest, we are dedicated to provide the high quality products and first-class after-sale service, Since all brands that belong to our company enter into market, they are receiving a lot of user's trust and praise
Base on the persisting dedication of Gemt staff, the company will continue to convergence of the industry technology, management, marketing and other elites, dedicated to the development of power industry, as always, join hands in creating a brilliant tomorrow!
