| Prod Model: |
SLTF1211001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Sltf1211001 |
| Diameter In Mm: |
280 |
| Diameter In Inch: |
11 |
| Voltage(V): |
12 |
| Current(a): |
8 |
| Speed(Rpm): |
2700 |
| Airflow(M^3/H) @100PA: |
700 |
| IP Rating: |
IP67 |
| Power: |
100W-300W |
| Application: |
Household, Industrial |
Product Description
1,Diameter in mm:130-450
2,Diameter in inch:5-15
3Voltage(V):6V-24V
4,Current (A):2A-12A
5,Speed(rpm):1000-9000
6,Airflow(m^3/h) @100Pa:260-10000
7,IP Rating: 67

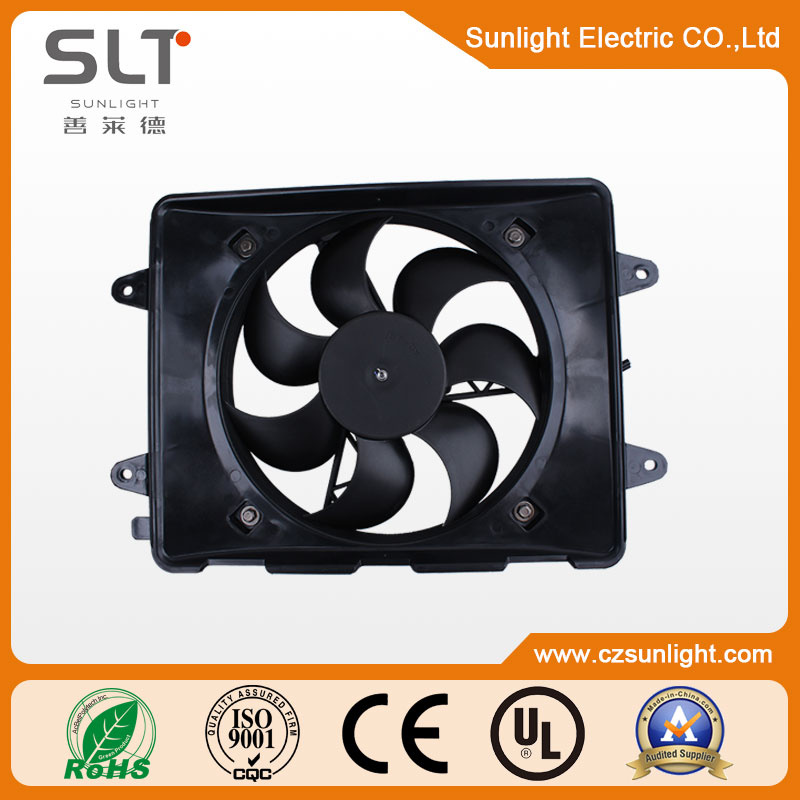

Advantage of Ceiling Condenser Cooling Electric Fan Apply for Building Industry
1,Low power consumption,
2,Fast heat dissipation, low noise,
3,Environment care:
Technical data of Ceiling Condenser Cooling Electric Fan Apply for Building Industry
| NO. | Part Number | SLTF1211001 |
| 1 | Diameter in mm | 280 |
| 2 | Diameter in inch | 11 |
| 3 | Voltage(V) | 12 |
| 4 | Current (A) | 8 |
| 5 | Speed(RPM) | 2700 |
| 6 | Airflow(m^3/h) @100Pa | 700 |
| 7 | IP Rating | IP67 |
| Part Number | Diameter in mm | Diameter in inch | Voltage(V) | Current (A) | Speed(RPM) | Airflow(m^3/h) @100Pa | IP Rating |
| SLTF1211001 | 280 | 11 | 12 | 8 | 2700 | 700 | IP67 |
| SLTF1205001 | 130 | 5 | 12 | 4 | 5000+/-200 | 260 | IP67 |
| SLTF1212001 | 300 | 12 | 12 | 10 | 2700 | 1000 | IP67 |
| SLTF1208001 | 190 | 8 | 12 | 8 | 3200 | 540 | IP67 |
| SLTF1216001 | 400 | 16 | 12 | 20 | 3200 | 2400 | IP67 |
| SLTF1212002 | 300 | 12 | 12 | 10 | 3200 | 1000 | IP67 |
| SLTF1213001 | 330 | 13 | 12,24 | 10 | 3200 | 1050 | IP67 |
| SLTF1214001 | 356 | 14 | 12,24 | 12 | 3200 | 1380 | IP67 |
| SLTF2406002 | 147 | 6 | 24 | 4 | 2700 | 260 | IP67 |
| SLTF1221001 | 521 | 21 | 13 | 24 | 3200 | 3000 | IP67 |
Components of the axial fan:
1,wheel hub ;
2,gearbox;
3,cabin cover ;
4,coupling;
5,electronic control system;
6,generator ;
7,cooler;
8,pump station;
9,yawing driven;
10,yaw brake;
11,yaw bearing;
12,foundation;
13,elastic base;
14,blade
Application of Ceiling Condenser Cooling Electric Fan Apply for Building Industry
1,Office Machine
2,Household Appliances
3,Food Industry
4,Industrial Machinery
5,Medical Industry
6,Building Industry
Axial Fan maintenance
1,Using environment should be keep clean and tidy,Fan surface should be keep clean,Inlet and outlet should not have the sundry.
2,Only can run of the fan is completely normal, s at the same time to ensure the power supply and voltage stability.
3,Fan in the running process if found to have abnormal situation, should immediately stop check
4,According to use environment conditions do not regularly to supplement or replace bearing grease.
5,Fan should be stored in dry environment, avoid motor be affected with damp .
Warning
We highly recommend not to use our fans in flammable and combustible environments.
Improper handling and wrong usage of the fan may cause injuries.
Packaging & Shipping
1,Inner packing(Waterproof plastic bag packing)+Outer packing(Carton packing)
2,Export wooden box packaging for products.
3,Other package as you required
About sunlight:
1,The company covers an area of 5000 square meters;
2,Modern workshops have advanced production lines and professional knowledge of assembly.
3,Excellent sales team and after-sales service
4,Professional technical team
5,Broad market:Europe(Germany....)America(America,Canada...)
Asian( Korea, Japan...)
FAQ:
A: What products that you will apply ?
Car, Beach buggy , Truck, Bus or others ?
B: What is your installation dimensions ?
The max size and diameter of the fan as your request.
C: What are the specifications of the DC motor ?
Such as voltage, speed.....
D: What's the request of the operation temperature ? As usual, the temperature is between -40 to 80.
E: What's your IP grade ? As usual it is IP67.
