| Prod Model: |
standard types also make according to your drawing |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Grade: |
Ys2t Yg10X |
Product Description
We supply all kinds of tungsten carbide discs, mainly used for paper, tobacco, rubber, plywood, hardwood, PCB, PVC, stainless steel, high manganese steel and PCB, PVC electronic circuit boards and and lamp tube, fiber cement board and other materials industry. Grades in: YG6A, YG8A, YG8X, YG8, YG10X, YS2T so on. These products require high precision, no glitches, no indentation phenomenon, so a larger cut of difficulty, To solve this problem, we have static pressing, HIP sintering greatly improve the physical properties of the product, polishing plating, so that when the blade cut, easy to wear and does not stick powder, reducing friction when cutting, greatly improving the accuracy and speed slitting, tool life extended, success for the user to save a lot of manpower and financial resources.
We also recommend suitable grades according to customer demand.
We make according to customer's drawings.

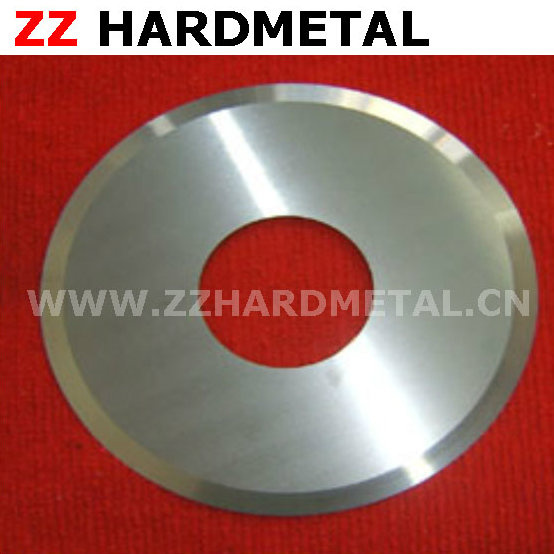

High precision circular disc cutter, round-cut blades (high wear / sharp / stainless)
1, Tolerance: High Availability to diameter (± 0.01) * Thickness (± 0.005) * inner diameter (H7) * balance (± 0.005)
2, Hardness: HRC64 ° ~ 66 ° And HRC68 ° ~70 °
3, Features: Cutting blade requires precision diameter, thickness, straightness, etc. Customized are also welcomed!
YG8 and YS2T are widely used for making carbide cutting disc. But other size can be offered by your requirement.
Grade properties:
YG8: High strength in use, impact and shock resistance higher than YG6, but wear resistance and cutting speed comparatively lower. Roughing of cast irons, non-ferrors metals and their alloys as well as non metallic materials at low cutting speed.
YS2T: Fine grade alloy, with high wear resistance, high bending strength, high resistance to bonding, high thermal strength. Machining of refractory alloys, stainless steel and high manganese steel, etc.
Ways to identify good carbide disc
1. Sound checking: Before installing the blade, hang the blade with fingers. Gently knock with a wooden hammer, listen to sounds, it is cracked if muddy sound, prohibited to use if cracked, in order to avoid accidents!
2. Running speed: Make sure the cutting speed is in or below 4800 rev/min.
3. Blade install: When installing, rotating shaft and blade center requires accurate alignment of the blade, clean the mechanical mounting surfaces, no cutting material, dust or other debris to be left on blades.
4. Install protective devices: You must install the protective cover (blades should baffle around the studio, steel, rubber and other protective equipment) before the blade running.
ZZ HARDMETAL was established in the year of 2007, We are specialized in tungsten carbide marketing over ten years. With stable products quality, professional service, competitive prices, our customers range over 50 countries and regions.
In the year of 2010, we set up our first Branch Company----ZZ WIDIA in Sao Paul, Brazil. Now ZZ WIDIA is the Sole Agent of several Chinese T-C factories in Brazil, The regular stock products include: Indexable inserts, end mills, cold forging dies, tungsten carbide strips and so on.
We have our own Lab for inspection and we are holding a tungsten carbide factory: Zhuzhou Old Craftsman Precision Carbide Co., Ltd, and at the same time, we have shares in several tungsten carbide factories and Precision-Processing factories, we had already built a very nice long-terms business relationship with lots of tungsten carbide enterprises.
We are familiar with almost all the products related to tungsten carbide, and we have very rich stock of moulds for production. Especially for Precision Processing products, customized products, products with special materials request, Tungsten carbide welding products and so on, we have unique advantage to produce
We are a professional Chinese manufacturer of tungsten carbide products. We work with nine cemented carbide factories by joint stock method. Each factory has their strongpoint products.
Factory 1: Inserts, shims, woodworking tools, saw tips, percussive drill tip.
Factory 2: Cold forging dies, carbide disc, carbide mining bits, plates, carbide tyre nailFactory 3: Carbide drawing dies.
Factory 4: Carbide burrs.
Factory 5: Carbide rods, carbide bars
Factory 6: Carbide balls & seats.
Factory 7: Carbide ceramic tile cutter.
Factory 8: Mining tools
Factory 9: Carbide powder
Depending on our talented engineers and skillful workers, we always provide our customers the products with good quality, competitive price, fast turnaround and reliable after sales service.
We own the specialized export company - Zhuzhou ZZ Import and Export Co., Ltd. Our products are exported to USA, Europe, etc. And got trust from our customers. Along with our company growth, we hope to build business with more company abroad.
My company export more than USD5, 000, 000 every year, have more than 300 cusotmers and many customers long term cooperation.
We ensure, based on my company high quality and service, you will never regret to choose my company.
We are waiting for you.
