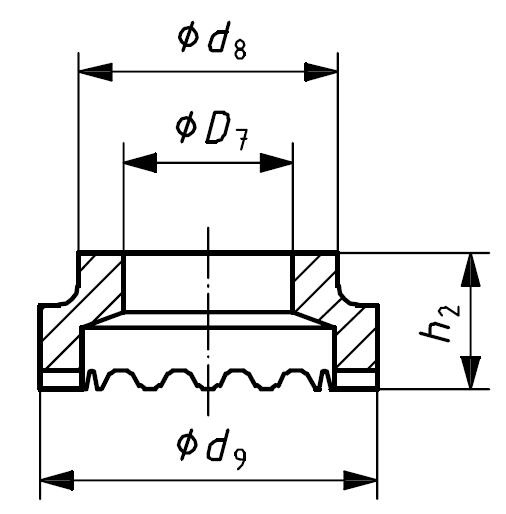

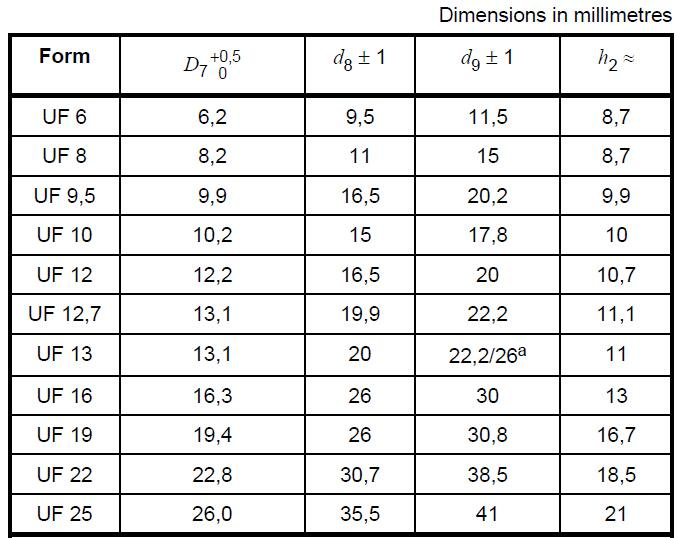

Ceramic Ferrule UF Type ISO13918
| Price: |
US $ 0.15/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T |
| Refractoriness (',℃): |
1580< Refractoriness< 1770 |
| Type: |
Refractory Material |
| Material: |
Silicon Carbide (',SiC) |
| Shape: |
Ring |
Product Description

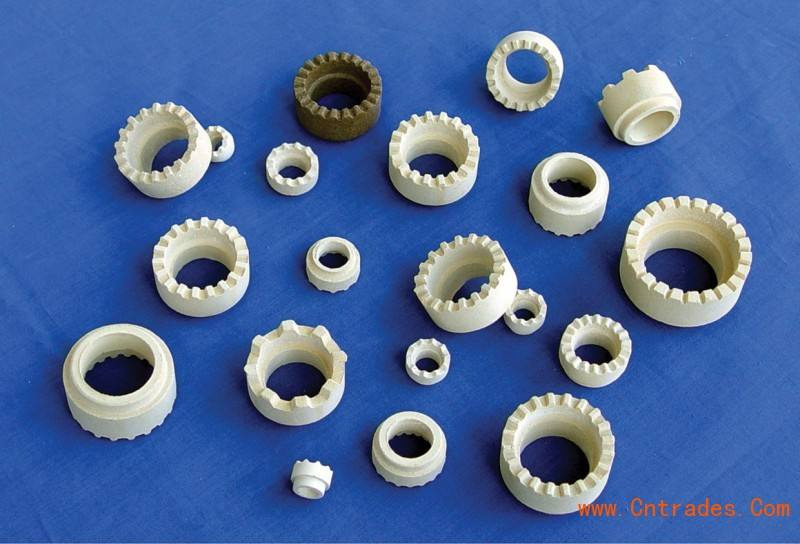

1.Descritpion of Industrial insulating electrothermal Cordierite Ceramic ferrule for stud weldingCordierite ceramic is one of the most popular ceramics for its properties of excellent thermal stability, high refractoriness, good chemical durability, low dielectric constant, and low thermal expansion.Cordierite ceramic is extensively used in important industrial applications such as micro electronics, refractory products, heat exchanger for gas turbines, thermal shock-resistant table ware, catalyst supports, and porous ceramics. Low-expansion cordierite is suitable for being applied at high temperature circumstance where a good thermal shock resistance is required.This unique property of cordierite is caused by the negative lattice expansion in c-axis direction,which provides excellent resistance to thermal shock as well as low thermal conductivity. 2.Features & Advantages of Industrial insulating electrothermal Cordierite Ceramic ferrule for stud welding1). Strong heating ability and high efficiency2). High density3). Fine surface4). Good thermal conductivity 5). Good heat-shock resisting ability 3.Application of Industrial insulating electrothermal Cordierite Ceramic ferrule for stud welding 1)Electric appliance industry2) Automotive industry3) Mechanical industry4) Engineer industry5) Other application with high requirement of no staining6) Other application use in liquid and gas 4.Specification of Industrial insulating electrothermal Cordierite Ceramic ferrule for stud welding | Item | Test Condition | Unit&Symbol | Cordierite ceramics |
| The main chemical ingredient | | | MgO, Al2O3,SiO2 |
| Bulk Density | | gm/cc | 2.5 |
| Maximum Use Temperature | | | 1000ºC |
| Water absorption | | % | 0 |
| Hardness | | HV | 800 |
| Bending Strength | 20ºC | Kgf/cm2 | 900 |
| Compressive Strength | 20ºC | Kgf/cm2 | 3500 |
| Fracture Toughness | K(I c) | Mpa m1/2 | - |
| Thermal expansion | | 1X 10-6/ºC | ≤2.0 |
| Thermal conductivity | 25ºC-30ºC | W/m.k | 1.3 |
| Thermal Shock Resistance | Tc | ºC | 250 |
| Dielectricity constant | 1MHz.25ºC | | 6 |
| Dielectric strength | | ac-kV/mm (ac V/mil) | 10 |
| Volume Resistivity | 20ºC | ohm-cm | > 1012 |
Hangzhou Dingmingshang Industry Co., Ltd., is located in Xiaoshan Economic and Technology Zone in Hangzhou City, China. The traffic is very convenient here. The investment of our factory is USD2, 500, 000. We have become a member of the following organizations: China Building Metallic Construction Association, China Mechanical general parts industry Association and China Fasteners Standardization Technique Committee.
We can produce hexagon nuts, bolts with large hexagon head, plain washers, and cheese head studs for stud welding. And we can also produce high strength bolts with large hexagon heads, high strength large hexagon nuts and high strength plain washers all for steel structures. The products can be produced by DIN, ISO, ASTM, ANSI, JIS, NF, and other standards. The strength grade can reach 4.8s-10.9s, and the steel structure can reach 8.8s -10.9s. Our products are widely used in the areas of steel structure, bridge, railway, regular boat, car industry, electric power and nucleus engineering items, etc.
