Ceramic Tile Cutting Diamond Segment Constraction Tools
Price: |
US $ 0.78-0.85/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
28/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
XG-400 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
40*3.6*15 mm |
Shape: |
Sandwich |
Diameter: |
400mm |
Weight: |
0.9kg/Set |
Quality: |
a-B-C Step |
Ce: |
ISO:9001 |
Market: |
America |
Materal: |
Diamond and Metal Power |
Application: |
Used for Granite Cutting Edge |
Set PCS: |
28PCS/Set |
Product Description

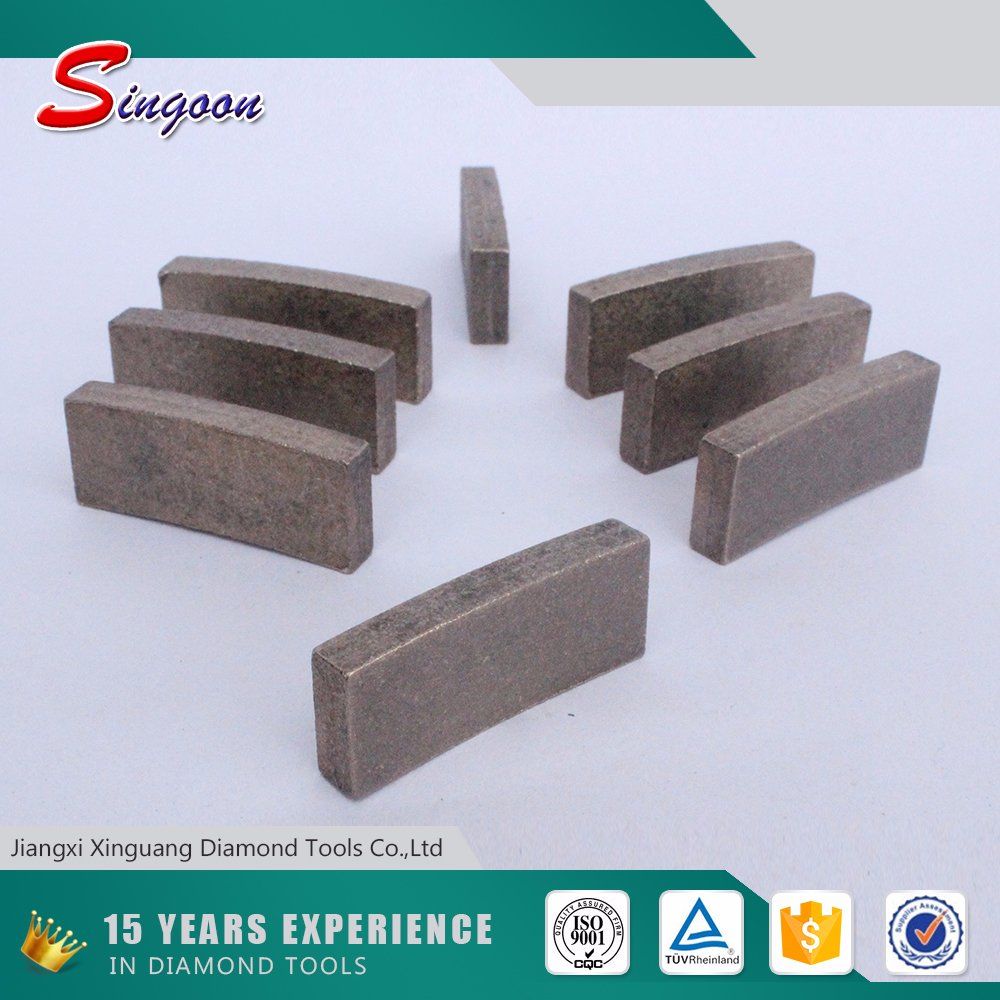

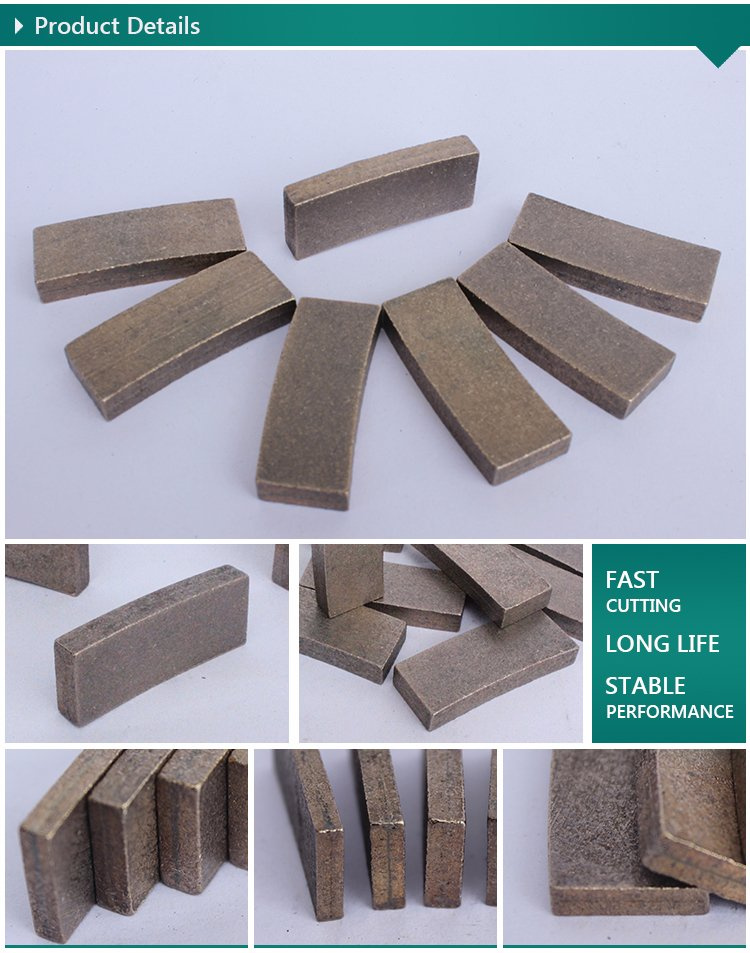

Ceramic Tile Cutting Diamond Segment Constraction Tools

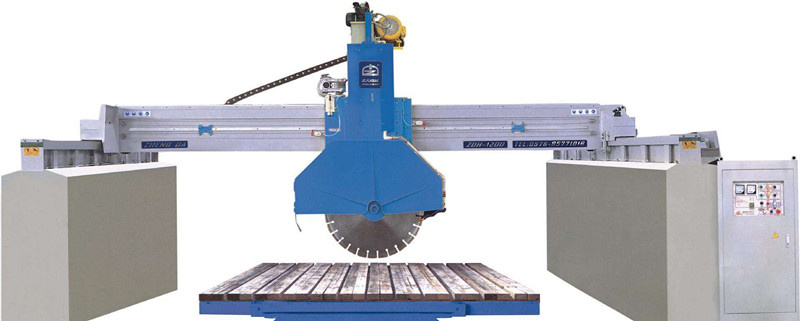

Product Description1. Used In 400MM Blade machine. Is for cutting stone edge.
2. Size:40*3.6*15 mm. 28 pcs/box. Sandwich shape.
3. Working Single Blade 400mm. .Cutting Granite.
4. All segment had been grind
5.one box weight is 0.9 kg/box.
7.segment is sandwich type. Total have 1 layer. Our Cutters Different Other Brand1. Open time :. Usually 7 hour -8 hour open.
2. Production Data: sult for America market
3. Total Production: 1 box Cut 8-15 days. Cut 1200m-1600m
4.Mix stone Cutting. :Cut Hard granite
5.Service of seaboard: Will send person to market when segment need service.
6.Attend America stone fair &Brazil stone fair and other fair every Year.
Our Advantage1. Professional: 15 Years experience in diamond tools industry.
2. Production : One of biggest Professional diamond Tools Manufacturer In the world.
3. Quality Control: All diamond segment Had been tested in different import stone before sell in the market.
4. Service : 8 years experience export bussiness, Own Factory+Own export company+Own sales Team +technology team.
diamond segments,saw segments, stone segments Size |
Diamond Blade | Diamond Segments | | Core Thickness | Pcs/set |
Diameter | SizeL*W*H) | | | |
250mm | 40*2.5*8/10mm | | 1.8/2.0mm | 18pcs/set |
300mm | 40*3.0*8/10mm | | 1.8/2.2/2.4mm | 21pcs/set |
350mm | 40*3.0*8/10mm | | 1.8/2.2/2.4mm | 24pcs/set |
400mm | 40*3.4*12mm | | 2.2/2.6/2.8mm | 28pcs/set |
450mm | 40*4.0*8/10mm | | 2.5/2.8/3.3mm | 32pcs/set |
500mm | 40*4.2*8/10mm | | 3.0/3.3mm | 36pcs/set |
550mm | 40*4.2*8/10mm | | 2.8/3.5mm | 38pcs/set |
600mm | 40*4.6*8/10mm | | 2.8/3.5mm | 42pcs/set |
700mm | 40*5.0*8/10mm | | 3.6/4.0mm | 50pcs/set |
800mm | 24*7*13mm | | 4.5mm | 58pcs/set |
900mm | 24*7*13mm | | 5.0mm | 64pcs/set |
1000mm | 24*7*13mm | | 5.5mm | 70pcs/set |
1100mm | 24*7*13mm | | 5.5mm | 74pcs/set |
1200mm | 24*6.5/7.5*12mm | | 5.5mm | 80pcs/set |
1300mm | 24*9*13mm | | 6.0mm | 88pcs/set |
1400mm | 24*9*13mm | | 6.5mm | 96pcs/set |
1600mm | 24*8.0/8.5*14mm | | 6.5mm | 108pcs/set |
1800mm | 24*10.8*13mm | | 7.0mm | 120pcs/set |
2000mm | 24*10.8*13mm | | 8.0mm | 128pcs/set |
2200mm | 24*11*13mm | | 8.5mm | 136pcs/set |
2500mm | 24*11*13mm | | 9.5mm | 140pcs/set |
3000mm | 24*11*13mm | | 10mm | 160pcs/set |
Jiangxi Xinguang Diamond Tools Co., Ltd. Was established in 2003 and is located in Poyang County, enjoying convenient transportation and beautiful environment. Our company covers an area of 13, 000 square meters and has 150 employees. We are specialized in diamond tools and have an annual production capacity of 300, 000 sets. Our company has rich experience in the diamond tools industry. Our main products include diamond tools/segments. Besides, we are making great efforts to develop new products to meet different requirements. Our company has hot pressing machine equipment to strictly control the product quality. Adhering to the business principle of mutual benefits, we have had a good reputation among our customers because of our perfect services, quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us for common success. China is a big country in stone production and consumption. At present our products sell well throughout the provinces in China, with the turnover of nearly one hundred million Yuan, On this basis, we began to open up overseas markets in 2012, including India, Vietnam, Spain, Iran and other countries. Our products have reached the country's request and now our company is striving for more markets.
