| Prod Model: |
EF diamond burs |
Product Description
FG Diamond burs:
Application: For dental clinical to drill tooth or make tooth preparation
ceramics/composite polishing diamond burs
| Specification | Abbr | Color Ring | Sand specification(um) | Grain Size Mediian | Grain Explain | Mesh |
| Super fine 494 | UF | white | 4~14 | 8 | M4~M14 | 1500Mesh |
| Extra fine 504 | EF | yellow | 10~36 | 25 | M10~M36 | 500Mesh |
| Fine 514 | F | red | 27~76 | 46 | M27~D76 | 325Mesh |
| Medium coarse 524 | M | blue | 64~126 | 107 | D64~D126 | 140Mesh |
| Coarse 534 | C | green | 107~181 | 151 | D107~D181 | 100Mesh |
| Super Coarse 544 | EC | black | 151-213 | 181 | D151~D213 | 80Mesh |

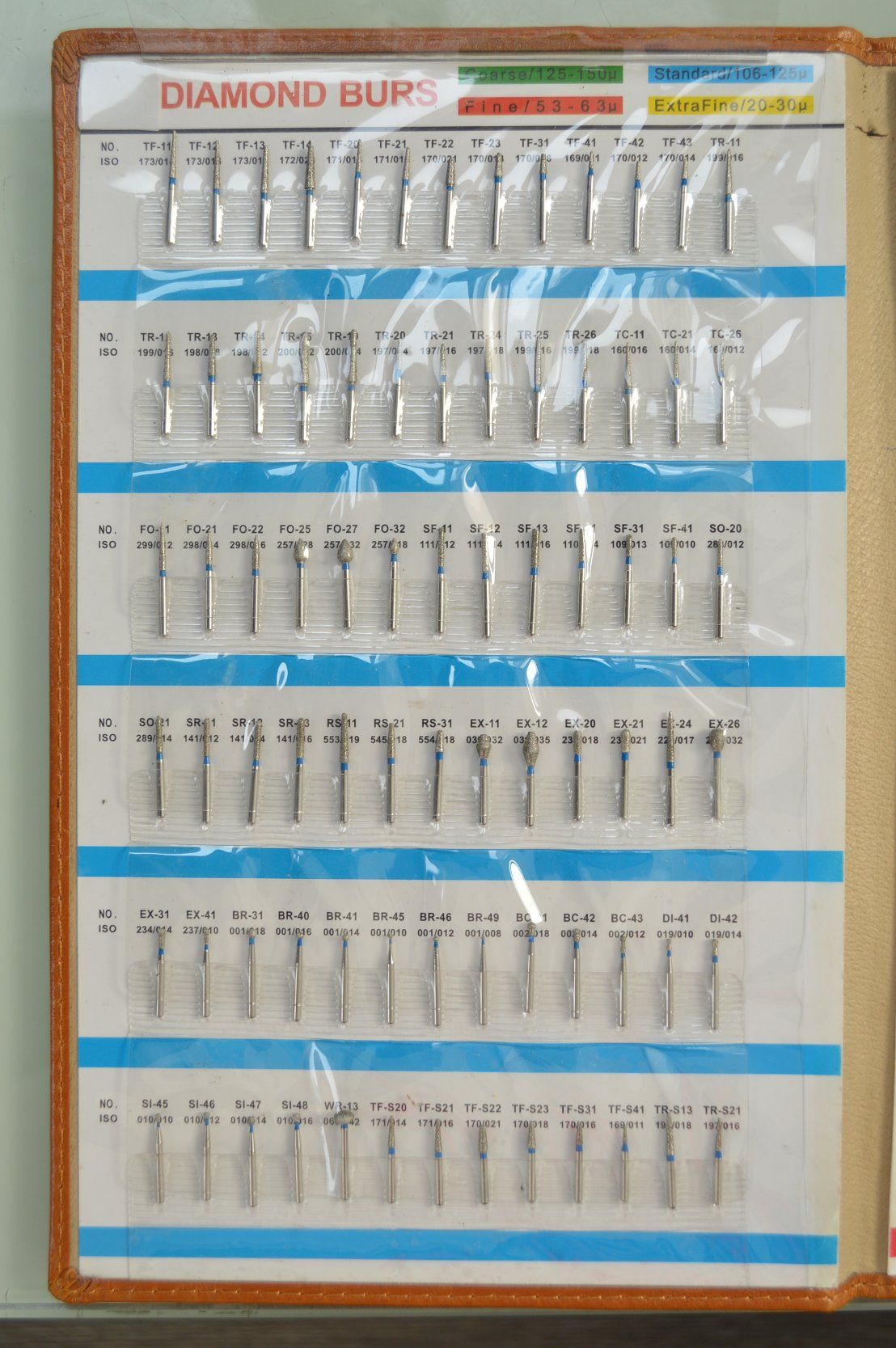

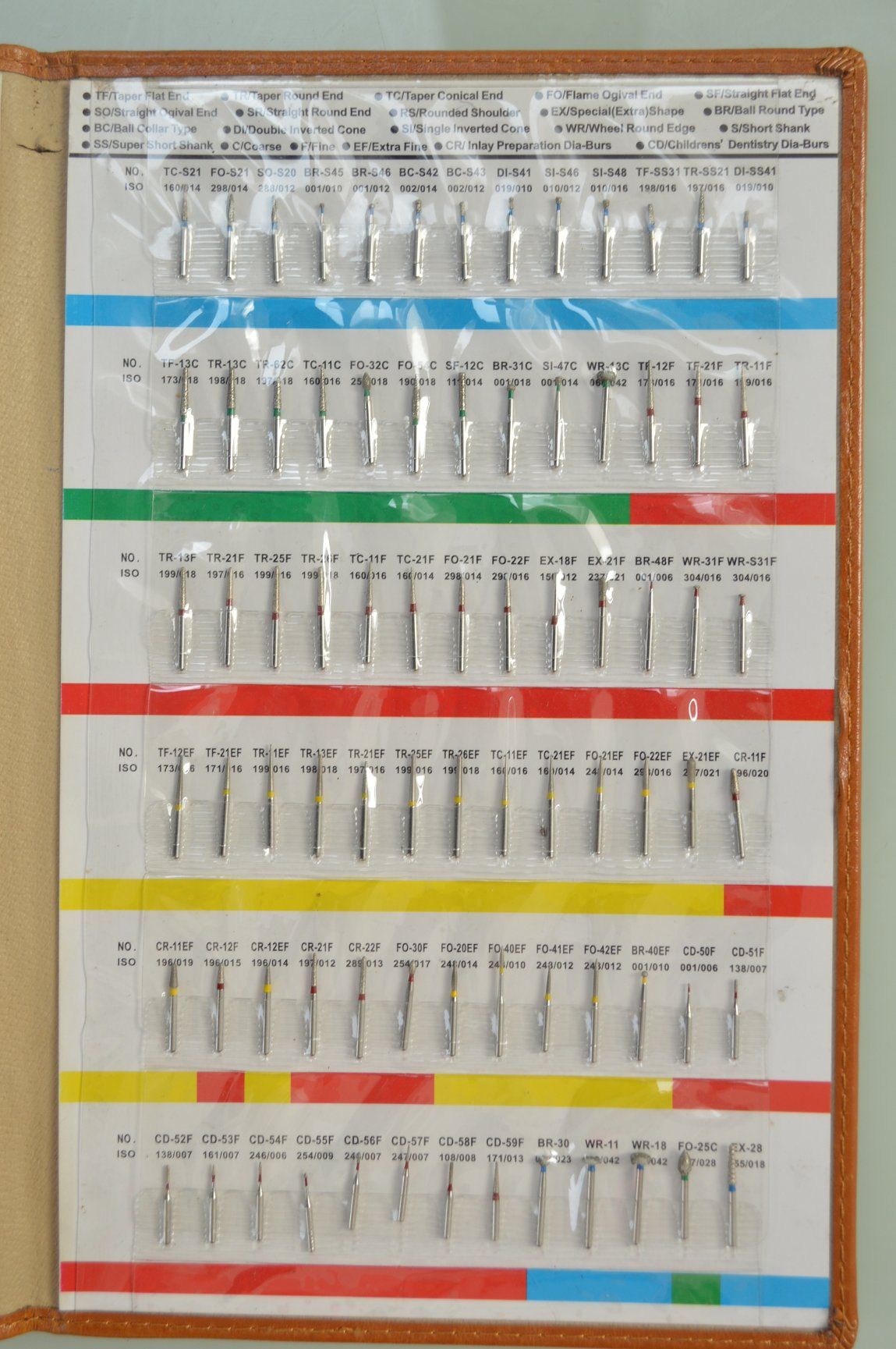

Shape and Code of diamond burs:
TF-Taper Flat End RS-Rounded Shoulder
TR-Taper Round End EX-Special Extra Shape
TC-Taper Conical End BR-Ball Round Type
FO-Flame Ogival End BC-Ball Collar Type
SF-Straight Flat End DI-Double Inverted Cone
SO-Straight Ogival End SI-Single Inverted Cone
SR-Straight Round End WR-Wheel Round Edge
Shank length:
S-short Shank-17mm total length
SS-super short Shank-15mm total lenght
Note:Please use it in the recommended speed then can reach the best effect
| Diamond burs-Guidance for Maximum RPM |
| Working Diameter | Recommended RPM | Maximum RPM |
| 007-011 | 75000-150000 | 450000 |
| 012-016 | 60000-110000 | 450000 |
| 017-020 | 45000-85000 | 300000 |
| 021-023 | 40000-75000 | 300000 |
| 024-027 | 35000-65000 | 160000 |
| 028-031 | 25000-45000 | 140000 |
| 032-040 | 20000-40000 | 120000 |

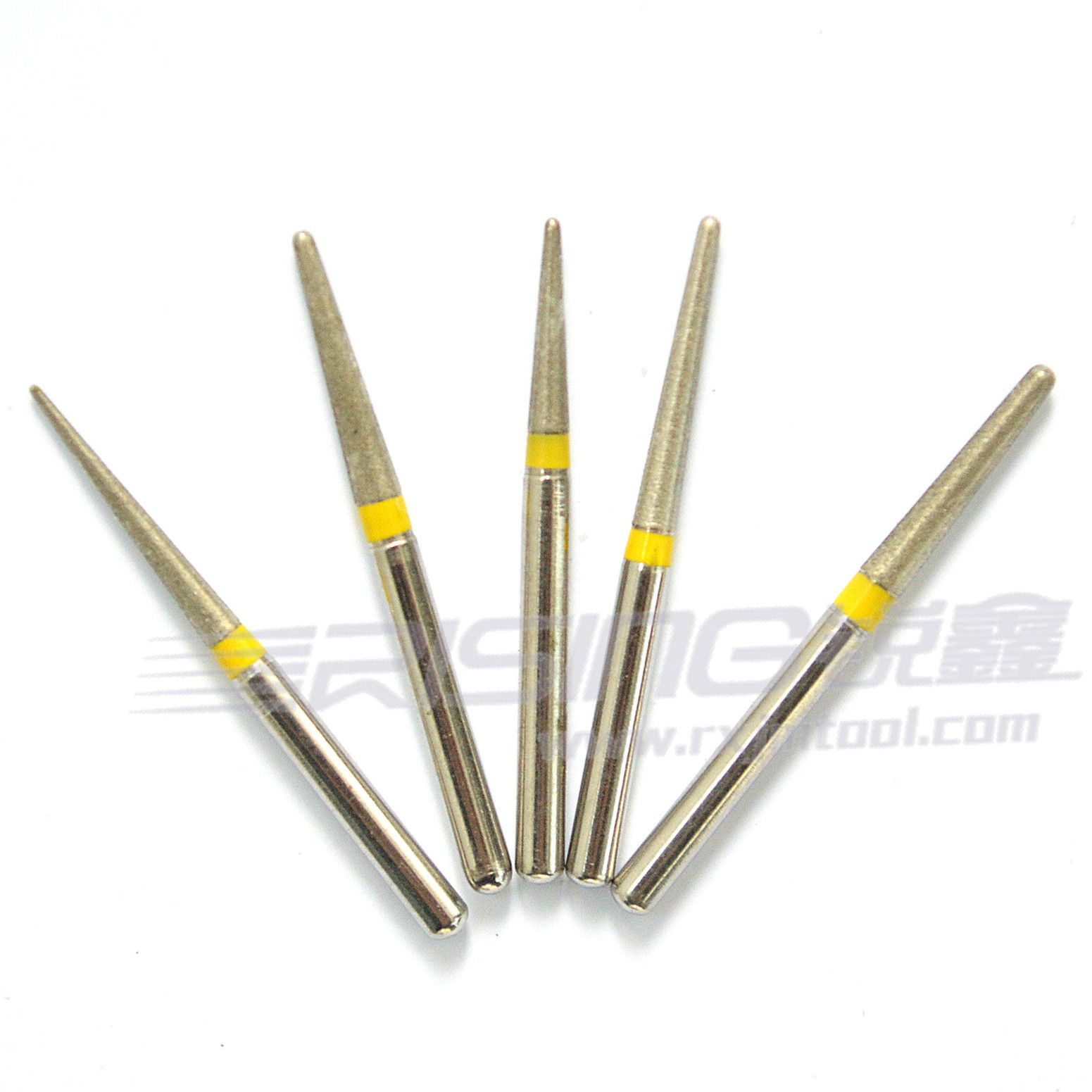

Photo:
Packing: 10pcs blister packing or 10pcs one plastic box
5pcs blister packing
Transportation:For the transportation way we can meet your requirments, we can ship the goods by DHL ,UPS,TNT,EMS ( we got large discount from the these express company) China Post Or we can send goods to your forwarder ,By air or By see both OK.Trade terms :EXW,FOB,CIF Certifacation:We already registered our products in China FDA,now our carbide burs can free sale in China market and got good feedback and reputation in our country.We also have export rights that we also export our goods to many countries,such as Japan,USA,Canada and Mid-east countries.Now one of our USA cutstomer help us to register FDA in USA and also the Free Sale certificate,then we will get the FDA and FSC soon.Company introductoin:Hanzhong Ruixin Cutting Tools Co.,Ltd is a manufacturer of dental burs for more than 15 years.We produce FG/RA/HP carbide burs and diamond burs, CNC carbide cutters,ENT and so on.All the time we try to provide our customer more better quality and reasonable price.We accept OEM and ODM.Hanzhong Ruixin (Rising) will be your best choice for kinds of dental burs!Contact:Lisa Mob:+86 181 9162 1622
