| Prod Model: |
1-20 mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Rbkt-Js |
| Usage: |
Thread Milling Tool |
| Coating: |
PVD CVD |
| Color: |
Gold |
| CNC Type: |
Power Tool Parts |
| Brand: |
Preda |
| Stock: |
Rich |
| OEM: |
Accept |
| Suitable For: |
Steel , Stainless Steel , Cast Iron etc |
| Package: |
10PCS/Box |
Product Description
Specifications

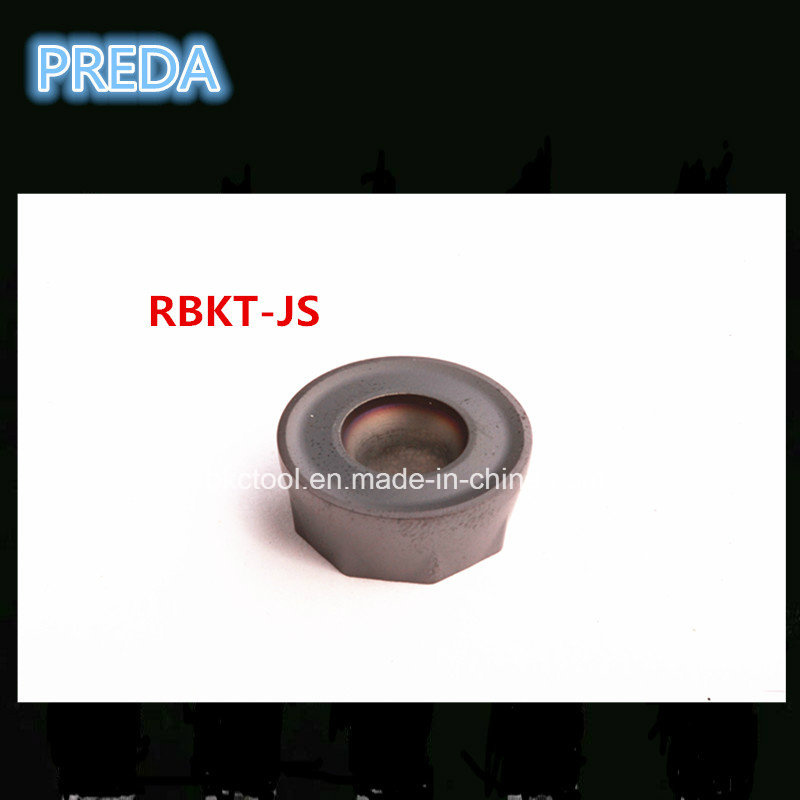

1.Cermet CVD Coated Lathe carbide tips Tools Rbkt-Js
2.Virgin raw material
3.OEM & ODM supported
4.ISO Carbide milling Inserts for Steel RBKT
Description
1. Dimensionally accurate, durable and reliable performance
2. High quality with competitive price
3. Widely used in industry of metalworking machinery
4. Various types, can be made as client's request
Milling inserts are used on the milling machine for the processing of various kinds of materials such as cast
iron, steel, stainless steel, nonferrous metal etc. There are conventional milling inserts and CNC milling inserts
for different milling machines. Milling inserts come in different type and grade for different purpose.
Application
The PCD Milling Insert can be used for turning operation in many fields including aerospace, the car industry, energy equipment, and the wood and stone industry. It can be used to finish machining different materials such as nonferrous metal, tungsten carbide, ceramic, reinforced plastic, rubber nonmetal and composite material.
Description
PCD(Poly Crystal Diamond) refers to diamond particles which have been sintered together with a binder phase under high pressure, high temperature conditions similar to those used in single crystal diamond synthesis. These sintered PCD materials have a variety of uses, most notably for cutting tools machining non-ferrous metals and non-metallic materials and for wear parts.
As cutting tool material, PCD is generally recommended for the machining of non ferrous workpiece materials where high abrasion resistance is required.
Grade
| ISO
standars
| Density
g/cm3
| HRA
≥
| T.R.S
≥ MPa
| grain size
| performance characteristic
|
HSSC05
| K01
| 15.20
| 94.0
| 2000
| superfine
| Hardness is very high,Abrasion resistance, oxidation resistance and corrosion resistance
,Suitable for high density fiberboard
|
HSSC06
| K05
| 14.85
| 92.7
| 2300
| superfine
| High hardness, high temperature hardness, Abrasion resistance, oxidation resistance and corrosion resistance,Appropriate processing and cork, hardwood and particle board
|
YG6X
| K10
| 14.95
| 92.1
| 2500
| thin
| Sharp edge, the wear resistance is very good
,Suitable for processing of hardwood, cast iron, aluminum and other non-ferrous metals.
|
YL10.2
| K20
| 14.50
| 91.50
| 2600
| superfine
| Suitable for the production of various kinds of softwood and hardwood and general processing of all kinds of cutting tools
,Ideal for processing of stainless steel, titanium alloy, strong commonality.
|
YG6
| K10
| 14.95
| 90.5
| 2000
| moderate
| Has good abrasion resistance and good impact toughness ,Can use resistance welding, especially for making ordinary wood cutting saw.
|
YG8
| K20
| 14.8
| 89.5
| 2200
| moderate
| Has good abrasion resistance and good impact toughness,Can use resistance welding, suitable for dry wood, cork, used to make ordinary sawtooth.
|
YG8C
| K20
| 14.8
| 88.5
| 2300
| thick
| Good impact toughness, can be used in the manufacture of percussion drill,Processing marble and coal mining tools.
.
|
