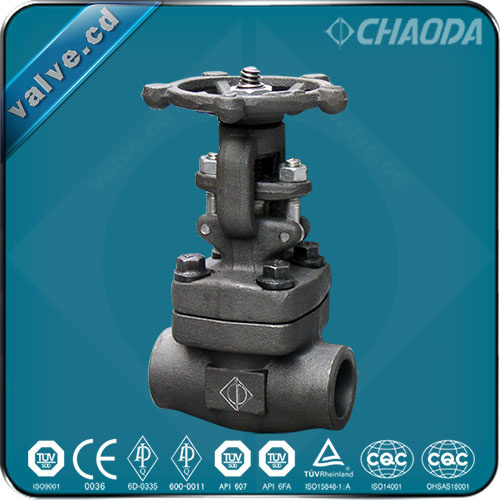

Chaoda Socket Welded/Sw Ends Forged Gate Valve
| Price: |
US $ 9.99-99.99/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
Z6C1H, Z6C1E |
| Material: |
Carbon Steel |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
| Connection Form: |
Socket Welding |
Product Description
Socket Welding Forged Gate Valves
CHAODA Valves Group is specialized in manufacturing Socket Welding Forged Gate Valve with following good characteristics: good sealing performance, reliable safety guarantee, long life span and etc. Socket Welding Forged Gate Valve is usually used for DN≤40 for its economic features, and butt welding ends is for DN>40. Socket welding is widely used for small size pipe because they would always have a thin wall thickness which may have problems for butt welding. Moreover, the birdsmouth part of socket welding has the function of reinforcement so that it is also welcomed under high pressure.
Type: Z61H,Z61Y
Bore: NPS½~NPS2,DN15~DN50
Rating: Class150~Class1500
Material: Forged steel
Operation: Manual,Gear Operated,Electric Operated,Pneumatic Operated
Applicable: Oil,Chemical,Natural Gas,Petrochemical,Coal Chemical and so on
CHAODA VALVES GROUP CO.,LTD.
TEL:0086-577-57757282
FAX:0086-577-57757273
Socket Welding Forged Gate Valve product description
Socket Welding Forged Gate valves are suitable for using on various kinds of pipeline from Class150 To Class1500, DN15 To DN50 to cut off or connect the flowing of medium. By using different material, the Socket Welding Forged Gate Valve could be suitable for medium such as water, steam, oil, nitric acid, acetic acid, oxidizing substance, carbamide and etc.
Socket welding connection is used for not very high pressure with small nominal diameter, while butt welding is generally for high pressure.Butt welding usually should be done 100% NDT to ensure there is no leaking. For high pressure or some severe working condition, butt welding connection should be adopted for its better weld strength and force bearing.
All our gate valves have the back seating design. In most cases, the carbon steel gate valve is fitted with a renewable back seat. For Stainless Steel Gate Valve, the back seat is machined directly in the bonnet or is machined after welding. When the gate valve is at fully open position, the sealing of the back seat can be very reliable. However, as per the requirement of API 600, it is not advisable to add or change packing by the mean of back seating when the valve is pressure containing.
CHAODA VALVES GROUP Co., Ltd was established in 1984, with two specialized manufacturing plants and one foundry plant, around 500 employees, of which 128 are engineer and technician. CHAODA is a specialized manufacturer of industrial steel valve according to API, ASME, EN, ISO, JIS, DIN, BS, GOST & GB standards. The product includes Ball Valve, Gate Valve, Check Valve, Globe Valve and other special valves that are widely applied in petroleum, chemical, metallurgical and power generation industries. As the reliable supplier on quality and service, CHAODA VALVE won great reputations from the customers in Europe, America, Japan, Middle East, South East Asia, Russia and other countries.
CHAODA VALVE launched its quality management and safety system as ISO 9001, ISO14001, OHSAS18001 and awarded API 6D, API 600, API 607, API 6FA, CE/PED approvals for the product.
CHAODA established a multi-functional phys-chemical lab to further supervise the quality time to time, and fit out spectrum analyzer, portable spectrograph (PMI), mass spectrometer, induction furnace infrared carbon, sulfur analysis gauge, material tester, impact tester, spring tester, hardness meter, thickness meter, magnetic particle tester and NDE testing equipment, and also other testing facilities for valve torque, service life, flowing capability, low temperature application, low leakage and pressure test.
On innovation side, besides 15 patented valve designs, there are around 100 new products that developed by CHAODA dedicated research team by 35 professional engineers in each year.
Upon the continues increase on customers demand, CHAODA invested a more effective control line with Germany HECKERT machining center, CNC lathe, CNC miller, CNC driller, plasma spray welder, auto painting & drying machine and ultrasonic cleaner, and the max. Machining ability reached 4000mm. The connectable solid warehouse system from parts to finished good ensures the production flow can be alternative by vary demand.
Along with the rapid growth in business, CHAODA invested 3.2 million RMB constructed its information management system on PDM and ERP that integrated increase the ability from innovation, quality control and management.
The main tech-data of product listed as below, where any special requirement can be handled by our dedicated engineering team for various working conditions.
Product range: Ball Valve, Gate Valve, Check Valve, Globe Valve and other special valves. More specifically, Metal seated ball valves, bellow sealed valves and wafer check valve are our most featured products.
Pressure range: Class150-Class2500, PN10-PN420.
Size range: NPS1/2-NPS80.
Operation type: Manual, Gearbox, Chain wheel, Pneumatic, Electronic, Hydraulic-pneumatic etc.
Connection End: Flanged, BW, SW, NPT, Wafer type, etc.
Materials (casting): WCB, WCC, LCB, LCC, LC1~3, CF8, CF3, CF8M, CF3M, CF8C, CN7M, CA15, C5, WC5, WC6, WC9, etc.
Materials (forging): A105, LF1, LF2, F304, F304L, F316, F316L, F11, F22, F6, F51, F316H, F321, F347, etc.
CHAODA (Qingtian) FOUNDRY is wholly owned subsidiary by CHAODA VALVE is one of the leading investment casting foundries in China, covering 40, 000 m2 areas and 26, 000 m2 construction areas, around 200 employees, and mainly supplies investment casting to CHAODA VALVE and foreign customers that provide a reliable quality assurance for valve product, and the initial production capability will be reached to 7000 ton/year.
CHAODA VALVE is dedicated to supplying high quality valve solutions for global industries since its inception in 1984. In the new century, CHAODA is facing a historical development opportunity and furious competition. By holding the persistence improving in management and product quality, CHAODA will provide higher and better service to you.
