| Price: | US $ 13000-15000set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | AWR28H |
|---|---|
| Colour: | Blue or Black |
| Controller: | CNC or PC |
| Voltage: | 3 Phase 380 or Your Request Voltage |
| Cutting Effect: | Rainbow Line or Cutting Line |
| Detection Way: | Touch Ruby Probe System |
| Cutter: | Special Diamond Cutter |
| Optimized Software: | Designed for Optimize Program |
| Clamping Form: | 3 Jaws Chuck |
| Max Wheel Size: | up to 27 Inch,30 Inch,or 32 Inch |
| Oversea Service: | Offer |
| Type: | Horizontal Lathe |
| Processing Accessory: | Chuck CNC Lathe |
| Tool Holder: | Single-tool Holder CNC Lathe |
| Power Source: | Electric |
| Controlling Mode: | CNC |
| Automatic Grade: | Automatic |
| Setting Mode: | Floor-type |
| Precision: | High Precision |

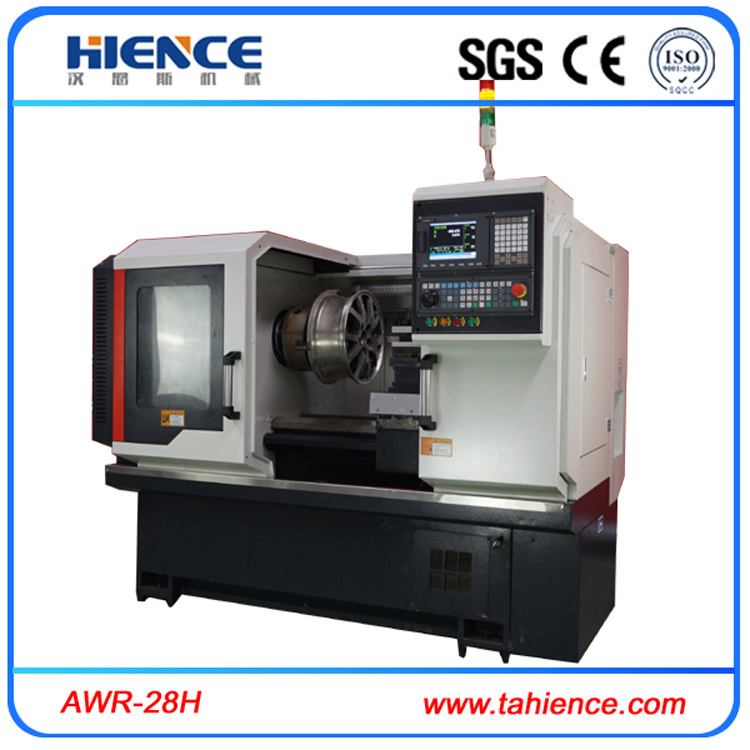

Cheap diamond cut wheel refurbishment lathe AWR28H
Specification list
| ITEMS | AWR28H | |
Max. swing over bed (mm)(inch) | Φ770(30') | |
Max. Diameter of wheel(mm) (inch) | Φ720(28') | |
Cross slide travel (mm) | 390 | |
Width of the rail (mm) | 300 | |
Length of the rail (mm) | 1300 | |
Size of the three-jaw chuck (inch) | 12' | |
Range of spindle speed (RPM) | 50-2000 | |
Spindle speed control | Automatic | |
Spindle bore (mm) | Φ82 | |
Taper of spindle bore | 1:20(Φ90) | |
Taper of spindle nose | A2-10 | |
Adjustable stroke of carrier in X direction | 100mm | |
Max. size of tool post | 25×25mm | |
Stations of tool carrier | 4 position | |
Min. setting unit of motor | (Z) long 0.001mm, (X) cross 0.001mm | |
Moving speed of post | (Z) long 8m/min, (X) cross 6m/min | |
Motor power | 7.5KW | |
Machine size | (L/W/H) (mm) | 2200/1600/1860 |
Package size | 2300/1750/2100 | |
Net weight | 2600KGS | |
