| Prod Model: |
EPT20-20WA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
2ton Electric Pallet Jack |
| Load Capacity: |
2000kg |
| Load Center: |
600mm |
| Wheelbase: |
1418mm |
| Lift Height: |
125mm |
| Fork Height, Lowered: |
85mm |
| Overall Length: |
1748mm |
| Overall Width: |
710mm |
| Outer Turning Radius: |
1638mm |
| Service Weight (Incl. Battery): |
535kg |
Product Description

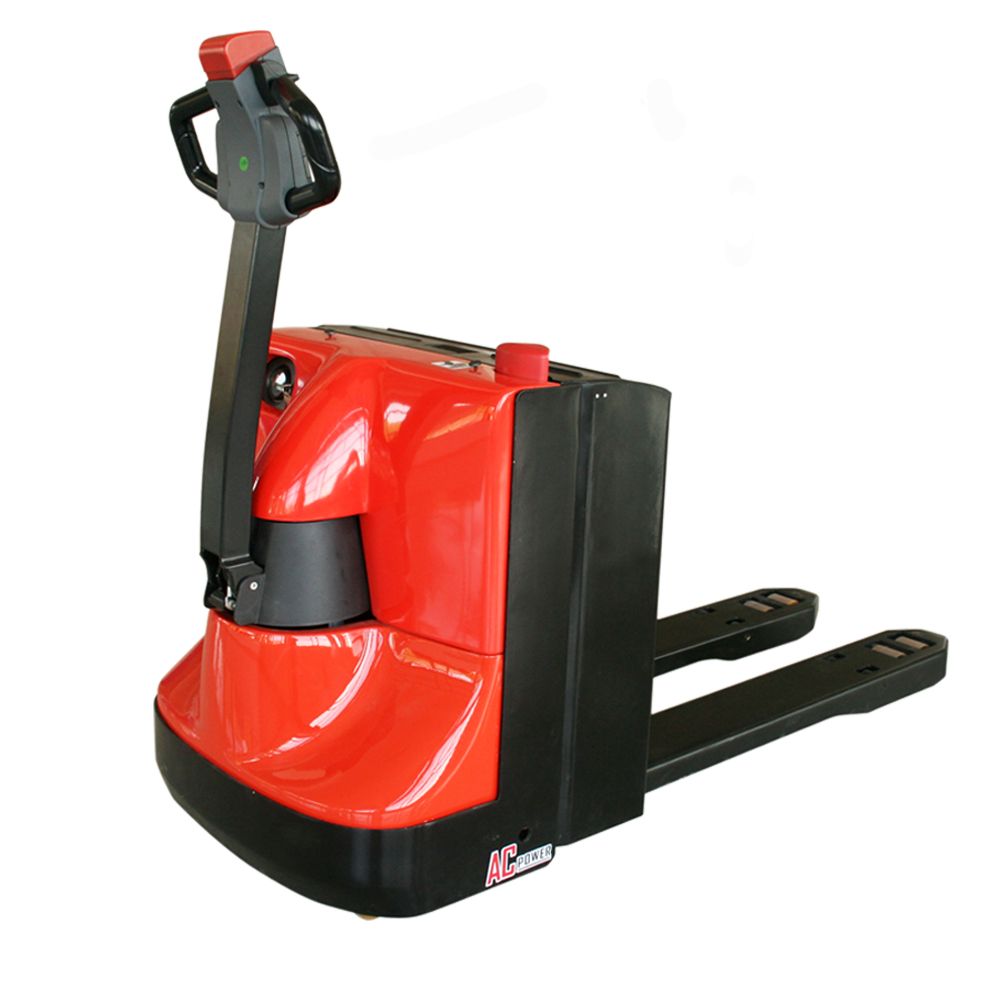

Cheap Price For Pallet Truck With Electric Power EPT20-20WA
Characteristics of Pallet Jack:
1.Load Capacity: 1000-1500kg
2.Lifting motor:0.78kw
3.SME/ZAPI/CURTIS AC power controller
4.ZAPI/CURTIS Controller
5.Long Life Rechargeable Batteries
Technical Spces Of Pallet Truck:
Characteristics |
| 1.1 | Manufacturer |
| HYTGER |
| 1.2 | Model designation |
| EPT20-20WA |
| 1.3 | Drive unit |
| Electric |
| 1.4 | Operator type |
| Walkie |
| 1.5 | Load capacity | Q (kg) | 2000 |
| 1.6 | Load center | c (mm) | 600 |
| 1.8 | Load distance (Raised/ Lowered | x (mm) | 916/ 982 | 937/ 1003 |
| 1.9 | Wheelbase | y (mm) | 1418 | 1438 |
| Weights |
| 2.1 | Service weight (Incl. battery) | kg | 535 |
| 2.2 | Axle loading, laden front/ rear | kg | 955/ 1580 |
| 2.3 | Axle loading, unladen front/ rear | kg | 430/ 105 |
| Wheels, Chassis |
| 3.1 | Tyre type,operator side/ load side |
| PU |
| 3.2 | Tyre size, operator side |
| 230x75 |
| 3.3 | Tyre size, load side |
| 2x 85x70/85x115 |
| 3.4 | Balance wheels (dimensions) |
| 85x48 |
| 3.5 | Wheels, number operator/load side (x=drive wheels) |
| 1x +2/4 / 1x +2/2 |
| 3.6 | Tread, operator side | b10 (mm) | 498 |
| 3.7 | Tread, load side | b11 (mm) | 370/ 515 |
|
| 4.4 | Lift height | h3 (mm) | 125 |
| 4.9 | Height of tiller arm in operating position, min/ max | h14 (mm) | 825/ 1190 |
| 4.15 | Fork height, lowered | h13 (mm) | 85 |
| 4.19 | Overall length | l1 (mm) | 1748 | 1818 |
| 4.20 | Length to face of forks | l2 (mm) | 598 |
| 4.21 | Overall width | b1/ b2 (mm) | 710 |
| 4.22 | Fork dimensions | s/ e/ l (mm) | 55x170x1150 | 55x170x1220 |
| 4.25 | Fork spread, min/ max | b5 (mm) | 540/ 685 |
| 4.32 | Ground clearance, center of wheelbase | m2 (mm) | 35 |
| 4.33 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | 1856 |
| 4.34 | Aisle width, 800×1200 pallet lengthways | Ast (mm) | 2056 |
| 4.35 | Outer turning radius | Wa (mm) | 1638 | 1659 |
| Performance |
| 5.1 | Travel speed, laden/ unladen | km/ h | 5/ 5.5 |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.051/ 0.060 |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.032/ 0.039 |
| 5.8 | Maximum gradeability, laden/ unladen S2 5 min. | % | 6/ 8 |
| 5.10 | Service brake |
| Electromagnetic |
| Drive |
| 6.1 | Drive motor rating S2 60 min. | kW | 1.1 |
| 6.2 | Lift motor rating at S3 15% | kW | 0.84 |
| 6.4 | Battery voltage/ rated capacity (5h) | V/ Ah | 24/210 |
| 6.5 | Battery weight (with box) | kg | 205 |
|
|
|
|
|
| 8.1 | Type of drive control |
| AC ZAPI |
| 8.4 | Sound level at operator's ear | dB (A) | 74 |
Shipment & Payment:
1.T/T(100% T/T,30% deposit for production and 70% balance of settlement for shipment)
2.L/C(100% L/C)
3.Shipment time:15-20 days after received the 70% balance.
FAQ:
1.Does the forklift battery can be changed?
Yes,as your request
2.Does the color can be customized?
Yes,all color are available.
3.Any kinds of forklift you can supply?
Diesel,gasoline,LPG dual fuel,electric power are available.
