China Circular Metal Slitting Saw Dia From 15mm to 600mm
| Price: |
US $ 0.1-50/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
Slitting Saw |
| Material: |
HSS, Alloy Steel |
| Other Coating: |
Tin, Ticn, Tialn |
| Quality Gurantee: |
Get Replacement |
Product Description
Kanzo- The cutting experts - Industrial HSS & TCT circular saw blades& band saw blades
Our general information:Saw blades for different working industry1.HSS saw blades2.solid carbide 3.Carbide tipped circular saw blades for the steel cutting4.Special sizes on demand Cutting material:Metalsferrous materials (ST-37, ST-44, ST-52...). Stainless steel (AISI 306, AISI 304 316...). non-ferrous materials (aluminiums, coppers brasses...).wood

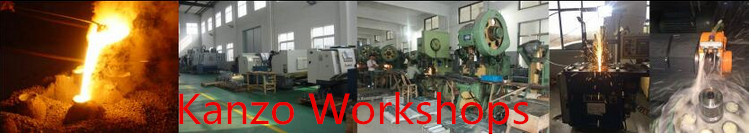

Our factory tour:
More about saw blades:Circular saw blades made in high speed steel with fixed or variable toothings, useful on slow cutting off machines, automatic sawing machines for steel tubes, solids and profiles cutting. Possibility of heat coating on all produced saw blades (tin, ticn, tialn), according to material to be worked.
HSS circular saw blade has very high performance for cutting carbon steel, alloy steel, stainless steel, mild steel, cast steel, cast iron, copper, bronze, brass, aluminum etc.Please check some sizes information as follows,
| Diameter | mm | Bore |
| 1.5" | 40 | 5/8" to 2" |
| 8" | 200 | 5/8" to 2" |
| 10" | 250 | 5/8" to 2" |
| 12" | 300 | 5/8" to 2" |
| 14" | 350 | 5/8" to 2" |
| 15" | 400 | 5/8" to 2" |
| 19" | 500 | 5/8" to 2" |
HSS/ HSS-E DMo5 circular saw blade M2 M35 DIN 1.3343 DIN 1.3243| Dia*thickness | Hole:From 5mm-32mm-40mm-50mm etc | | | | | |
| 20x0.2-3 | 25x0.2-6 | 32x0.2-6 | | | | |
| 40x0.2-0.8 | 75x6.5-7 | 125x0.8-1.2 | | | | |
| 40x1-1.5 | 75x7.5-8.5 | 125x1.5 | | | | |
| 40x2 | 80x0.5-0.8 | 125x2 | | | | |
| 40x2.5-3 | 80x1-1.2 | 125x2.5-3 | | | | |
| 40x3.5-4 | 80x1.5 | 125x3.5-4 | | | | |
| 40x4.5-5 | 80x2 | 125x5 | | | | |
| 50x0.5-0.8 | 80x2.5-3 | 125x5.5-6 | | | | |
| 50x1-1.5 | 80x3.5-4 | 150x1-1.2 | | | | |
| 50x2 | 80x4.5-5 | 150x1.5 | | | | |
| 60x0.3-0.4 | 80x5.5-6 | 150x2 | | | | |
| 60x0.5-0.8 | 80x6.5-7 | 150x2.5-3 | | | | |
| 60x1-1.2 | 80x8 | 150x3.5-4 | | | | |
| 60x1.5 | 100x0.5-0.8 | 150x4.5-5 | | | | |
| 60x2 | 100x1-1.2 | 150x5.5-6 | | | | |
| 60x2.5-3 | 100x1.5 | 150x6.5-7 | | | | |
| 60x3.5-4 | 100x2 | 150x7.5-8.5 | | | | |
| 60x4.5-5 | 100x2.5-3 | 160x1-1.2 | | | | |
| 63x0.5-0.8 | 100x3.5-4 | 160x1.5 | | | | |
| 63x1-1.2 | 100x4.5-5 | 160x2 | | | | |
| 63x1.5 | 100x5.5-6 | 160x2.5-3 | | | | |
| 63x2 | 100x7 | 160x3.5-4 | | | | |
| 63x3 | 100x8 | 160x4.5-5 | | | | |
| 75x0.5 | 110x0.8-1.2 | 160x5.5-6 | | | | |
| 75x0.6-0.8 | 110x1.5 | 200x1.5 | | | | |
| 75x1-1.2 | 110x2 | 200x2 | | | | |
| 75x1.5 | 110x2.5-3 | 200x2.5-3 | | | | |
| 75x2 | 110x3.5-4 | 200x3.5-4 | | | | |
| 75x2.5-3 | 110x4.5-5 | 200x4.5-5 | | | | |
| 75x3.5-4 | 110x5.5-6 | 200x5.5-6 | | | | |
| 75x4.5-5 | 110x7 | 200x6.5-7 | | | | |
| 75x5.5-6 | 110x8 | 200x7.5-8.5 | | | | |
| 225x2 | 250*1.0-2.5 | 275x1.0-2.5 | | | | |
| 300x1.2-3.0 | 315x2.0-3.0 | 325x2.0-2.5 | | | | |
| 350x2.0-3.0 | 370x2.5 | 400x2.0-3.0 | | | | |
| 425x3.0 | 450x3.0 | 500x3.0-4.0 | | | | |
How to choose teeth? Circular Saw Blade TOOTH Standard TEETH [B]: For cutting very thin tubes, which is not necessary to break the chips, so it is suitable for such application.TEETH [BW]: Be alternatively bevelled, It is most suitable for cutting light gauge steel and sections.TEETH[C]: Also named HZ, which is most suitable for solid and thick-wall tube cutting. The roughing teeth is bevelled on both sides.TEETH[BS]: Which is most effective for cutting tube and profile, particularly with PVD Coated blade, it minimises burr formation even at high cutting rates
TEETH[A]: Designed for machine work; Such as slotting, with thin saw bladeTEETH [AW]: Designed for machine work; Such as slotting, with thin saw blade.Warm reminder:
The right saw blade is a key part of a successful woodworking or metalworking project. Learn how to find the best circular saw blade for your work.Different types of circular saw blades are designed to cut different materials and work with different power saws. Make sure the blade you choose is suitable for the material you need to cut. You also need to make sure it fits your saw. There are several specifications
If you need more information, please feel free to contact with our hardware parts department. ↓↓↓
Zhejiang Kanzo Industrial Co., Ltd is a professional supplier for casting and machined metal components for 15 years. We have a wide variety of materials, for example, carbon steel, low and high alloy steel, stainless steel, aluminum, copper, ductile cast iron etc., which are widespread used in construction machinery, Automobile electricity Industry, petroleum, agricultural and medical machinery and so on.
KANZO covers various foundries and machining factories based on various casting processes with custom CNC machines. Our CNC machines refers to turning, milling, stamping and so on.
In 2006, KANZO company established its branch and started producing metal cutting circular saw blades and M42 band saw blades. The circular saw blades are supplied in high speed steel of M2 (DIN 1.3343), and cobalt-alloyed steel M35(DIN 1.3243). Diameters vary from 30 to 550 mm in various thickness, tooth forms and number. Beside PVD (physical Vapour Deposition) coating, we can provide these coatings: TiN (Titanium Nitride, TiCN (Titanium Carbon Nitride), and TiALN (Titanium Aluminium Nitride).
At present, We have more than 300 workers and with complete advanced equipment and test machine. Our factory with ISO9001 and ISO/TS16949 certified to keep supplying high quality components. Our products export to worldwide, for example Germany, USA, Canada, South America, Middle East and so on.
Kanzo also have invested in LED lighting industry which company name is ningbo new kanzo electrical. Co., Ltd.
