| Prod Model: |
XG102 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Diamond and Metal Powder |
| Application: |
for Cutting Granite, Marble, Sandstone |
| Support: |
OEM |
| Feature: |
Fast Cutting Speed, Long Life |
| Sample: |
Free |
| Export Markets: |
Global |
| Delivery Time: |
4-7days |
| Usage: |
Stone Cutting |
| Manufacturing Arts: |
Sinter |
Product Description

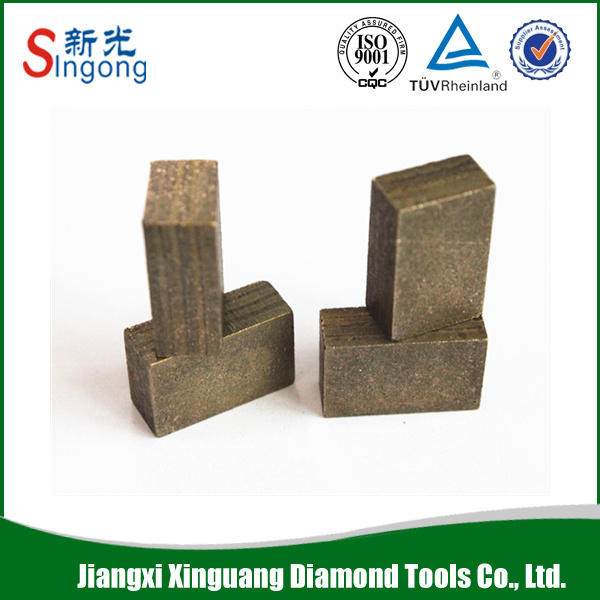

Cutting Tool Features:
1. Working fast without chipping and noise.
2. The segment has high effciency at the process of cutting.
3. Low cost and friendly surroundings with our diamond segment.
4. The tool cutting smooth and make the surface flat.
5. More diamond powder in the segment with low price.
6. Can do any shape, as V shape, M shape, K shape, Turbo shape, sandwich. Etc.
7. Different stone has different hardness, so need different segment to cut.
Our service:
1. Can produce the production according to customized, suh as size, material, quality level and price level.
2.24 hours online to answer your question.
3.24 hours hot line: +86 15970356654
4. Professional technical work team
5. If there are any question about our products, we can change or return of the products to ensure your profit.
Company Information
Our company is located in Poyang, Jiangxi Province. Our main products are diamond segments for cutting granite, marble, sandstone and other stones, with advanced technology and rich experience. It has more than 10 years experience since 2002 when our original factory founded in Fujian province. Our brand is very popular in inland, we also have opened many overseas markets. Special sharpness, short sharpen time, high energy saving and long service life are magic weapons of our products.
| Diameter mm | Inch | Core Thickness | Segment Size(mm) | Segment Number |
| φ300 | 12" | 2.2/2.0 | 40x3.0/2.8x8(10)(12)(15) | 21 |
| φ350 | 14" | 2.2/2.4 | 40x3.0/3.2x8(10)(12)(15)(20) | 24 |
| φ400 | 16" | 2.6/2.8 | 40x3.4/3.6/3.8x8(10)(12)(15)(20) | 28 |
| φ450 | 18" | 2.8/3.0 | 40x4.0/4.2x8(10)(12)(15)(20) | 32 |
| φ500 | 20" | 2.8/3.0 | 40x4.0/4.2x8(10)(12)(15)(20) | 36 |
| φ600 | 24" | 3.6 | 40x4.6x8(10)(12)(15)(20) | 42 |
| φ700 | 28" | 4 | 40x5.2x8(10)(12)(15)(20) | 42 |
| φ800 | 32" | 4.5 | 40x6.0x8(10)(12)(15)(20) | 46/57 |
| φ900 | 36" | 5 | 24x6.6/6.0x10(12) (15)(20) | 64 |
| φ1000 | 40" | 5.5 | 24x7.0/6.4x10(12) (15)(20) | 70 |
| φ1200 | 48" | 6 | 24x8.0/7.4x10(12) (15)(20) | 80 |
| φ1300 | 50" | 6.5 | 24x8.4/7.8x10(12) (15)(20) | 88 |
| φ1600 | 64" | 7.2 | 24x9.0/8.4x10(12) (15)(20) | 108 |
| φ1800 | 72" | 8 | 24x9.8/9.2x10(12) (15)(20) | 120 |
| φ2000 | 80" | 8 | 24x10.5/9.5x10(12)(15)(20) | 128 |
| φ2200 | 88" | 9 | 24x11.5/10.5x(15)(20) | 132 |
| φ2500 | 110" | 9 | 24x12.5/11.5x(15)(20) | 140 |
| φ3000 | 120" | 10 | 24x13.5/12.5x(15)(20) | 160 |
| φ3500 | 140" | 10 | 24x14.5/13.5x15 (20) | 180 |
Other specifications are available upon request
|
Jiangxi Xinguang Diamond Tools Co., Ltd. Was established in 2003 and is located in Poyang County, enjoying convenient transportation and beautiful environment. Our company covers an area of 13, 000 square meters and has 150 employees. We are specialized in diamond tools and have an annual production capacity of 300, 000 sets. Our company has rich experience in the diamond tools industry. Our main products include diamond tools/segments. Besides, we are making great efforts to develop new products to meet different requirements. Our company has hot pressing machine equipment to strictly control the product quality. Adhering to the business principle of mutual benefits, we have had a good reputation among our customers because of our perfect services, quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us for common success. China is a big country in stone production and consumption. At present our products sell well throughout the provinces in China, with the turnover of nearly one hundred million Yuan, On this basis, we began to open up overseas markets in 2012, including India, Vietnam, Spain, Iran and other countries. Our products have reached the country's request and now our company is striving for more markets.
