| Prod Model: |
Aluminum-300 |
| Length: |
300mm |
| Air Inlet: |
50 mm |
| Color: |
Brown |
| Open Mouth Width: |
0.3mm-8mm |
| Warranty: |
18 Months |
| Condition: |
New |
| Weight: |
4kgs |
Product Description
Product name: China Export Air Knives Coated Aluminum Air knife in the industrial field there are a lot of hair except water, blowing dust and other applications,
such as blowing in addition to steel, aluminum alloy profile plane of dust, moisture, blowing in addition to the moisture on the surface of beverage bottles, cans and other packaging bottle blowing product on the surface of the dust and impurity removal, residual liquid, water on the outer packing, and the conveyor belt cleaning.
In the compressed air supply conditions, air knife can meet the application of perfect.

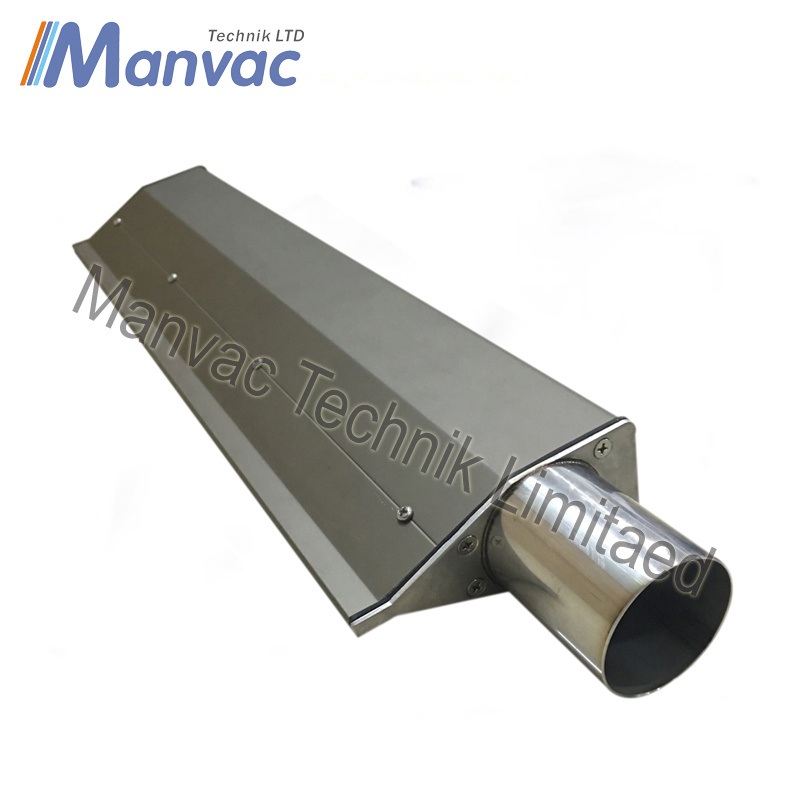

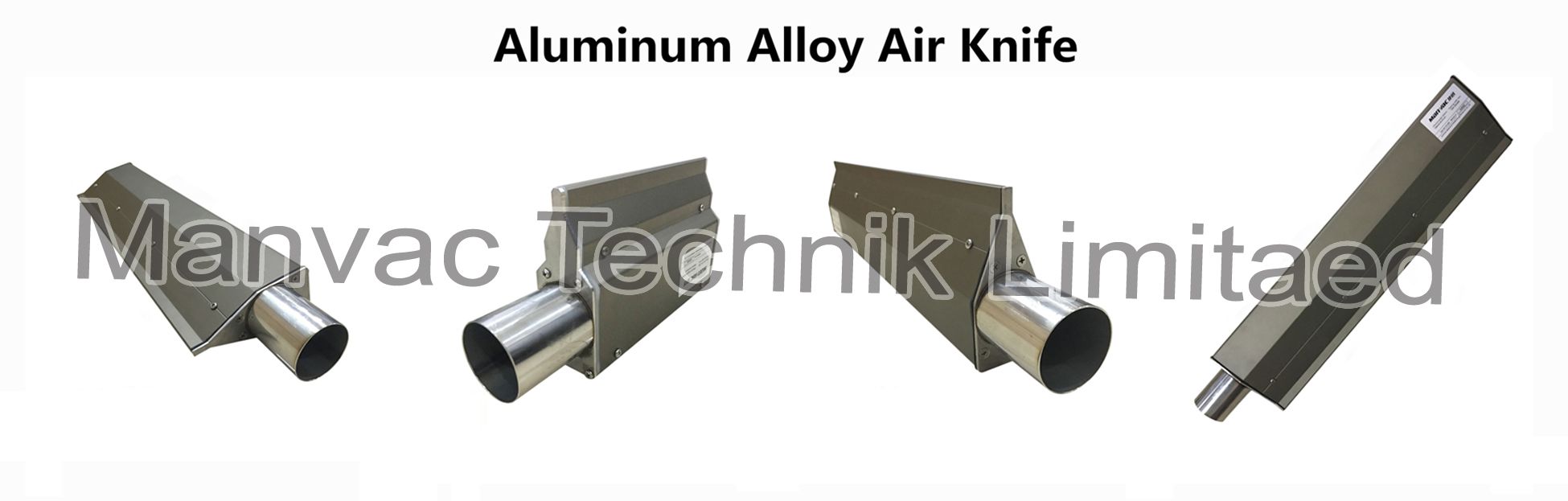

Aluminum Alloy Air Knife

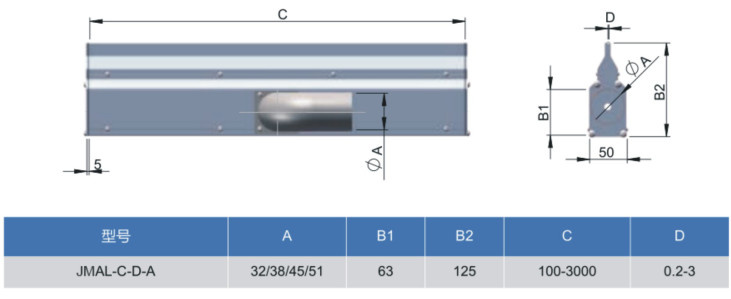

| Model | Inlet(mm) | Outlet(mm) | Length(mm) | Length(inch) |
| Aluminum-300 | 50 | 0.38mm | 300 | 12'' |
| Aluminum-400 | 50 | 0.38mm | 400 | 16'' |
| Aluminum-450 | 50 | 0.38mm | 450 | 18'' |
| Aluminum-500 | 50 | 0.38mm | 500 | 20'' |
| Aluminum-600 | 50 | 0.38mm | 600 | 24'' |
| Aluminum-800 | 50 | 0.38mm | 800 | 32'' |
| Aluminum-1000 | 50 | 0.38mm | 1000 | 40'' |
Note:length we can customize any.

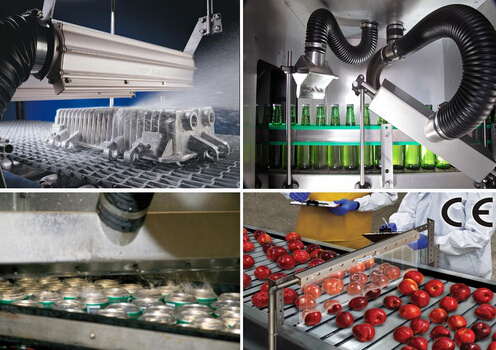

Air Knives Application: The wind blade has a strong wind curtain, which can be used for various blowing and wind cooling applications, for example:
1. The automotive industry: used for blowing in the manufacture of additional water, cooling liquid, dust, debris, etc., as well as steel plate spray before cooling, drying, dust.
2. The electronics industry: electronic circuit board drying fast before assembly.
3. Canned drinks and bottles: beverage bottle label, inkjet or packaging, bottle or bottle of water and attachments blowing.
4. Chemical industry: labeling or packaging, the surface of chemical substances or water blowing.
5. The food and medicine in manufacturing or packaging, the moisture and attachments or dust blowing, bagging and bag before opening.
6. Metal industry: from the surface of the metal blowing coolant or other liquid. Rolling mill emulsion blowing. Yu Paoguang, plating, painting process before the surface drying or cooling.
7. Rubber and plastic material industry: blowing dust or debris from the surface of the product. Dry before extrusion or injection. Cooling after injection molding.
8. Printing (ink jet): inkjet, pre printing dust, debris, water vapor blowing, or the use of rapid drying ink.
Ms Winnie Wang [sales manager]
QQ :3224065207
Manvac Technik Limited Establish in July 2002, Factory space 6000m2.
In August 2002, the first Japanese type turbo air blower come to China mainland.
In March 2003, 8 series of turbo air blower come to Chinese market.
In March 2004, the first container of turbo air blower China.
From May 2005, China Mainland assembling factory established.
In August 2006, China mainland design center established.
In May 2007, the first high pressure ring blower developed successfully
In October 2007, the first multistage turbo blower developed successfully.
In December 2007, move to new factory, totally cover an area of 6000 square meter.
In August 2008, ISO9001 standard approved.
In 2010, we developed 8 series, 70 kinds of low pressure, middel pressure and high pressure side channel blowers.
In the field of plastics industry, food industry, chemical or pharmaceutical industry or even in the sector of environment. Wide range of Products: Side channel blower with high efficiency motor, NSK and SKF bearings.
Dia casting machine, CNC machining equipment, automatic wire winding machine, electric test machine,
Rotor balancing machining machine, impeller balancing testing and machining machine etc.
Professional R&D, Technicists and management.
Quality First, Customer first.
CCC, CE, Energy and environment protection Certificate. CE: CLGD1208131398. / CCC: 2013010401601841.
Light weight, small volume, low nosi, oil-free and fast delivery.
