| Prod Model: |
SY-T0090 |
| Material: |
Galvanized Iron Wire |
| Twist Method: |
Double Twist |
| Application: |
Fence Mesh |
| Finish: |
Hot Dipped Galvanized |
| Razor Barbed Type: |
Single Razor |
| Wire Gauge: |
12x14 BWG |
| Barbed Distance: |
3" |
| Barb Length: |
12mm |
| Coil Outside Diameter: |
960mm |
| Color: |
Silver |
Product Description

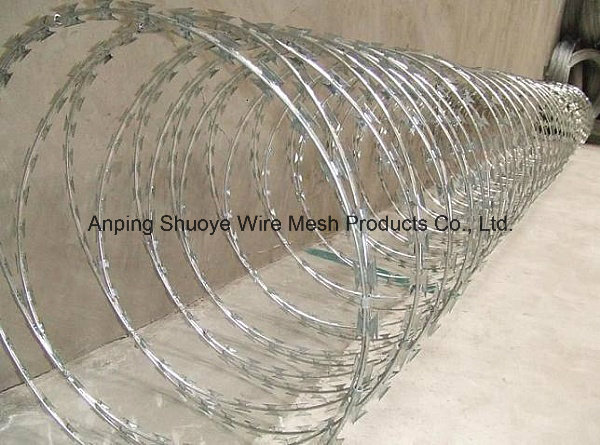

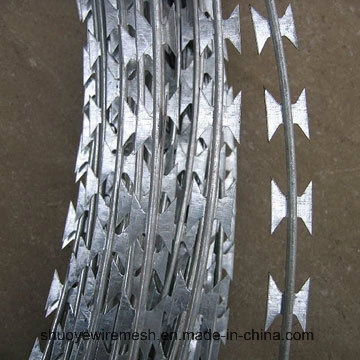

concertina razor wireWhen you need to get serious about security, Concertina Razor Wire is the best solution. It is relatively inexpensive, but viciously effective. Concertina razor wire around the perimeter is enough to deter any would-be vandal, robber or saboteur. Razor Wire is made of a corrosion resistant galvanized steel cutting ribbon wrapped around a core of galvanized spring steel wire. It's impossible to cut without highly specialized tools, and even then it's a slow, dangerous job. Concertina Razor Wire is a long lasting and very effective barrier, known and trusted by security professionals.
Concertina razoe wireEach loop is clipped in 3 or 5 places depending on the coil diameter to the next loop so when it is extended it forms a tubular effect that has gaps too small for someone to climb through.
Razor wire offer all types and sizes of Razor wire to order, although some types if made to order have a minimum order quantity. However we generally stock the following most popular forms of Concertina razor wire.
| Razor wire Specs - Stainless Steel 304 |
| RAZORWIRE DIAMETER | 450M | 500M | 700M | 960M |
| LENGTH EXT | 10M | 10M | 10M | 10M |
RAZOR WIRE
DESIGN | CONCERTINA | CONCERTINA | CONCERTINA | CONCERTINA |
| MATERIAL | STAINLESS
STEEL 304 | STAINLESS
STEEL 304 | STAINLESS
STEEL 304 | STAINLESS
STEEL 304 |
| BLADE STYLE | BTO-22/28/30 | BTO-22/28/30 | BTO-22/28/30 | BTO-22/28/30 |
BLADE
THICKNESS | 0.5MM | 0.5MM | 0.5MM | 0.5MM |
| WIRE DIAM | 0.5MM | 0.5MM | 0.5MM | 0.5MM |
| BARB LENGTH | 22/28/30MM | 22/28/30MM
| 22/28/30MM
| 22/28/30MM
|
| BARB WIDTH | 15/18MM | 15/18MM | 15/18MM | 15/18MM |
| BARB SPACING | 26-45MM | 26-45MM | 26-45MM | 26-45MM |
| LOOPS PER COIL | 56 | 56 | 56 | 56 |
| CLIPS PER LOOP | 3 | 3 | 5 | 5 |
| Razor wire Specs - Galvanized Steel 200g/m2 |
RAZORWIRE
DIAMETER
| 450MM | 700MM | 980MM |
LENGTH EXT
| 10M | 10M | 10M |
RAZOR WIRE DESIGN
| CONCERTINA | CONCERTINA | CONCERTINA |
MATERIAL
| GALVANISED
200G/M2 | GALVANISED
200G/M2 | GALVANISED
200G/M2 |
BLADE STYLE
| BTO-22/28/30
CBT-65
| BTO-22/28/30
CBT-65
| BTO-22/28/30
CBT-65
|
BLADE THICKNESS
| 0.6MM | 0.6MM | 0.6MM |
WIRE DIAM
| 2.5/05MM | 2.5/05MM | 2.5/05MM |
BARB LENGTH
| 22/28/30MM
65MM | 22/28/30MM
65MM | 22/28/30MM
65MM |
BARB WIDTH
| 15/18/21MM | 15/18/21MM | 15/18/21MM |
BARB SPACING
| 26-100MM | 26-100MM | 26-100MM |
LOOPS PER COIL
| 56 | 56 | 56 |
CLIPS PER LOOP
| 3-5 | 3-5 | 3-5 |
Choosing your Razor wire

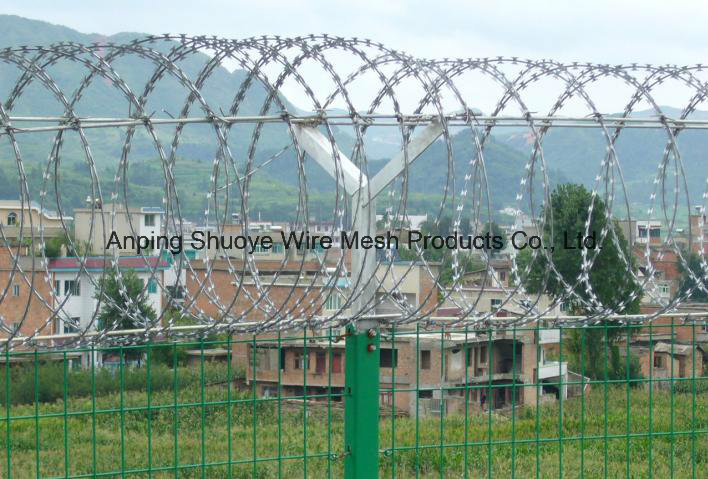

The bigger the diameter the more of an obstacle and deterrent the Razor wire is 450mm diameter is the smallest size we recommend for domestic type applications. This size is normally an adequate deterrent and also the easiest to fit as standard support brackets will generally do for this diameter and weight of razor wire. 700mm or even 960mm diameter will require specially made brackets for the installation.
If fitting to the ground then we would recommend a size that cant be vaulted over, then the suggested options would be to install a single run of960mm diaeter Razor wire or alternatively stack smaller diameter.
