| Prod Model: |
LSW-30 |
| Product Name: |
Induction Heater for Welding Saw Blade |
| Application: |
Welding of Diamond Saw Blade, Alloy Tools, etc. |
| Working Voltage: |
3 Phase 380V, 50/60Hz or Customized |
| Oscillation Frequency: |
25-40kHz |
| Max Input Current: |
50A |
| Duty Cycle: |
100% |
| Cooling Water Pressure: |
0.15-0.2MPa |
| Weight: |
48kg |
| Warranty: |
One Year |
| Color: |
Support Customzied |
Product Description
Product DescriptionChina High Frequency Induction Heater for Welding Saw BladeIntroduction of induction welding machine:1) LSW-30 induction welding machine with IGBT series parallel induction heating technology as the core.
2) This is a form of welding uses electromagnetic induction to heat the workpiece, which makes the brazing filler metals surface temperature rise rapidly till melting, and connecting at last.
3) The principle is the magnetic induction heating principle.
4) Oscillation frequency selection: the larger the brazing area is, the lower frequency is need. When the volume is small, 20-30khz is suitable.

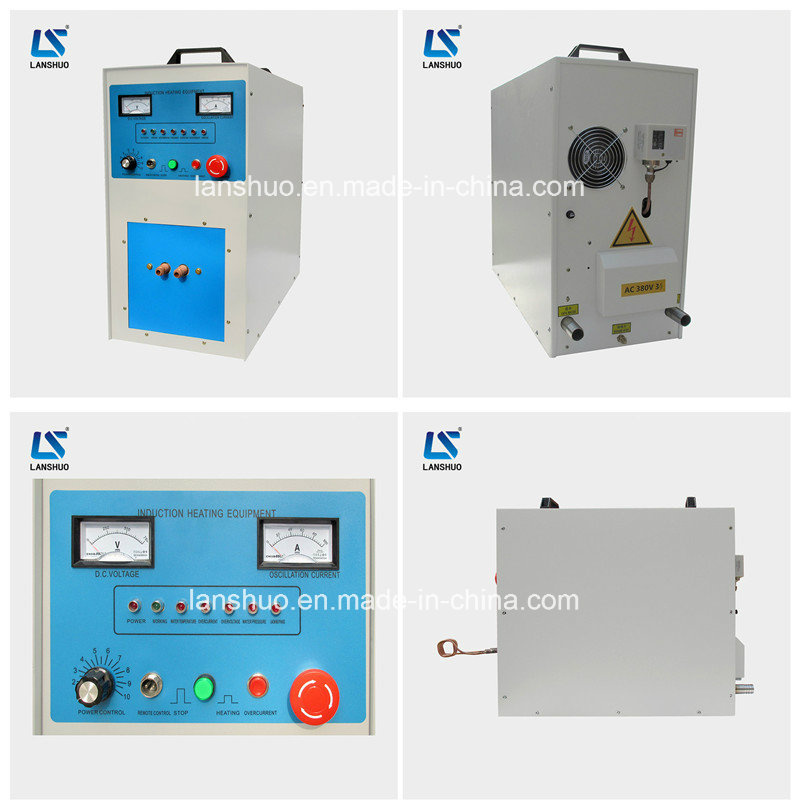

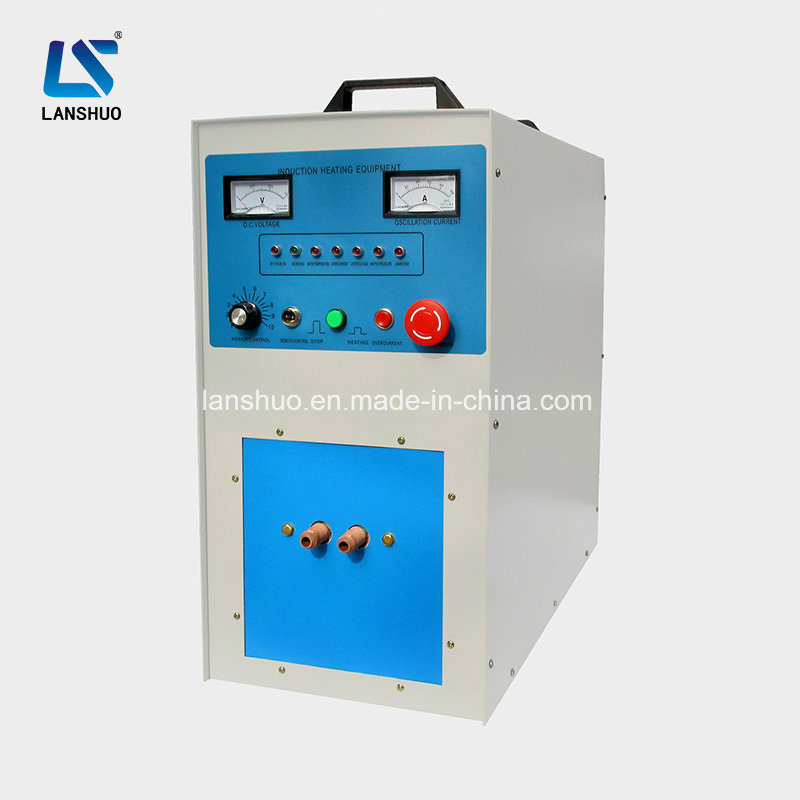

5) Wttage selection: the larger the brazing area and the brazing volume, or the higher efficiency is required, the bigger the wattage is needed.Induction welding machine photo:
Features of induction welding machine:1. IGBT module and Inverting technologies.
2. Higher reliability and lower maintenance cost.
3. 100% duty cycle, continuous working is allowed at maximum power output.
4. Display of heating power and heating current and oscillating frequency.
5. Simple to install. No need debug, Can be used after connecting through electricity and cooling water.
6. Application: welding of diamond saw blade, alloy tools, mining tools, copper tubes, electrical copper wires, copper bars, etc. Technical parameters of induction welding machine:| Main parameters of LSW-30 induction welding machine |
| Model | LSW-30 |
| Input voltage | 3 phase 380V, 50/60HZ or customized |
| Max input current | 50A |
| Max input power | 30KW |
| Oscillation frequency | 25-40KHZ |
| Duty cycle | 100% |
| Cooling water flow | ≥ 0.1Mpa, ≥25L/min |
| Cooling water pressure | ≥ 0.15-0.2MPa |
| Weight | 48KG |
| Dimension(L*W*H) | 690*290*600mm |
Whole set machine list item:| Item No. | Name of machine or parts | Specification | Quantity |
| 1 | LSW-30
Induction welding machine | - | 1 set |
| 2 | induction coils | - | 1 pcs |
| 3 | foot switch | - | 1 pcs |
| 4 | user manual | - | 1 copy |

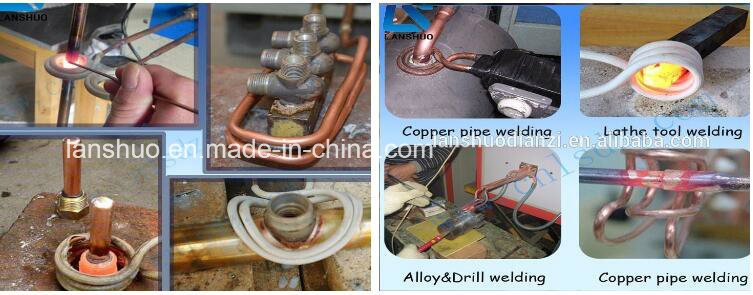

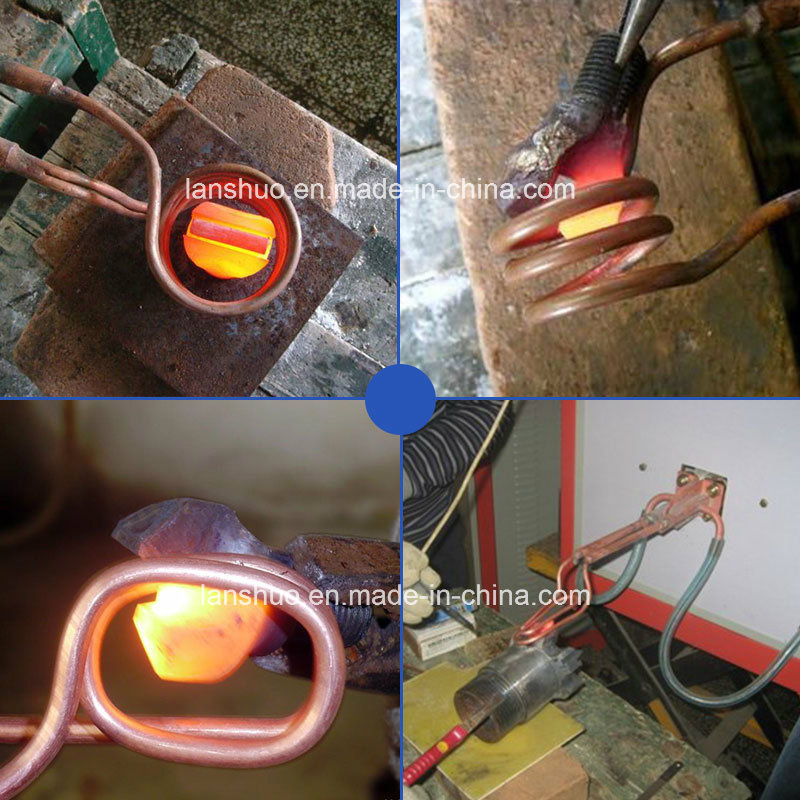

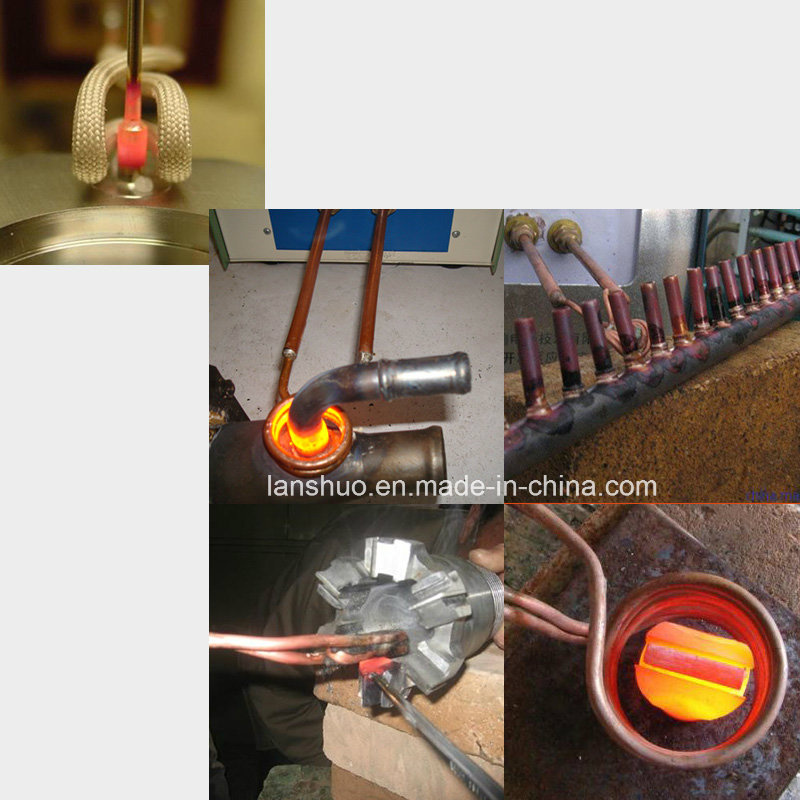

Application of induction welding machine1. metal tube welding:
Such as copper tube, steel tube, and aluminum tube's butt welding, plug welding and welding sets.
2. alloy cutter welding:
Such as alloy turning, milling cutter, planer, saw blades, reamer, boring knife.
3. carbide saw blade welding:
Diamond saw blade welding, marble saw blade welding, woodworking saw blade welding, cut glass piece of welding, cut aluminum welding.
4. metal welding:
Such as: towel rack, soap nets, towel holder, auto-accessories, moto accessories, metal terminals, hardware pieces, electric heating tube parts and fasteners.
5. customized service:
Make machine according to customers' actual working situation.
Packing&DeliveryPackaging: Induction welding machine wrapped with plastic films and foam first, then put it into a standard export wooden case and fasten at last. (Can be customized if needed.)
Delivery: Within 7 working days after receiving your payment.
Our Company
(1) Zhengzhou Lanshuo Electronics CO.,LTD,China. We are metal induction heating machine manufacturer with 15-year experience.
(2) Leading products include IGBT medium frequency induction heating equipment, IGBT super audio induction heating equipment, CNC quenching machine tool, IGBT medium frequency induction melting furnace, KGPS medium frequency induction melting furnace, open type water cooling tower, closed water cooling tower, etc.

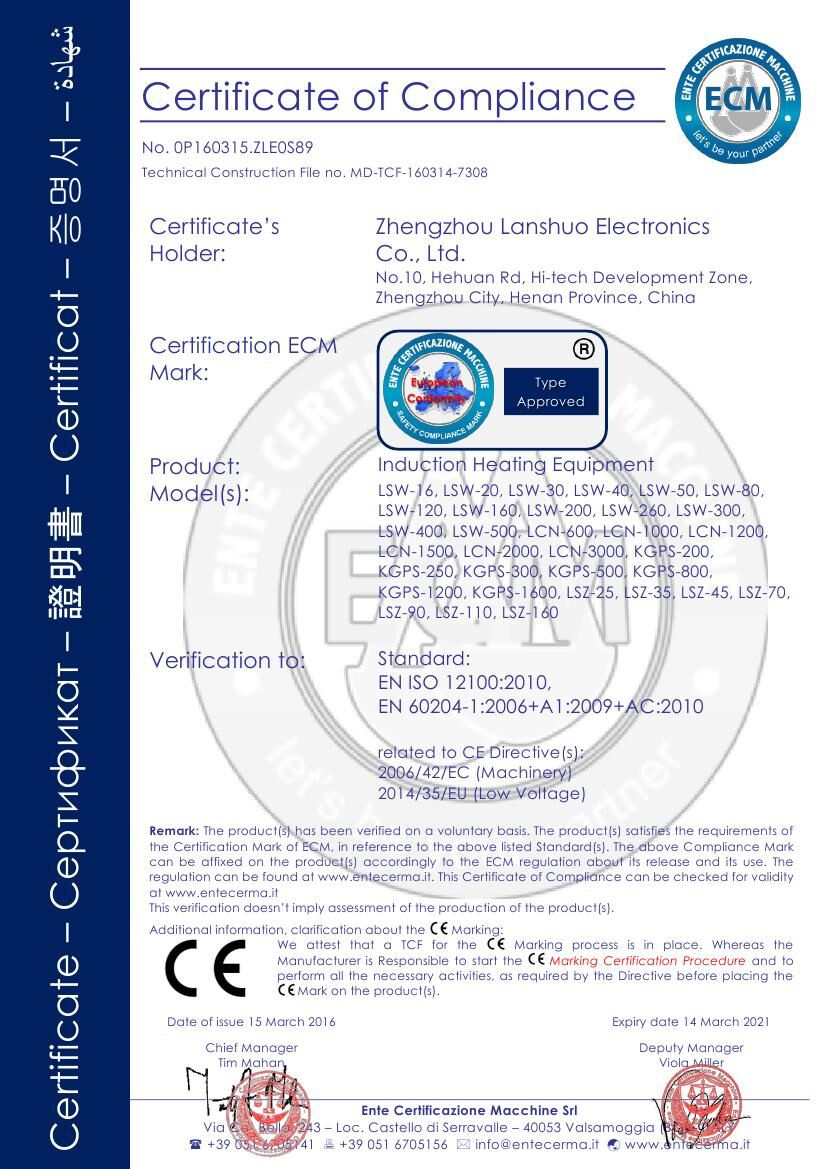

(3) CE certificate.
(4) OEM& ODM available.
(5) We have exported to UK, Austarlia, Pakistan, Egypt, Singapore, India, Vietnam, Mexico, Uganda, Ukraine, Serbia, Russia, Germany, Turkey, South Korea, Malaysia, the Philippines and other countries.
(6) We have senior engineers and technical researchers. Engineers are available to service overseas if needed.
