China Home Foundry Customized Ductile Iron Sand Casting Parts Without Defects

Name: China Home Foundry Customized Ductile Iron Sand Casting Parts Without Defects
Brand: tool-buy.com
SKU: 713484322
Availability: InStock
Rating: 4.3 (132 reviews)

Price:	US $ 0.2-15/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Shanghai Matech Machinery Manufacture Corporation Ltd.

Showroom Product Company Profile

Prod Model:	OEM 16070403
Product Material:	Ggg60, ASTM A536 80-55-06
Blank Process:	Sand Casting , Cast Iron
Casting Tolerance:	CT9-11 for Iron Casting
Machining Process:	CNC Machining , Drilling , Milling, Boring, Tappin
Machining Tolearnce:	From 0.005mm-0.01mm-0.1mm
Machined Surface Quality:	Ra 0.8-Ra3.2, According to Customer Requirement
Surface Finish Treatment:	Dacromat Coating, Finish Painting
Package For Ductile Iron Sand Casting PA:	Multiplayer Wood Box with Big Plastic Bag Inside
Lead Time:	45 Days
Service For Ductile Iron Sand Casting PA:	OEM, ODM
Type:	Chemical Hardening Sand
Surface Treatment:	Dacromat Coating, Finish Painting
Surface Roughness:	Ra 0.8-Ra3.2

Product Description

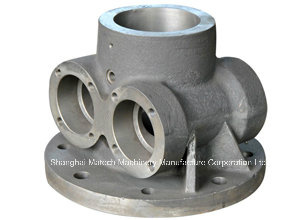

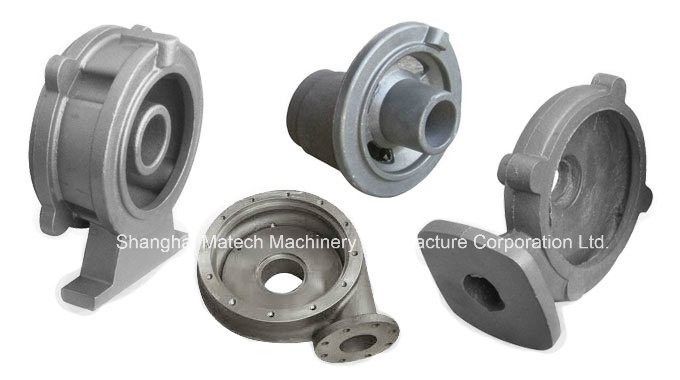

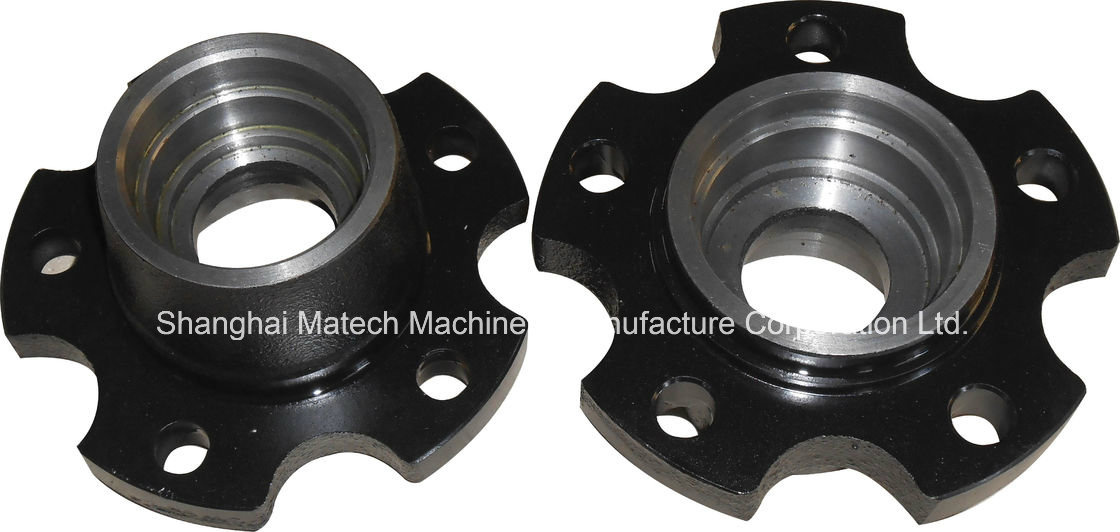

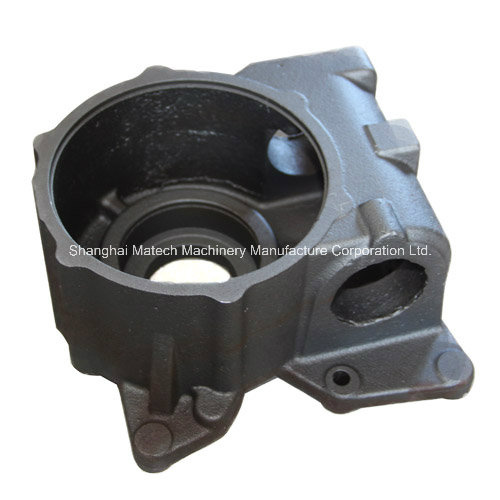

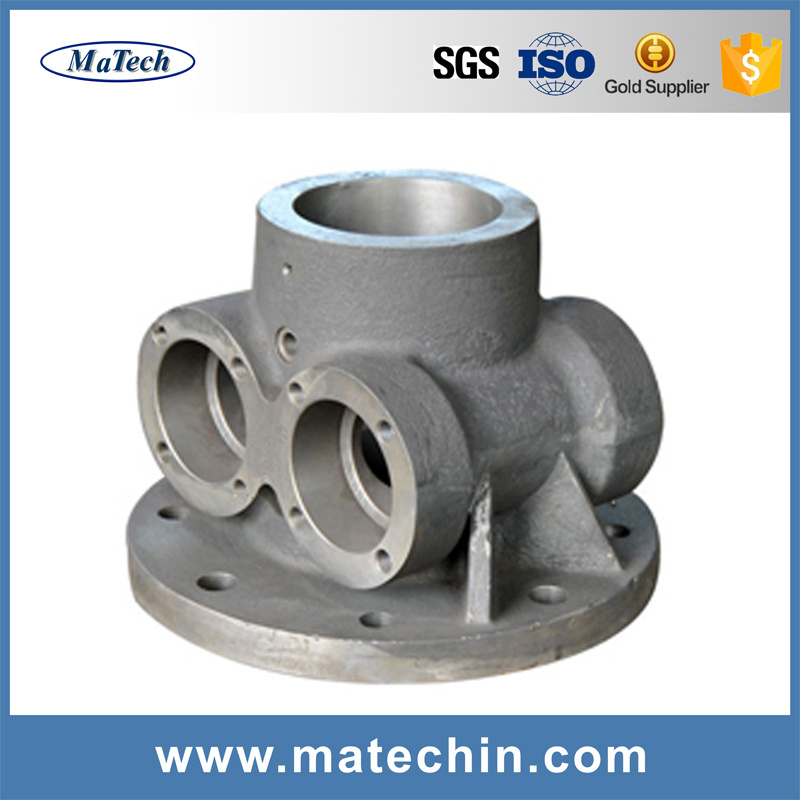

China Home Foundry Customized Ductile Iron Sand Casting Parts Without Defects

Item Name	China Home Foundry Customized Ductile Iron Sand Casting Parts Without Defects
General Products Application/Service Area	Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.
Main blank Process for Casting	Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding, Lost Wax Casting, Lost Foam Molding Casting etc.
Blanks Tolerance -Casting Tolerance	CT9-10 for Machine Molding Process, CT8-9 for Shell Molding and Lost Foam Molding Casting Process CT10-11 for Manual Molding Sand casting Process
Applicable Material	See Table Below (Ductile Iron Casting, Grey Iron Casting) OR According to customer requirement
Casting Blank Size /Dimensions	2 mm-2000mm / 0.08inch-79inch for casting iron, according to customer requirement
Casting Blank Weight	Range from 0.01kg-1000kg for casting iron
Applicable Machining Process	CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc.
Machining Tolerance	From 0.005mm-0.01mm-0.1mm
Machined Surface Quality	Ra 0.8-Ra3.2, according to customer requirement
Applicable Heat Treatment	Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching
Applicable Finish Surface Treatment	Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting etc.
MOQ	For cast iron: 100pcs For Machining: 50pcs
Lead Time	45days from the receipt date of deposit for Ductile Iron Sand Casting Parts

Ductile Iron Casting Material Comparison Table:

Cast iron with nomular graphite DIN EN 1563	Germany DIN 1693	France NF	Great Britain BS	Netherlands NEN	Sweden MNC	USA ASTM A536
EN-GJS-350-22-LT	GGG-35.3	FGS 370-17	370/17	GN 38	0717-15	----
EN-GJS-400-18-LT	GGG-40.3	----	----	----	----	60-40-18
EN-GJS-400-15	GGG-40	FGS-400-12	420/12	GN 42	0717-02	60-40-18
EN-GJS-400-10	----	----	420/12	----	----	65-45-12
EN-GJS-500-7	GGG-50	FGS-500-7	500/7	GN 50	0727-02	65-45-12/ 80-55-06
EN-GJS-600-3	GGG-60	FGS-600-3	600/3	GN 60	0732-03	80-55-06
EN-GJS-700-2	GGG-70	FGS-700-2	700/2	GN 70	0737-01	100-70-03
EN-GJS-800-2	GGG-80	FGS-800-2	800/2			120-90-02
EN-GJS-1000-5 (DIN EN 1564)	GGG-100B/A	----	----	----	----	850-550-10
EN-GJS-AX NiSiCr35 5 2	GGG- NiSiCr 35 5 2	FGS- Ni35Si5Cr2	S5S	----	----	Type D-5S

Grey Iron Casting Material Comparison Table:

Cast iron with lamellar graphite DIN EN 1561	Germany DIN 1691	France NF	Great Britain BS	Netherlands NEN	Sweden MNC	USA ASTM A48
EN-GJL-150	GG-15	Ft 15 D	Grade 150	GG 15	01 15-00	20 B / 25 B
EN-GJL-200	GG-20	Ft 20 D	Grade 180/220	GG 20	01 20-00	25 B / 30 B
EN-GJL-250	GG-25	Ft 25 D	Grade 220/260	GG 25	01 25-00	35 B / 40 B
EN-GJL-300	GG 30	Ft 30 D	Grade 300	GG 30	01 30-00	40B / 45 B

FAQ:

1. Are you a manufacturer or a trading company?

We are a professional manufacturer with over 15 years' export experience for designing and producing vehicle machinery parts.

2. How can I get some samples?

If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.

3. Can you make casting according to our drawing?

Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.

4. Can you make casting based on our samples?

Yes, we can make measurement based on your samples to make drawings for tooling making.

5. What's your quality control device in house?

We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting.

Shanghai Matech Machinery Manufacture Corporation, branch of Matech Industry, provide high quality sanitary valve, ball valve, gate valve for food, wine, chemistry and oil industry. As a 15 years manufacture in foundry and machining business areas Matech also produce iron casting, steel casting, aluminum casting, stainless steel casting and forging parts for vehicle and agriculture machine, pump and valve, transportation system and other industrial customers all over the world.

We are focus on metallurgical technology, foundry engineering, manufacturing and assembly test to fulfill customers' high requirements and secure high reliable quality for each delivery. As a successful supplier in supplying products to both European and North American market and quality system certified manufacture we prize the honor we have gained from the customers and market on quality, delivery, service and cost control. Matech Team is always ready to listen to the customer's voice and build value to our customer's application and business. We provide early involvement on design support and review input eg. Manufacturing feasibility analysis for the specified project of our customers when this is needed by our cutomers.

Matech team members have more than twenty years experience on Valve making, foundry, mechanical engineering, manufacturing and quality assurance. MATECH promise and secure the quality for all the products delivered.

You are welcome to enquire and order products from Matech Industry, including Valve and Pump, mechanical parts made by iron casting, steel casting, stainless steel casting, aluminum casting, forging and fabrication. We produce products according to your special requirements and the standards of European or American Countries.
