| Prod Model: |
BX-600 |
| Chipper Type: |
Disc Type |
| Quantity Of Knife: |
4-6 PCS |
| Input Diameter: |
130mm-350mm |
| Wood Chips Size: |
20mm-45mm |
| Type: |
Vertical Uniaxial Wood Router |
| Remark: |
Inclined Input |
| Keyword 1: |
Small Wood Chipper |
| Keyword 3: |
Wood Chipper Shredder |
| Keyword 2: |
Wood Chipping Machine |
| Keyword 4: |
Wood Chips Making Machine |
| Certification: |
SGS |
Product Description
Small Industrial wood chipper shredder made in china | Model | knife Qty
(pcs) | Input opener
(mm) | Input Dia
(mm) | Chips size (mm) | Power
(kw) | Capacity
(t/h) |

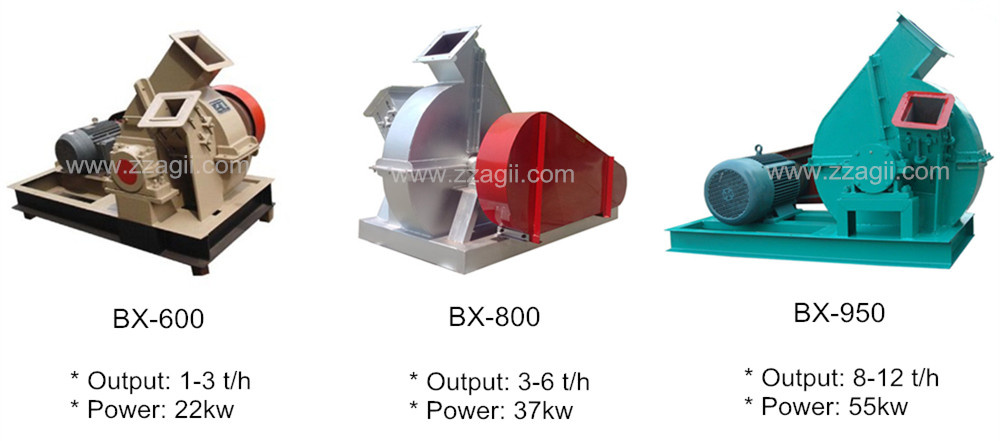

| BX-600 | 3 | 150*140 | 130 | 20-35 | 22 | 1-3 |
| BX-800 | 4 | 170*160 | 150 | 20-35 | 37 | 3-6 |
| BX-950 | 6 | 220*210 | 200 | 25-35 | 55 | 8-12 |
| BX-1200 | 6 | 350*250 | 250 | 25-40 | 90 | 12-18 |
| BX-1400 | 6 | 460*350 | 300 | 25-40 | 110 | 20-30 |
| BX-1600 | 6 | 540*380 | 350 | 30-45 | 160 | 30-40 |
Description of wood chipper shredder:It is an ideal equipment of processing the raw materials including wood branch, round logs, square blocks, and wood pieces into small pieces wood chips. The BX series Wood Chipper can solve the problem of large difficult wood; The Wood Chipper can handle many raw materials like wood log, bamboo;tree branches and wood fiber rod.
Wood Chipper Machine is widely used in the production of paper making, edible fungus, shaving board, sawdust, high density board, fiber board and so on.

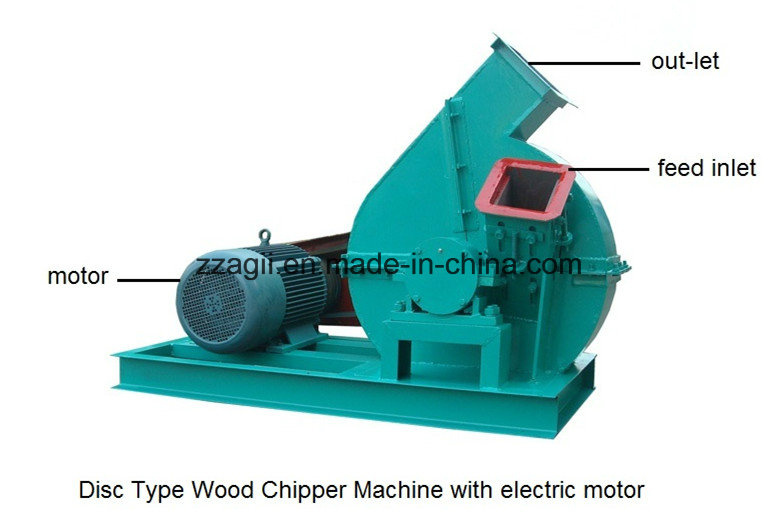

How the Wood Chipper Works:It is mainly made up of the base, feed port, cutter head, casing, blade and electronic control box.
This machine can adjust cutting blade as needed, produce different specifications and thickness of the
Wood chip.
The wood material is fed into machine chipping part through feed port, when it touches to cut blade,
Along with the cutting knife plate ofHigh-speed rotation to peel and cut, at last, these wood pieces are
Sent out through high speed steam-flow produced by fan blade in the knife plate.
Suitable material for making wood chips:Saw dust • Wood Chips • Wood logs • Tree branch • Wheat Straw • Peanut-shell • Rice husk •
Sugar Cane Bagasse • Coffee Husk • Paddy Straw • Sunflower Seed Husk • Sunflower Stalk • Reeds •
Cotton plant Stem • Tobacco waste • Mustard Stalk • Jute waste • Bamboo Dust • Tea waste • Palm husk • Soybeans husk and many other agro and forest wastes, which size is about 30mm.
Application of electric wood chipper:Wood chipper machine can cut wood, branches, bamboo into small pieces, which is extensively applied in the material-preparing of pulp paper-making, OSB and MDF production and also in the individual wood chips production, different capacity we can supply, please contact for more news.

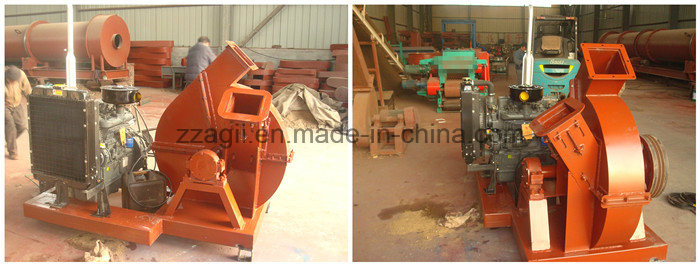

Diesel Engine Driven Wood Chipper:

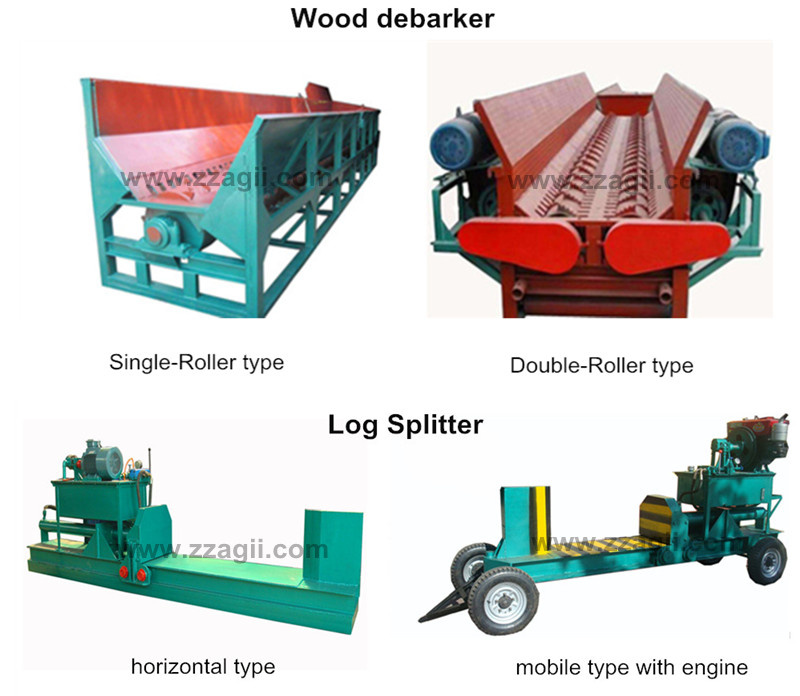

Related Woodworking Machinery:Wood Crusher
Wood log splitter
Wood debarking machine
Wood Saw Machine
Wood Shaving Machine
Wood Pellet Mill
Wood Briquette Machine
