| Prod Model: |
J23-16T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Kingwell |
| Warrenty: |
1 Year |
| Color: |
Optional |
| Working Voltage: |
Optional |
| Price: |
Best Price |
| Type: |
General Punching Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Automatic |
| Power Source: |
Hydraulic Pressure |
| Precision: |
High Precision |
Product Description

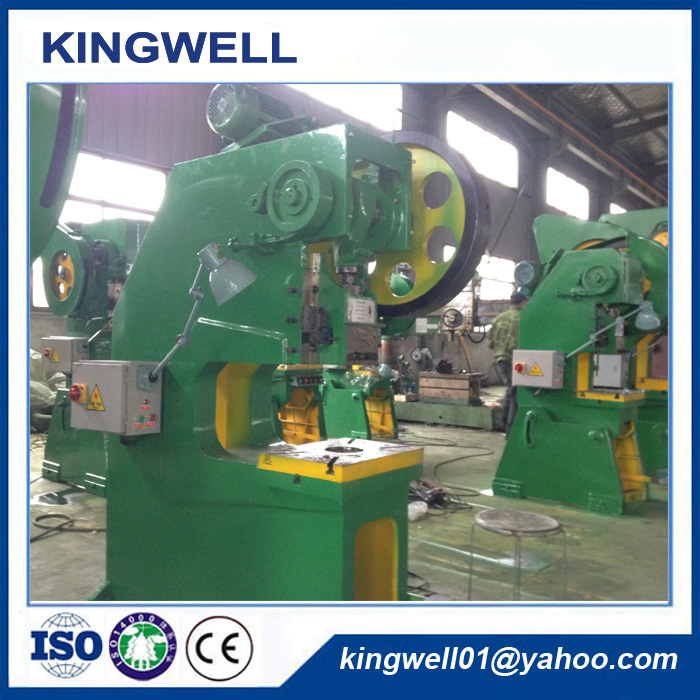

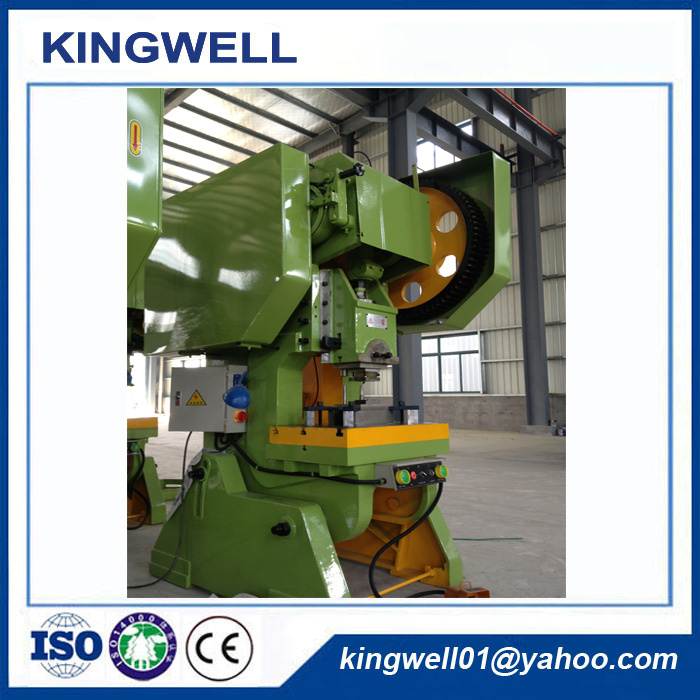

J23-16T Power Press / Punching Machine
PRODUCTION DESCRIPTION: This press machine is the open type which uses connecting rod slider constitution as working constitution.
Characteristic of the press machine: The connecting rod slider constitution is rigidity, so the motivation of the slider is compulsory. The stroke and motion curves are fixed. It has the open type machine body, when working, it opens from three directions, and it is easy to load and unload the moulds. By adjusting, the machine body can incline fixed angle, so as to the stamping parts and leftover material slide down from the mould. Thus it is easy to realize punch mechanization and automation.
Because this press machine is easy to operate, it is widely used. It can use in punching and curving and so on. When use the press machine, it can calculate working pressure accord to pressure graph. The working pressure must in the certain of the graph intensity.
TECHNICAL PARAMETER: | No. | Name | Unit | Specification | Notes |
| 1 | Nominal pressure | KN | 160 | |
| 2 | Slide stroke | mm | 60 | |
| 3 | No. of slide stroke | Time/m | 100 | |
| 4 | Max. sealing height | mm | 160 | |
| 5 | Adjustment of sealing height | mm | 40 | |
| 6 | Distance of the central slide and machine body | mm | 160 | |
| 7 | Dimension of working table (L-R x F-B) | mm | 300x450 | |
| 8 | Dimension of working table bed opening | mm | Φ100 | |
| 9 | Dimension of the bottom slide (L-R x F-B) | mm | 180x220 | |
| 10 | Dimension of shouk ( diameter x depth) | mm | Φ40x60 | |
| 11 | Distance between the uprights of the machine body | mm | 220 | |
| 12 | Thickness of the base plate | mm | 50 | |
| 13 | Max. inclining angle of the machine body | degree | 25° | |
| 14 | Motor | Power | KW | 2.2 | |
| Rotation speed | Turn/m | 1440 | |
| Model | | Y100L-4 | |
| 15 | Dimension | Length | mm | 1150 | |
| Width | mm | 900 | |
| Height | mm | 1910 | |
| 16 | Weight | KG | About 900 | |
WE, Jiangsu Kingwell Machinery Co., Limited exported different kinds of metal processing machines and sanitation, such as shearing machine, press brake, plate bending machine, profile bending machine, leveling machine, hydraulic press, road sweeper, floor scrubber, patrol car, golf cart and power punching machine to the market over the passing 20 years.
Jiangsu Kingwell Machinery Co., Limited has many isolated manufacturing facilities/plants, which locating Nantong, Jiangsu Province, to manufacture around 2000 machines annually. We not only supply the reliable and durable machines but also supply good service/technical support after sales through its experienced staff.
The machines manufactured by us are widely being used in various fields, such as petro-chemical industry, ship construction, metal construction, marine industry, pressure vessels, bridge construction, water/oil tanker, wind energy, automobiles, cooking utensils, polymer material and the other fields.
The shearing machine can shearing the plate thickness from 1mm to 60mm and the shearing length from 1300mm to 13000mm. For the press brake, the bending thickness can be from 1mm to 50mm and the bending length can each 24000mm.
Jiangsu Kingwell Machinery Co., Limited will continue to endeavor to present products of international standard; We will never make compromises from what we had offered.
We are involving in the technique innovation and technical improvement with the market, we have been offering, and will continue to supply alternatives quality assured metal processing machines.
