| Prod Model: |
CK64200 |
| Control System Of CNC Milling Machine: |
Fanuc ,Simens, or Chinese Brand |
| Machining Parts: |
Flange, Wheel Turbine,Cylinder, Shaft, etc |
| Max.Swing Over The Bed: |
2000 mm |
| Max.Length Of Work-Piece: |
700 mm |
| Max. Weight Of Work-Piece: |
2 T |
| Chuck Diameter: |
1600 mm |
| Delivery Time: |
15-30 Days |
| Installation And Commissioning: |
Available for Foreign on-Site Service |
| Quality Warranty Period: |
One Year Quality Warranty |
| Customized Lathe Machine: |
Manufacture Customized Lathe |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Double-tool Holder CNC Lathe |
| Power Source: |
Mechanical Drive |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |

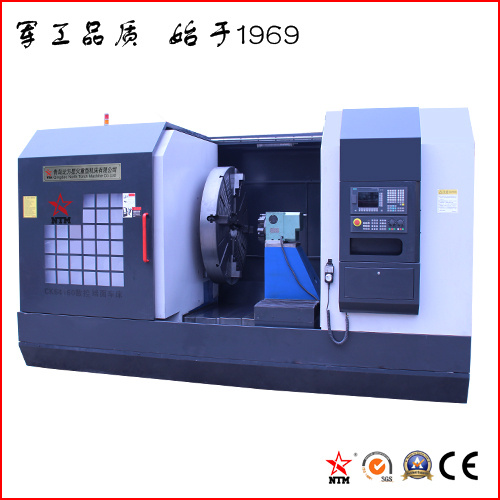

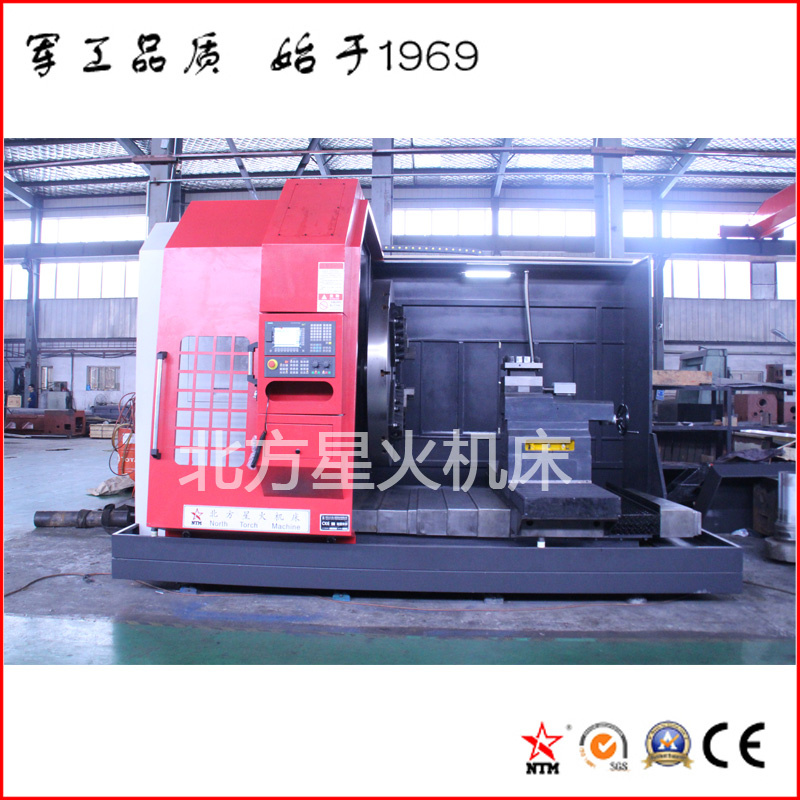

Product Description
High Quality Professional Lathe Machine
For Turning Tyre Mold,Grooves, Flange,Bearing,Wheel, Shaft,Tire Mold, Railway Parts,Wheel Hub Turbine,etc
1. Outstanding Characteristics:
All components of machine are imported foreign famous brands, such as FANUC or SIMENS Control System/ Schneider Electrical Control system, Japanese NSK Bearing, ABB Motor& transmission box/gear box, etc. We can also configurate per customer's special request and demands. Our Engineers can design different configurations according to different workpieces characteristics.
1.) This kind of lathe can be designed into CNC Milling Lathe which has functions of Milling and Turning, including screw thread, conical surface, curved surface, internal boring, etc.
2.) This lathe adopts frequency control system as its main drive system; driven by frequency control motor, the speed of main-shaft realizes stepless speed regulating, thus having different speeds to meet rational cutting speed requirements for the machining of different type of work-piece.

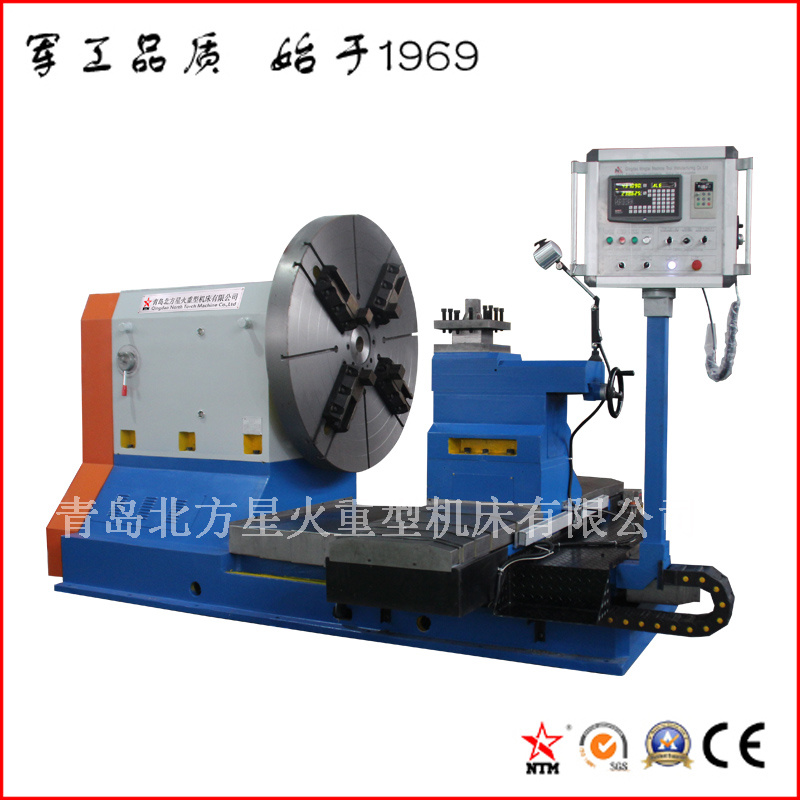

3.) This lathe consists of lathe bed, selective headstock, tailstock, blade adapter, electric control system, lubrication system, and so on. Selective headstock and tailstock are installed at the left and right side of lathe bed respectively.
4.) The main shaft can realize stepless speed regulating in a range of 10~300r/min; and the main spindle front bearing adopts high-precision double row cylindrical roller bearings, having high-degree of rigidity and rotary precision and easy to adjust.
5.) High Rigidity, Stability and Precision Maintenance: All castings are made of high-strength meehanite HT250. which is particularly suitable for heavy cutting. All large castings stand the test of annealing and vibration aging and internal stress is eliminated, so the overall precision is greatly enhanced and processed parts are found with high geometric accuracy.
Our Principle : Maximize Customer's Profitability under the minimum invest cost.
Customized Lathe is Our Special Characteristics
Optional Selection:
1. Bearing, Gear Box,CNC Control System can be specified by customer

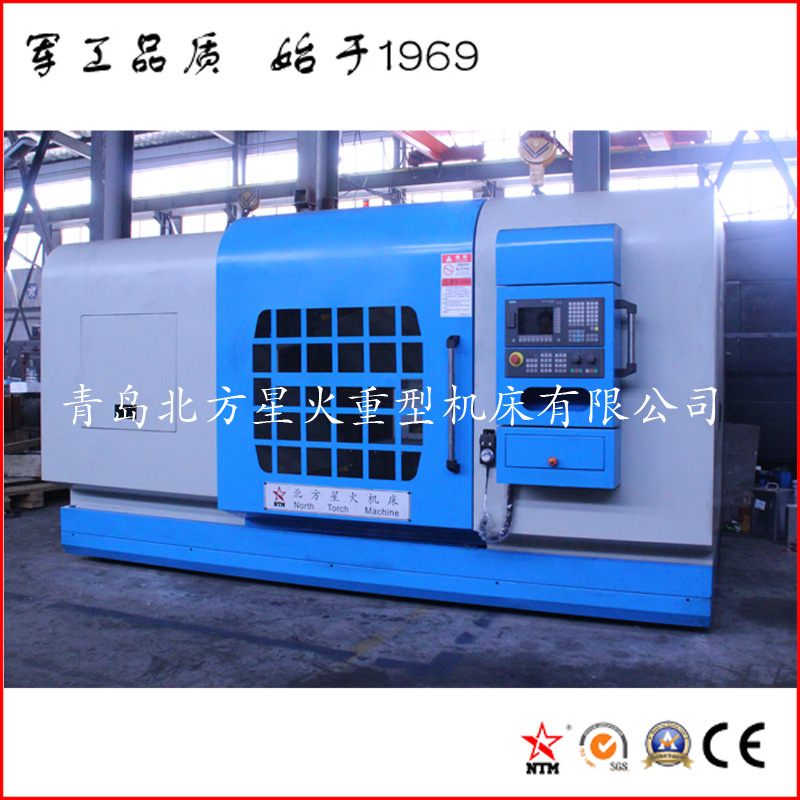

2. Metal Shield/Flash Guide for Machine can be optional
Application: This is a CNC horizontal roller lathe which is suitable for high-speed steel and carbide cutting tool to implement coarse and fine stock removing and cutting on the outer cylindrical surface of roller of different materials; it also can be used for rough and finish machining of other shaft parts.
2. Standard Technical Parameters | Name | CK64100 | CK64125 | CK64160 | CK64200 | CK64250 |
| Description | Unit |
| Max. Swing over bed | mm | 1000 | 1250 | 1600 | 2000 | 2500 |
| Max. Swing Over the skateboard | mm | 600 | 800 | 1200 | 1500 | 1800 |
| Max. Weight of Work-piece | T | 1 | 1 | 2 | 2 | 3 |
| Max. Length of Work-piece | mm | 700 | 700 | 700 | 700 | 700 |
| Gears of Spindle Speed | / | Infinitely Variable Speed/step-less speed |
| Range of Spindle Speed | r/Min | 10-300 | 10-200 | 10-160 | 10-160 | 4-80 |
| Chuck Diameter | mm | 800 | 1000 | 1250 | 1600 | 2000 |
| Bearing Diameter of Main Front Shaft | mm | 190 | 190 | 220 | 220 | 300 |
| X,Z X,Z-Axis Feed Range | mm/Min | 0-3000 |
| Horizontal Stroke | mm | 500 | 650 | 800 | 1000 | 1250 |
| Longitudinal Stroke | mm | 700 | 700 | 700 | 700 | 700 |
| Main Driving Motor | Kw | Variable Frequency 11Kw-4 | Variable Frequency 15Kw-4 | Variable Frequency 22Kw-4 | Variable Frequency 30Kw-4 | Variable Frequency 45Kw-4 |
Rermarks:
1. The above 5 models of CNC Lathes are the standard configurations, we can also design and manufacture customized lathe according to the user's workpiece features.
2. This series horizontal Lathe Machines have been exported to Norway, Thailand, Romania, Iran, Russia, Chile for machining railway parts, automobile parts, mining and metallurgy, shipping building, wind power and other machinery industry.
Foreign Customer's Praise for our Product and Management3. After-sale Service and Maintenance
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!
Qingdao North Torch Machine Co., Ltd was established in the 60s of last Century. It originally belonged to Liuting Airport Military Enterprise of North China Sea Fleet Aviation (Aviation Machinery Plant), and it is primarily responsible for aircraft maintenance, spare parts processing, middle and small sized machinery manufacturing, etc. In accordance with the document issued in 1999 by central military commission and the state council, the company was changed from military enterprise into a private company, and developed continuously.
CNC Heavy-duty horizontal lathe, roll lathe, CNC End-Face lathe, automobile wheel hub lathe, large floor-type lathe and floor-type boring and milling machine are the leading products of the company. These machines are widely applied to the energy & transport, mining &metallurgy, railways & shipbuilding, pipe molding, automobile parts, wind power chemical industry and other machinery manufacturing industries.
We provide the perfect CAD/CAM information processing and 3D design software, combined with domestic higher-educational institutions to form a science and technology association. We averagely launch more than 5 high technical patent products annually.
The company has passed ISO9001 international quality management system certification, and become one of the 100 progressive growth enterprise supported by the Qingdao Government. It is also an enterprise supported by the national innovation funds. As a key enterprise in Shandong province, we are the first enterprise that researched and manufactured the large floor-type lathe series.
With the concept of "diversity and pursuit of excellence", we aim to offer superior products and service to our customers.
