China Premium Galvanized Gabion Box for Retaining Wall
| Price: |
US $ 10-30/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
300/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
ZGB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mesh Wire: |
2.2mm, 2.7mm, 3.0mm |
| Selvedge Wire: |
2.7mm, 3.4mm, 3.9mm |
| Lacing Wire: |
2.2mm |
| Country Of Origin: |
China |
| Material: |
Galvanized Iron Wire |
| Application: |
Construction Wire Mesh |
| Hole Shape: |
Hexagonal |
| Usage: |
Military Applications |
| Technics: |
Woven |
| Surface Treatment: |
Galvanized |
| Size: |
2m x 1m x 1m |
| Aperture: |
80*100mm |
Product Description
Gabion Box-a double-twisted wire mesh container of variable sizes, uniformly partitioned into internal cells, interconnected with other similar units, and filled with stone at the project site to form flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.Gabion Mattress-a double-twisted wire mesh container uniformly partitioned into internal cells with relatively small height in relation to other dimensions, having smaller mesh openings than the mesh used for gabions; revet mattresses are generally used for riverbank protection and channel linings. | Table 1-Sizes for Gabion Box and Gabion Mattress |
| L (m) | W (m) | H (m) | # of Cells |
| 2 | 1 | 1 | 2 |
| 3 | 1 | 1 | 3 |
| 4 | 1 | 1 | 4 |
| 2 | 1 | 0.5 | 2 |
| 3 | 1 | 0.5 | 3 |
| 4 | 2 | 0.3 | 4 |
| 6 | 2 | 0.3 | 6 |
| Table 2-Standard Mesh Wire |
| Mesh Type | D (mm) | Mesh Tolerance | Mesh Wire (mm) |
| 8x10 | 83 | ±10% | 2.70, 3.00mm |
| 6x8 | 64 | ±10% | 2.20mm |
| Table 3-Standard Wire Diameters |
| Wire Diameter ø mm | 2.20 | 2.70 | 3.00 | 3.40 | 3.80 |
| Wire Tolerance (±) ø mm | 0.10 | 0.10 | 0.10 | 0.10 | 0.10 |
| Min. Qty of Zinc gr/m2 | 214 | 244 | 259 | 259 | 275 |

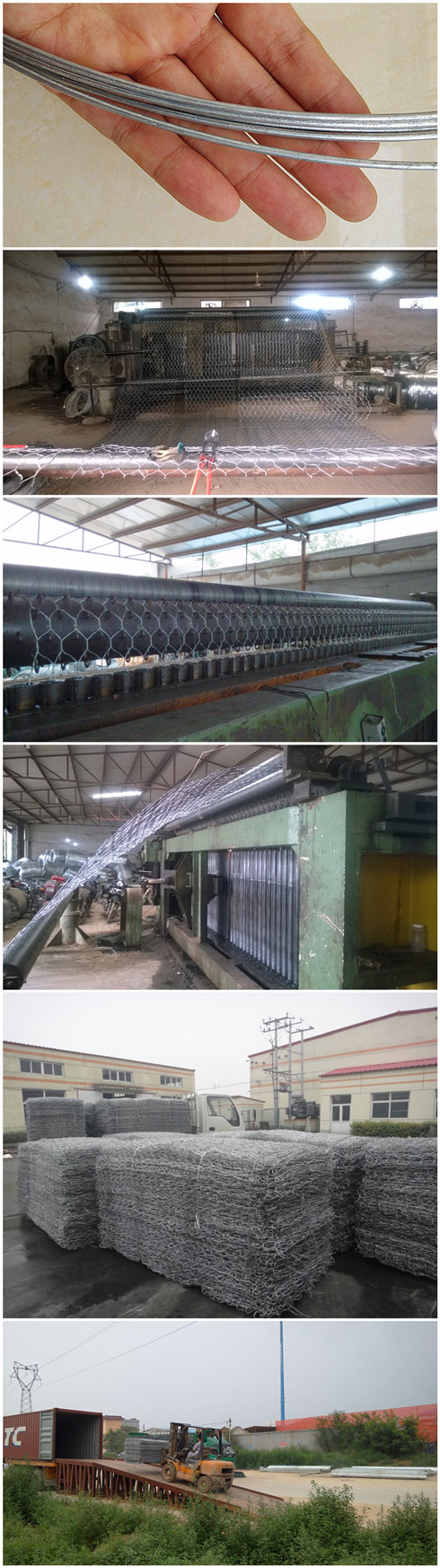

Double-twisted wire gabions and gabion mattresses are classified according to coating, as follows:Style 1, consists of double-twisted wire mesh made from wire which is zinc coated before being double-twisted into mesh. Fasteners, lacing wire, and stiffeners are produced from zinc-coated wire.Style 2, consists of double-twisted wire mesh made from wire which is coated with Zn-5A1-MM before being double-twisted into mesh. Fasteners, lacing wire, and stiffeners are also produced from Zn-5A1-MM coated wire.Style 3, consists of double-twisted mesh, lacing wire, and stiffeners as Style 1 & 2 and overcoated with PVC. Fasteners shall be of stainless steel wire.Gabions Production Process:

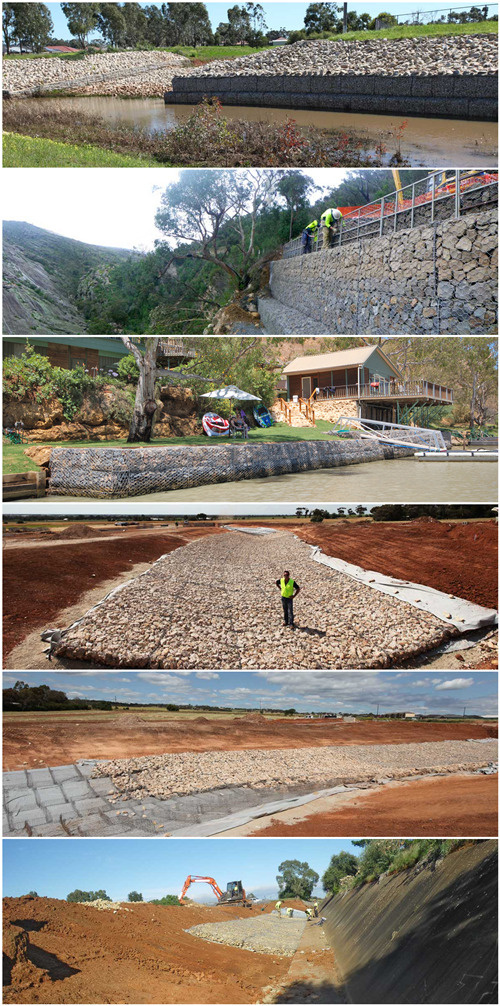

Case Study of Gabions and Gabion Mattresses:
Company information:Anping County Zhuoda Hardware Mesh Co., Ltd., established in 2007, is a professional manufacturer engaged in production and sale of Gabions, Gabion Box, Gabion Basket, Welded Gabion, Welded Wire Mesh, Welded Wire Fence, Stainless Steel Wire Mesh etc. Dedicated to strict quality control and thoughtful customer service, our experienced staffs are always available to meet your requirements and ensure customer satisfaction. In recent years, our company has introduced a series of advanced equipment including Gabion Weaving Machine, Welding Machine, Wire Mesh Knitting Machine and Packing Machine. In addition, all of our products quality exceed ASTM or EN standard and sell well not only in all cities and provinces around China but also to clients in such countries and regions as USA, Australia, Philippines, Thailand, Brazil, Chile, Sweden, Norway, Saudi Arabia and United Arab Emirates etc. ISO 9001:2008 Certificate Our quality management system has been accessed and registered against ISO9001:2008 Quality Management Standards with Production and Service of Hexagonal Wire Mesh, Gabion Box, Gabion Basket.
