Disc coupling: by definition, transmits torque from a driving to a driven bolt tangentially on a common bolt circle. Torque is transmitted between the bolts through a series of thin, stainless steel discs assembled in a pack. Misalignment is accomplished by deforming of the material between the bolts.

A disc coupling is a high performance motion control (Servo) coupling designed to be the torque transmitting element (by connecting two shafts together) while accommodating for shaft misalignment. It is designed to be flexible, while remaining torsionally strong under high torque loads. Typically, disc couplings can handle speeds up to 10,000 RPM.

There are two different styles of disc coupling:

Single Disc Style couplings are composed of two hubs (the ends of the coupling, which are typically made from aluminum, but stainless steel is used as well) and a single, flat, stainless steel disc spring

Double Disc Style coupling is also composed of two hubs, but has an additional center spacer sandwiching two disc springs. The center spacer can be made out of the same material as the hubs, but is sometimes available in insulating acetal, which makes the coupling electrically isolating.

The difference between the two styles is that single disc couplings cannot accommodate parallel misalignment due to the complex bending that would be required of the lone disc. Double disc styles allow the two discs to bend in opposite directions to better manage parallel offset. The discs are fastened to the hubs (and center spacer on double disc styles) with tight fitting pins that do not allow any play or backlash between the disc and the hubs. The discs can be bent easily and as a result, disc couplings have some of the lowest bearing loads available in a motion control coupling.

Torsionally stiff and still flexible, disc couplings are a great solution for high speed applications. The downside is that they are more delicate than the average coupling and can be damaged if misused. Special care should be taken to ensure that misalignment is within the ratings of the coupling.

Advantages of disc coupling

1.  Eliminates the need for lubrication and coupling maintenance

2.  Coupling can be inspected without disassembly

3.  Condition of disc packs can be inspected with a strobe light while the machine is running

4.  Note: It is not recommended that couplings be operated without coupling guards.

5.  Easy to assess equipment misalignment

6.  Torsionally rigid without any backlash

7.  No wearing parts

8.  Resistance to harsh environments

9.  Long life when properly sized and aligned

10. High power density (higher torque for a given outside diameter)

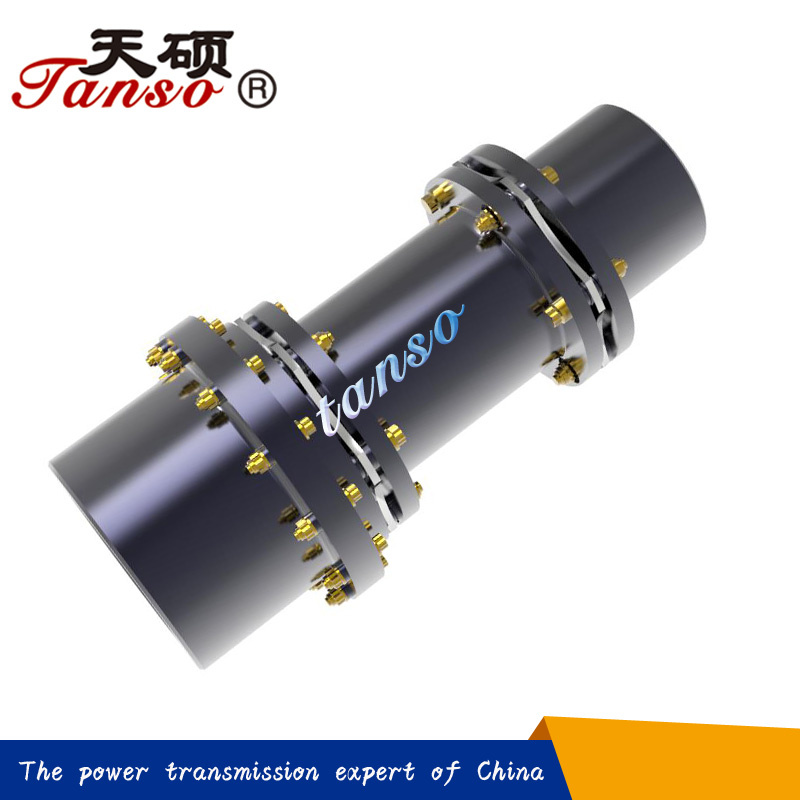

TAG series

• Main choice for middle/high speed applications
• Factory-assembled middle transmitting unit, dynamic balance precision well kept, easy to mount/dismount
• Big hub design for relatively large allowable shaft diameters
• Have all the advantages of TAL
• Suitable for longer spacer distance applications compared with TAL

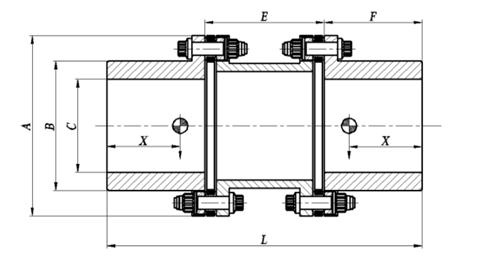

Model NO.			Power/Speed		Nominal torque		Peak torque		Max speed			A	B	C(mm)max		E(mm)		F		L(mm)
			(Kw/rpm)		(KNm)		(KNm)		(r/min)			(mm)	(mm)					(mm)
TAG6115			0.072		0.68		2.4		32000			146	98	70		110		75		260
TAG6135			0.16		1.52		3.3		28000			165	119	85		110		90		290
TAG6152			0.22		2.1		6.1		25000			187	140	100		120		105		330
TAG6175			0.39		3.7		10.8		23000			215	162	115		130		120		370
TAG6196			0.49		4.6		12.4		21000			238	182	130		160		140		440
TAG6210			0.54		5.15		14.2		20000			254	203	145		160		155		470
TAG6231			0.86		8.21		24.1		18000			273	217	155		160		165		490
TAG6247			1.28		12.22		32		17000			297	238	170		160		180		520
TAG6272			2.16		20.62		45		16000			324	259	185		175		195		565
TAG6300			2.9		27.69		52.9		14000			350	273	195		195		205		605
TAG6330			3.46		33		78		12000			394	308	220		220		230		680
TAG6360			4.13		39.44		101		10000			420	336	240		250		250		750
TAG8212			0.86		8.21		24.1		20000			254	203	145		160		155		470
TAG8233			1.28		12.22		32		18000			273	217	155		160		165		490
TAG8248			2.16		20.62		45		17000			297	238	170		160		180		520
TAG8274			2.9		27.69		52.9		16000			324	259	185		175		195		565
TAG8302			3.46		33		78		14000			350	273	195		195		205		605
TAG8333			4.13		39.44		101		12000			394	308	220		220		230		680
TAG8363			6.6		63		140		10000			420	336	240		250		250		750
TAG8396			8.5		81.11		197		9500			452	378	270		270		290		850
TAG8425			11		105		217		9000			487	406	290		290		310		910
TAG8457			14		133.7		320		8500			527	420	300		310		320		950
TAG8493			17		162.3		355		8000			563	455	325		320		340		1000
TAG8525			21		200.5		390		7500			617	476	340		335		360		1055
TAG8570			26		248.3		570		7000			648	490	350		355		370		1095
TAG8610			34		324.7		730		6000			688	546	390		370		410		1190
TAG0365			8.5		63		140		10000			420	336	240		250		250		750
TAG0400			11		81.11		197		9500			452	378	270		270		290		850
TAG0430			13		105		217		9000			487	406	290		290		310		910
TAG0460			16		133.7		320		8500			527	420	300		310		320		950
TAG0496			20		162.3		355		8000			563	455	325		320		340		1000
TAG0537			25		238.75		548		7500			617	476	340		350		360		1055
TAG0580			35		334.25		770		7000			648	490	350		370		370		1095
TAG0630			42		401.1		920		6000			688	546	390		400		410		1190
