| Prod Model: |
20 ton |
| Weight: |
5- 200 Kg |
| OEM: |
OEM Available |
| Capacity: |
500 Pieces Per Month |
| Casting Method: |
Sand Casting |
| Casting Form Material: |
Sand |
| Casting Metal: |
Cast Iron |
| Casting Form Usage Count: |
100000 |
| Surface Treatment: |
Shot Blast, Polishing |
| Coating: |
Primer Coating ,Finish Coating |
| Certification: |
ISO14001,Ts16949,Ohsas18001 |
Product Description

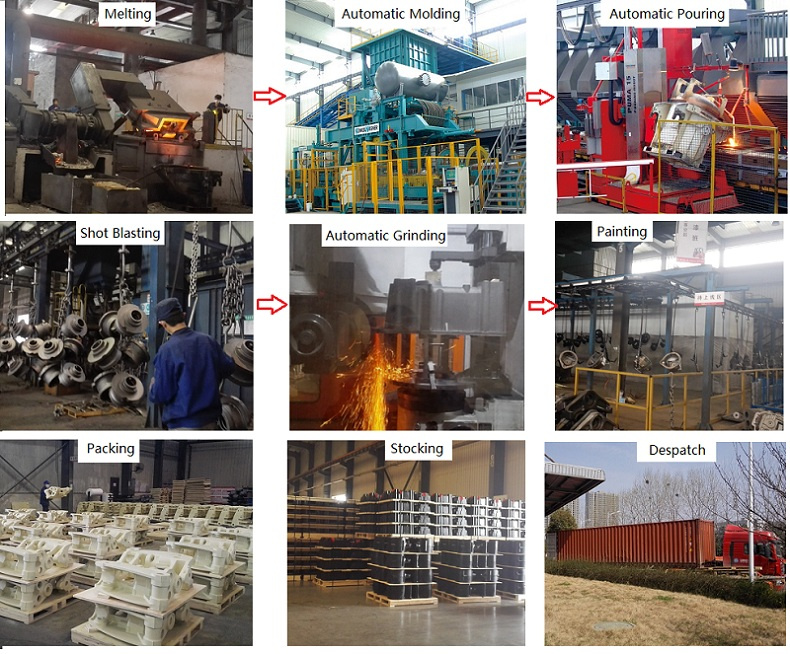

| Green sand foundry line---KW Foundry Line | |
| 1 | Foundry Process | KW Line,Green sand | |
| 2 | Weight | 5-200 KG | |
| 3 | Material | Gray iron, Ductile iron | |
| 4 | Max Dimensions | 1130*650*400 | |
| 5 | Min wall thickness | 5mm | |
| 6 | Main products | Transmission, Housing, Case, Valve, Hub, Wheel, Axle | |
| 7 | Processing equipment | CNC, Horizontal Center, Vertical Center, lathe, milling machine, boring machine, planer, grinder, Saw | |
| 8 | Products application | Forklift, Engineering Machinery, Agricultural Machinery, Automotive Industry,Port Machinery, Railway, etc. | |
| 9 | Standard | ISO, DIN, EN, BS, ASTM, JIS ISO, DIN, EN, BS, ASTM, JIS | |
| 10 | Free capacity | 1000 ton per month for KW Foundry Line | |
| 11 | Certification | TS16949, ISO9001,ISO14001,OHSAS18001,GSG | |
| 12 | Overseas Market | America, Europe, Asia, Australia | |
| 13 | Website | www.hfzdc.com.cn | |
Advantages :
- Over 40 years experience

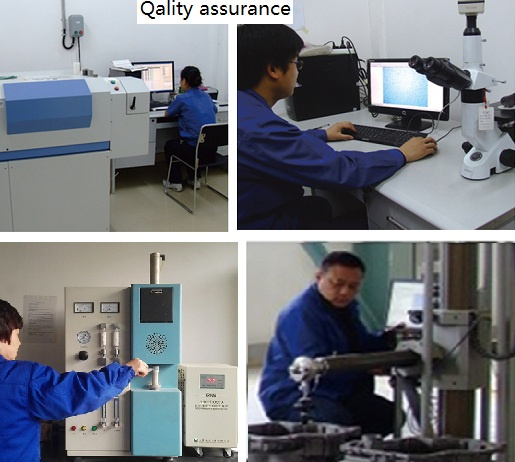

- High quality control, Lean management , Competitive price, Delivery on time.
- Small quantity & Large quantity acceptable
- OEM available
- Adequate free capacity
Brief Introduction :
Hefei Casting & Forging Factory is a core enterprise of Anhui forklift Group ,located in the east of China, near to Shanghai .
Our Factory was built in 1958 and is a large professional foundry factory in China.
We have obtained the certificate of ISO16949,ISO14001&OHSAS18001. We possess 4 kinds of foundry lines:
Vacuum foundry lines
Our factory possesses four world-leading vacuum foundry lines. The capacity is up to 100,000t per year, and the weight is from 5 0kg to 16000kg.
We can produce counterweights for Forklift, Elevator, Crane, Engineering Machinery, Farm Machinery, etc

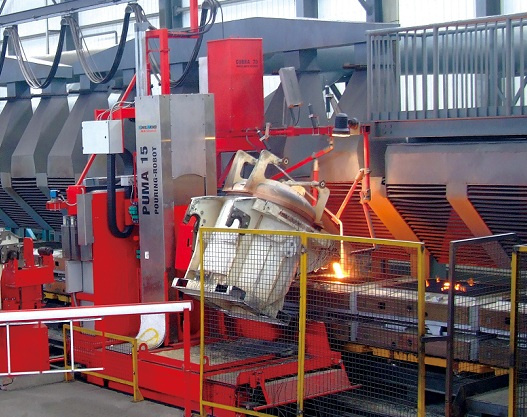

KW Line (Static pressure molding line )
The equipments of the line were imported from KW of Germany.
KW line can produce: about 35000 Ton per year
The main production include: transmission, housing, case, valve, hub, wheel, axle, Bridge shell
Resin sand foundry line
The molding machine as well as sand preparation line is imported from IMF of Italy.
The main products include: transmission, housing, case, valve, hub, wheel, axle, Bridge shell
Lost Form foundry line
Lost Foam Casting is known as Green Project of the 21st century. The key facilities of the line were imported from the U.S.A. and Germany.
It supplies high quality castings for industry vehicles and relative industry. Products are transmission cases & brake drums used in forklift trucks. .
The capacity of the line can reach 1,0000t per year.
CNC Machining
We can supply all machined castings with high accuracy.
Hefei Casting & Forging Factory is a core enterprise of Anhui forklift Group, located in the east of China, near to Shanghai.
Our Factory was built in 1958 and is a large professional foundry factory in China.
We have obtained the certificate of ISO16949, ISO14001&OHSAS18001. We possess 4 kinds of foundry lines:
1. Vacuum foundry lines
Our factory possesses four world-leading vacuum foundry lines. The capacity is up to 100, 000t per year, and the weight is from 50kg to 16000kg.
We can produce counterweights for Forklift, Elevator, Crane, Engineering Machinery, Farm Machinery, etc
2. KW Line (Static pressure molding line )
The equipments of the line were imported from KW of Germany.
KW line can produce: About 35000 Ton per year
The main production include: Transmission, housing, case, valve, hub, wheel, axle, Bridge shell
3. Resin sand foundry line
The molding machine as well as sand preparation line is imported from IMF of Italy.
The main products include: Transmission, housing, case, valve, hub, wheel, axle, Bridge shell
4. Lost Form foundry line
Lost Foam Casting is known as Green Project of the 21st century. The key facilities of the line were imported from the U. S. A. And Germany.
It supplies high quality castings for industry vehicles and relative industry. Products are transmission cases & brake drums used in forklift trucks...
The capacity of the line can reach 1, 0000t per year.
5. CNC Machining
We can supply all machined castings with high accuracy.
