| Prod Model: |
Yn27 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Displacement Of Engine Piston: |
185cm3 |
| Load Rotating Speed Of Engine: |
2450r/Min |
| Idling Rotating Speed Of Drill Rod: |
200r/Min |
| Max Drilling Depth: |
6m |
| Usage: |
Rock Drill |
Product Description

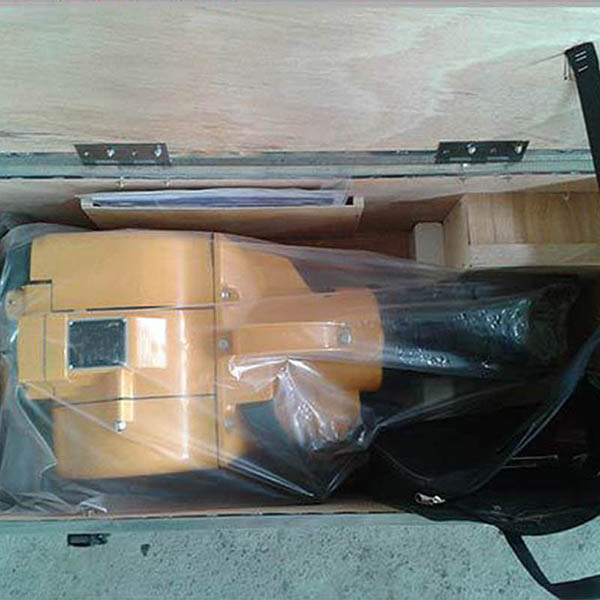

Introduction of China Supply Yn27c Portable Hand Held Pionjar Gasoline Rock Drill1. Wooden case package: 45kg, 87*40*35cm
2. In the package without drill rods and drill bits.
3. About the drill rods from 600mm to 6000mm is according to your requirement.
4. About the drill bits from 30mm to 60mm is according to your requirement.
5. If you need rods & bits, pls contact with us.
Features of China Supply Yn27c Portable Hand Held Pionjar Gasoline Rock Drill1. Feature: China Supply Yn27c Portable Hand Held Pionjar Gasoline Rock Drill is a high efficient drill machine. It's a Kind of handheld rock drill
With gasoline engine, air pump and the rotation plumbum equipment for runningor stop.
2. Use: Adapt to outsidesituations where there is no water, no electronic power and
No air compressor. It's widely used as a tool for breaking, percussive drilling, tamping splitting or ramming.
3. Working Theory: The new petrol hammer drill YN27C hammer drill has a switch on the head, which can adjust the working methods between breaking and drilling, the new hammer drill don't need to change the adapter.
Parameters of China Supply Yn27c Portable Hand Held Pionjar Gasoline Rock Drill| TECHNICAL SPECIFICATIONS |
| Weight of main machine | 27kg |
| Type of carburetor | Hand needle valve, no floating type |
| Ignition system | Controllable silicon contactless system |
| Displacement of engine piston | 185 cm3 |
| Load Rotating speed of engine | ≥ 2450 r/min |
| Idling rotating speed of drill rod | ≥ 200 r/min |
| End of drill rod dimensions | Hexagonal 22x108mm |
| Max drilling depth | ≥ 6m |
| Tank capacity | ≥ 1.14L |
| Drilling speed | ≥ 250mm/min |
| Mixture ratio of gasoline and lubricating oil(in volumes) | 9: 01 |
| Clearance of spark plug | 0.5 |

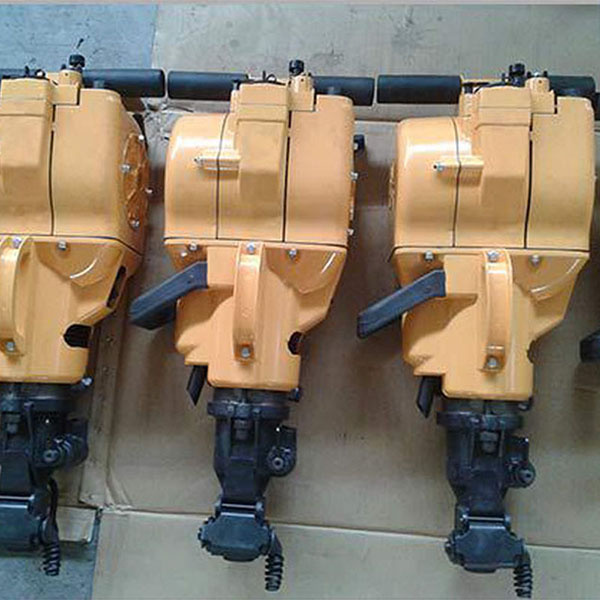

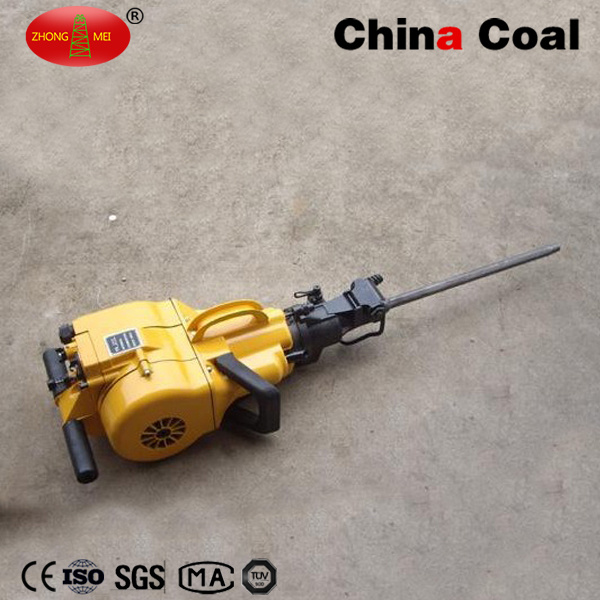

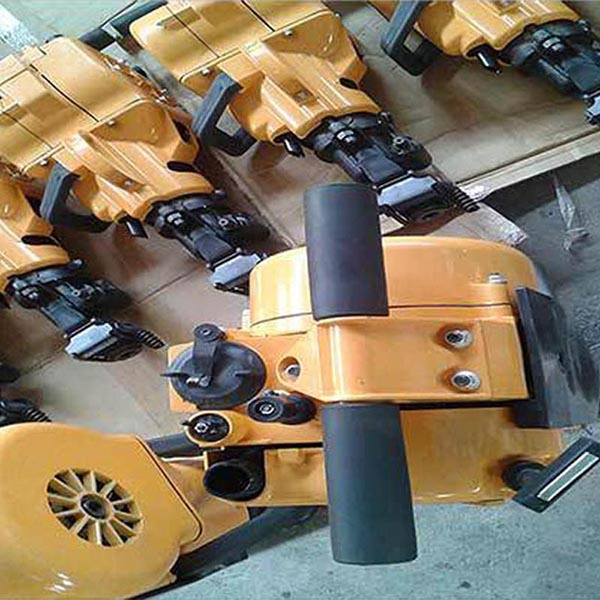

Photos Of China Supply Yn27c Portable Hand Held Pionjar Gasoline Rock Drill
