| Prod Model: |
xy-2b |
| Color: |
Optional |
Product Description

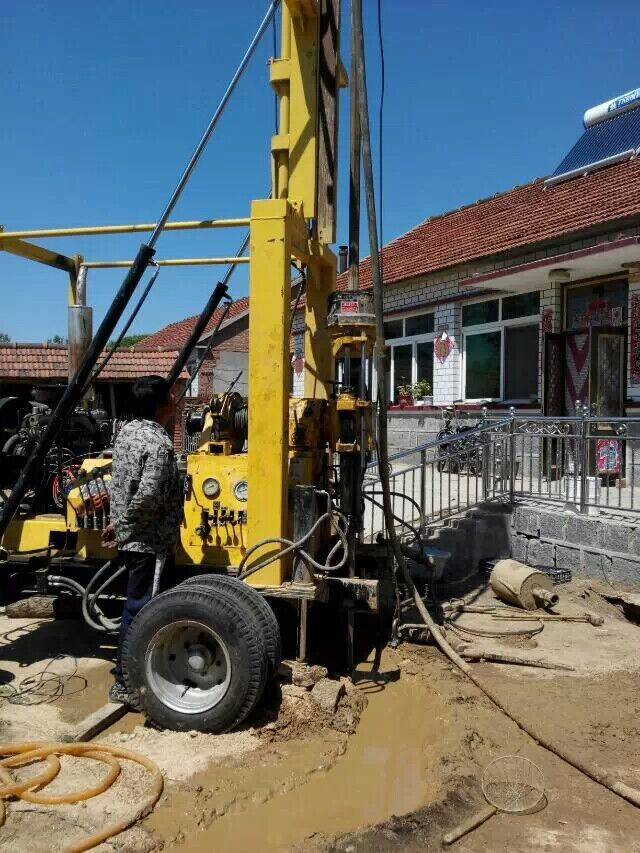

The XY-2B type drilling rig is a hydraulic vertical drilling rig, which can be used as a diesel engine or motor as power. This drilling machine is mainly used for diamond drilling and hard alloy drilling in solid deposits. At the same time, it can be used in engineering geological exploration drilling and pile hole drilling.
Our products are sold at home and abroad, with lower price and reliable quality are welcomed by African customers .
The depth of drilling is 300 meters.
The technical features of the product:
1. The mechanical transmission structure is tightened and the weight is light.
2.The vertical shaft diameter of the gyreator is large, the support distance is large and the Riger has a good rigidity.
3.The diameter shaft of the Datong hole is fitted with six party active drill rods to ensure the transmission of torque.
4.Drilling machine has high speed and reasonable speed range, can meet small caliber diamond drilling, large caliber hard joint drilling and various engineering holes drilling.
5.In the process of control and feeding, the hydraulic system can adjust the inlet pressure and adjust the feed speed to meet the drilling needs of different strata.
6.With the bottom hole pressure indicator, it is easy to master the pressure in the hole.
7.The transmission and clutch of the automobile are used in general and easy to be repaired.
8.The handle is fewer, concentrated, and easy to operate. | 1.Drilling Depth(m) | φ76 mm | 300 |
| | φ219mm | 150 |
| | φ500mm | 50 |
| Drilling diameter(mm) | 50,60 |
| Drilling angle(°) | 70-90 |
| Overall Size(mm) | 2500X1100X1700 |
| Weight(Kg) | Electric motor | 1550 |
| | Power unit | 1450 |
| 2.Gyrator |
| Spindle Speed(r/min) | Forward | 70,146,179,267,370,450,677,1145 |
| | Reversal | 62,157 |
| Shaft run(mm) | 550 |
| Hoisting capacity(KN) | 68 |
| Vertical feeding capacity(KN) | 46 |
| Max working torque(Nm) | 2550 |
| 3.Winding engine |
| Hoisting speed(m/s) | 0.64, 1.33, 2.44 |
| capacity(KN) | 25, 15, 7.5 |
| Diameter of wire rope(mm) | 15 |
| Drum diameter(mm) | 200 |
| Braking wheel diameter(mm) | 350 |
| Brake band width(mm) | 74 |
| 4.Drilling shifter |
| Switching itinerary(mm) | 420 |
| Distance(mm) | 300 |
| 5.Oil pump |
| Model | CB-25 |
| Certified capacity(L/min) | 40 |
| Rated pressure(MPa) | 8 |
| 6.Drilling Power | Diesel engine | N485Q |
| | Rated power KW | 24.6 |
| | Rated speed r/min | 1800 |
| | Electric motor | Y180L-4 |
| | Rated power KW | 22 |
| | Rated speed r/min | 1450 |
