| Prod Model: |
CIR75, CIR90, CIR110, CIR130, CIR150, CIR170 |
| Diameter: |
50-250mm |
| Series: |
CIR75,CIR90,CIR110,CIR130,CIR150,CIR170 |
| Material: |
Tungsten Carbide, High Manganese Steel |
| Processing Type: |
Forging |
| Pressure: |
High Pressure |
| Transfer: |
Air/Sea/Express |
| Color: |
Request |
| Advantage: |
High Performance |
| Product Name: |
Down The Hole (DTH) Bit |
| Inserts Design: |
Spherical; Ballistic; Parabolic |
| Certification: |
API |
| Condition: |
New |
| Type: |
Drill Tools |
| Application: |
Well Drilling,Coal Mining,Quarry Drilling |
Product Description
Product Description:PANDA Low Pressure DTH Bit
Shank can be available:
1), Dia. 64mm-70mm shank Bulroc BR1
2), Dia. 70mm-95mm shank Halco MACH20, Bulroc BR2
3), Dia. 90mm-102mm shank COP32, COP34, Halco MACH303, M30, DHD3.5, Bulroc BR3
4), Dia. 105mm-152mm shank COP44, DHD340, Halco MACH44, SD4, M40, QL40, Bulroc BR4
5), Dia. 135mm-165mm shank COP54, DHD350R, COP54, Halco MACH50, SD5, M50, QL50, Bulroc BR5
6), Dia. 152mm-254mm shank COP64, DHD360, SD6, M60, QL60, Bulroc BR6
7), Dia. 203mm-330mm shank COP84, DHD380, SD8, QL80
8), Dia. 254mm-380mm shank SD10, Numa100
9), Dia. 305mm-508mm shank DHD1120, SD12, N120, N125
10), Dia. 405mm-864mm shank SD15, SD18
11), VKP80, VKP95, CIR90, CIR100, CIR110, CIR150, CIR200...

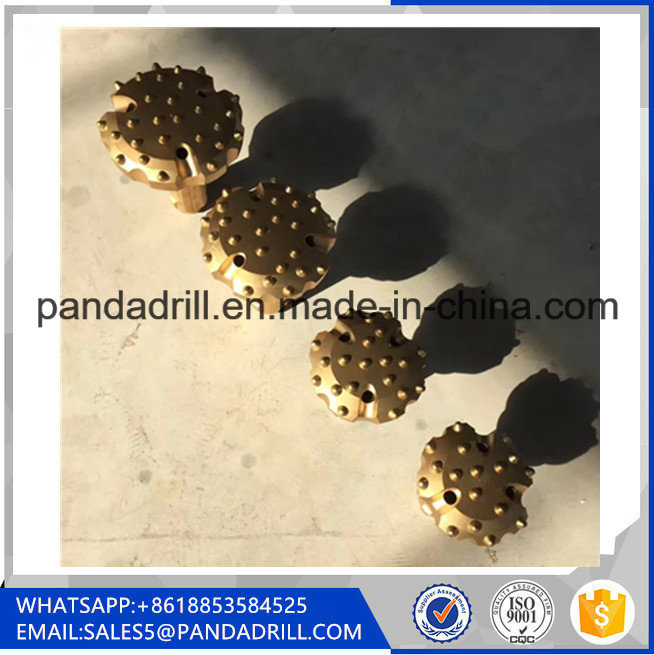

CIR Series Low Air Pressure Down The Hole Bits:
CIR Serious includes: CIR55, CIR65, CIR70, CIR80, CIR 90, CIR110, CIR110W, CIR150, CIR170, CIR200W
Bit Diameter: 65mm, 75mm, 85mm, 90mm, 110mm, 115mm, 120mm, 155mm, 160mm, 165mm, 170mm, 180mm, 210mm, 220mm
1. Advantages of our DTH drilling bits
High quality hardened steel alloy
Premium tungsten carbide buttons
Optimized flushing holes

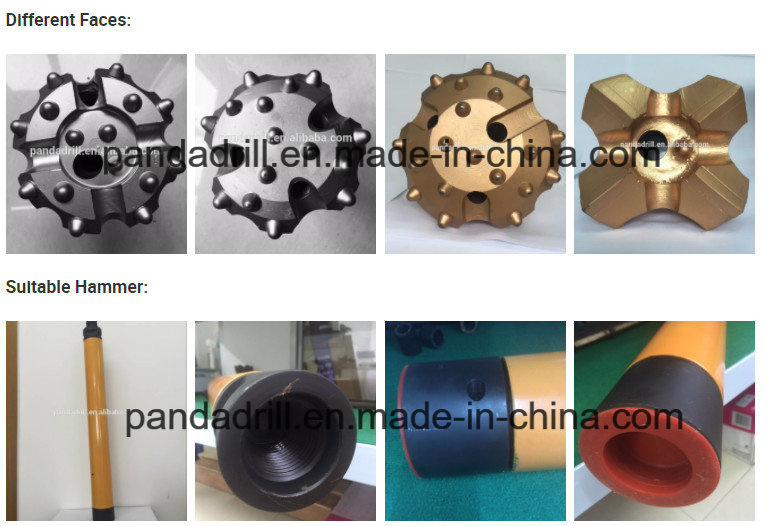

Multiple shank and face designs
Various face and spline configurations
2.Types that we can supply
(1) Low pressure bit: Diameter ranges from 68-253mm
(2) Medium Pressure bit: Diameter ranges from 115-511mm
(3) High Pressure bit: Diameter ranges from 110-1000mm
(4) Reverse Circulation bit: Diameter ranges from 95-384mmSpecification:| Model | External Diameter | Bit Shank | Hole Range | Working Pressure |
| PA65 | 56mm | CIR65 | 65-75mm | 0.5-1.2Mpa |
| PA80 | 72mm | CIR80 | 83mm | 0.5-1.2Mpa |
| PA90 | 80mm | CIR90 | 85-110mm | 0.5-0.7Mpa |
| PA110 | 98mm | CIR110 | 110-135mm | 0.5-0.7Mpa |
| PA150 | 137mm | CIR90 | 155-178mm | 0.5-0.7Mpa |
Details:
FAQ:Q1: Can I have a sample for testing?
A:Samples are still to be paid but discounted price can be provided.
Q2: Do you have the inspection procedures?
A:100% strict inspection and testing for every order before packing.
Q3: How can i get the after sale services?
A:Free replacement will provide once the problems casued by our product quality.
Q4: Can I have a visit to your factory before the order?
A: Sure, welcome, here is our address: Yantai, Shandong.
CONTACT:
Pandadrill, founded on 2008 year, is a specialized manufacturers and supplier of Rock Drilling Tools, Stone and demolition tools and consumables for quarrying, mining and construction with 10 years experiences.
We produces high quality rock drilling products by using high quality raw material, utilizing advanced craft technology and imposing strict quality inspection. The products made by Pandadrill are being adopted by various users from all over China and exported to more than 50 countries including America, France, Australia, Canada, Brazil, South Africa, Malaysian, South Korea and other countries. All of our products are highly-reputed by our customers.
Pandadrill tools always committed to provide low cost Rock Drills, stone tools, rock drilling tools, high efficiency drilling tools, energy saving and environmental product for domestic and international clients.
"Continues to provide you with better products", which keep business purposes, we still make constant efforts to adhere to yesterday's achievements as a starting point, whole-heartedly to create first-class products and good services for all customers, in order to create the endless space and wealth for all customers. We believe in Fair Quality, Fair Price, Fair Trading, we are aim to provided quality, convenient, quick service to customer and have gained good reputation in the market.
We are confident for our products and technology and we are always improving our product quality and service to satisfy our clients' various requirement.
Main products:
SMALL HOLE DRILLING TOOLS
TOP HAMMER DRILLING TOOLS
HAND HELD DRILLING MACHINE
DTH TOOLS
ROTRAY DRILL TOOLS
BREAKING TOOLS (STONE & CONSTRUCTION)
GRINDING TOOLS
STONE CUTTING TOOLS
MINING EQUIPMENT
