| Prod Model: |
CIR90 |
| Diameter: |
44-182mm |
| Series: |
CIR75,CIR90,CIR110,CIR130,CIR150,CIR170 |
| Material: |
Tungsten Carbide, High Manganese Steel |
| Processing Type: |
Forging |
| Pressure: |
High Pressure |
| Transfer: |
Air/Sea/Express |
| Color: |
Request |
| Advantage: |
High Performance |
| Product Name: |
Down The Hole (DTH) Hammer |
| Inserts Design: |
Spherical; Ballistic; Parabolic |
| Certification: |
API |
| Condition: |
New |
| Type: |
Drill Tools |
| Application: |
Well Drilling,Coal Mining,Quarry Drilling |
Product Description

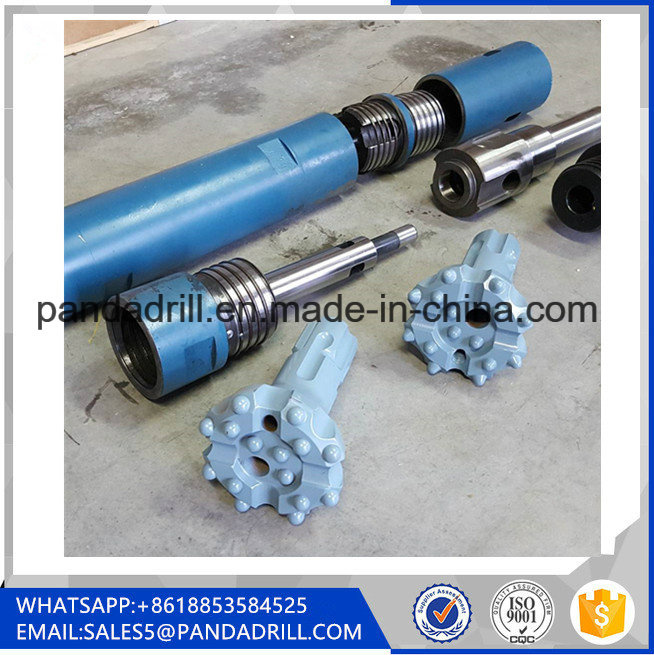

Product Description:Panda CIR series DTH Hammer, a kind of valve equipped low air pressure hammer with a single piston, a plate valve and a central exhaust structure.
The compressed air is adopted as the driving force. To get a better performance and prevent dust pollution, some high-pressure water may be added into the air for wet rock drilling.
Advantage:
1.The strong energy of single impact and the low energy consumption in rock crushing.
2.Smooth performance and long service life of CIR,HD series DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.
3.A good performance in central air exhaust and cutting discharge, which reduces the repeated crushing of rock.
4.Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.Specification:| TYPE | LENGTH(MM) | TOP SUB THREAD | OUT DIA(MM) | WEIGHT(KG) | BIT DIA(MM) | WORKING PRESSURE(BAR) | AIR CONSUMPTION(M3/MIN) |
| CIR50 | 628 | F32*8 PIN | 44 | 5 | 50 | 4~10 | 4~8 |
| CIR65 | 745 | F42*10 PIN | 61 | 13 | 65 | 4~10 | 6~10 |
| CIR76 | 811 | F48*10 PIN | 66 | 13.5 | 76 | 4~10 | 6~10 |
| CIR90 | 855 | F48*10 PIN | 80 | 22 | 90~120 | 4~12 | 8~12 |
| CIR90A | 840 | F48*10 PIN | 80 | 22 | 90~120 | 4~12 | 8~12 |
| CIR110A | 871 | API 2 3/8 REG BOX | 98 | 33 | 110~150 | 6~12 | 8~12 |
| CIR130A | 890 | API 2 3/8 REG BOX | 112 | 48.5 | 130~175 | 6~12 | 8~12 |
| CIR150A | 904 | F70*10 PIN | 136 | 70 | 150~200 | 6~12 | 10~16 |
| CIR170A | 1030 | F100*28 PIN | 156 | 96 | 170~250 | 8~14 | 12~18 |
| CIR200A | 1058 | F100*28 PIN | 182 | 130 | 200~250 | 8~14 | 16~20 |
Details:
FAQ:Q1: Can I have a sample for testing?
A:Samples are still to be paid but discounted price can be provided.
Q2: Do you have the inspection procedures?
A:100% strict inspection and testing for every order before packing.
Q3: How can i get the after sale services?
A:Free replacement will provide once the problems casued by our product quality.
Q4: Can I have a visit to your factory before the order?
A: Sure, welcome, here is our address: Yantai, Shandong.
