| Prod Model: |
H-CT007-50D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
H-CT007-50d |
| Diameter: |
50mm |
| Current Ratio: |
1000A/1A |
| Max Primary Current/Input Current: |
1200A |
| Secondary Current/Output Current: |
1A |
| Conections: |
Diameter 4mm,1.5square Meter |
| Cables Color: |
Red~Black,Yellow~Black, Blue~Black |
| Cables Length: |
1.5meter or 3meter |
| Accuracy: |
0.5class |
| Color: |
Blue |
| Application: |
Lighting |
| Type: |
Current Transformer |
| Phase: |
Single or Three |
Product Description
1, Specification notes
1). Single-phase Current Test/quality warranty

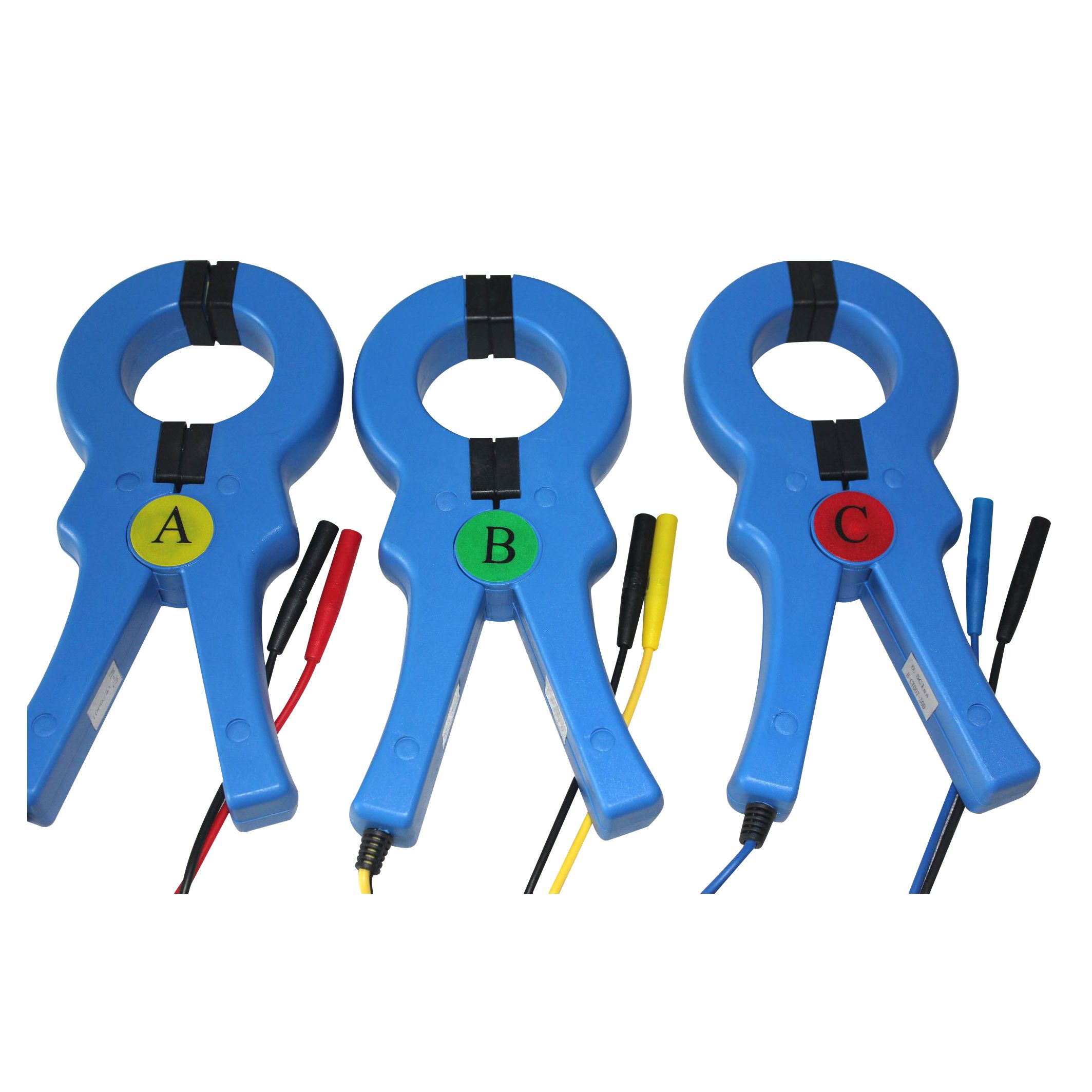

2). Clamp-on Current Transformer
3). Current Range 100mA to 6kA
2, Mainly using for:
1). Clamp-on Current Transformer,
2). Clip on current transformer,
3). Current transformer clamp,
4). Current transformer
3, Technial index notes
1), Testing current: 100mA to 6, 000A
2), Accuracy class is divided into 0.1, 0.2, 0.5 and 1.0 grade
3), Primary current: 100mA to 6, 000A
4), Secondary current: 1mA to 5A, 0 to 5V, or DC 4 to 20mA
5), ABS anti-combustion plastic casing
Encapsulated with epoxy resin to ensure strong insulation ability
High-precision current transformers
Clamp-on current transformer
Locking snap current transformers
Split core current transformer
Reliable linear performance transformers
Strong anti-magnetic disturbance epoxy current transformers-
Completely-enclosed, good mechanical behavior, suitable for various environments, strong voltage isolation ability, delicate appearance
Notes: Suitable for single-phase electricity meter as well as anti-tampering electricity meter
Linear output current, high precision
There are standard holes on the primary lead wire which can be directly fixed on the meter terminals with standard bolts
There are standard holes on the external casing which facilitates installation on a PCB
Various mechanical dimensions, highly customer-tailored
4, Quality guarantee!
Competive price
Perfect service.
If you want to know more information for this model: H-CT016, Please feel free to contact with us.
Thank you very much for your attention.
Model
| Rate Current | Max Current | Secondary Current | Coil Ratio | Burden Resistance | Accuracy | Temperature | Humidity |
H-CT07-50D | 1000A | 1200A | 1A | 1000:1 | customized | 0.5Class | -40~+70º C | ≤ 95% |
