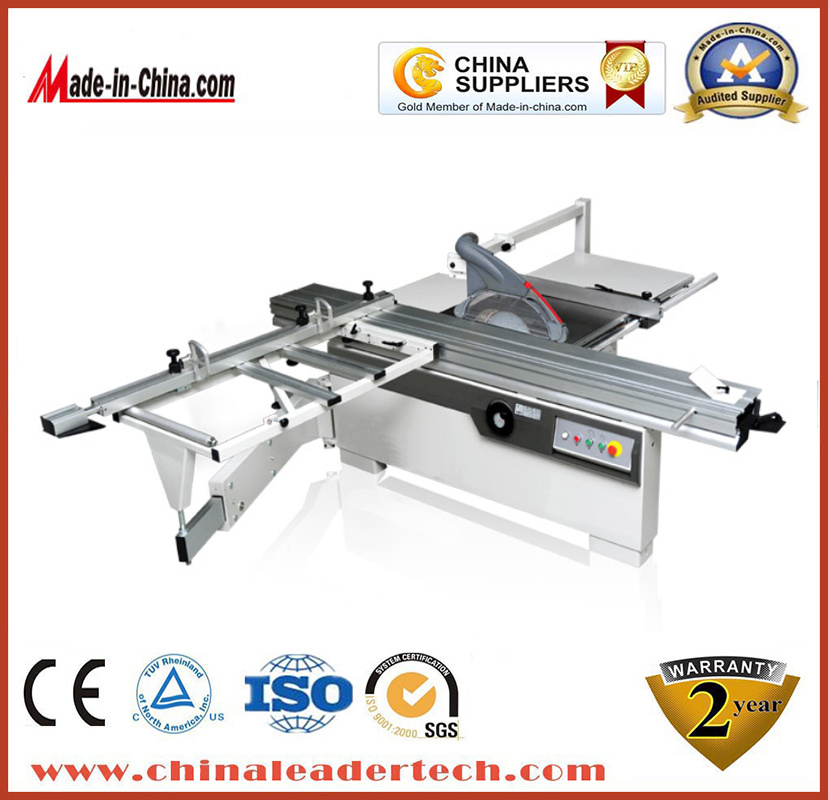

Classic Woodworking Precision Panel Saw with 45 Degree
| Price: |
US $ 4000-6000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LTK350A |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Automatic |
| Precision: |
Precision |
| Certification: |
ISO |
Product Description
| Main saw blade size | 350mm |
| Main blade speed | 3000/4000/5000rpm |
| Slot size | 1200mm |
| Slot saw speed | 8000rpm |
| Blade inclination | 0-45° |
| Maximum cutting thickness 45° | 80mm |
| Maximum cutting thickness 90° | 115mm |
| Maximum slitting width | 1250mm |
| Slide size | 3200*375mm |
| Maximum cutting stroke | 3200mm |
| Table size | 900(700+660)mm |
| Suction diameter | 120mm |
| Main motor output power | 7kW S1 |
| Slot saw motor output power | 0.75kW S1 |
| Gross net weight | 680/760kgs |
| Host size | 2300*1190*910mm |
| Slide size | 3600*505*280mm |
Quality Control:1. During procurement, we have strict control about the quality of the spare parts.2. Before shipment, we will test machine by different common materials, and make necessary adjustment and data record. Also we will take photos and some sampling videos for customers.3.Due to the company has strong technological innovation ability, the company has granted 133 patents from its unique inventions including best practical machines and excellent designs. 4.By invitation, LEADTECH has participated in setting up National Standards for Computer Numerical Control(CNC) for the woodworking machinery industry. Warranty:1.Two years warranty for the whole machine; Lifetime Maintenance.2.Within warranty period, any damage happens due to machine quality problems; we will be responsible for replacing parts for free, except regular consumables (such as cutting tools) and the damage by man-made irregular operating.3.Customer need to afford the International Express cost and accommodation etc.4.Warranty time starts after goods arrival in customer's site. After-sales Service:1. Guarantee long-term supply for spare parts; Unlimited Lifetime maintenance.2. Offer life-time 24 hours online technical support for free. We can communicate by way of phone, e-mail, whatsapp, wechat, QQ, skype, etc.3. Offer free training for operation & maintenance of equipment in our factory.4. Offer On-Site paid service for machine installation and technical training. Customer need to pay visa application cost, air ticket cost, local hotel & food cost, and service cost is 100USD per day.5. We will make return visit non-scheduled, in order to make assessment for after-sales service technician, make sure our service better and better. Our Value and Obligation:1.Do business with integrity. No cheating and deception.2.We are committed to offer high quality products China made.3.We are committed to provide professional and efficient premium services.4.If you are or will be a distributor, we are willing to help you develop new markets, enhance performance.5.If you are the end user, we will help you choose the right products and offer life-time technical support. Company Profile: QINGDAO LEADERTECH MACHINERY is one of the leading industrial pioneer groups which established in 1999 from Qingdao City, China, And with over 8 years experience and grow up rapidly with the well-known reputation since 2007, especially we are focusing on the CNC router machines, CNC NESTING system machines, CNC carving and Engraving machines, co2 laser cutting machines, finer laser cutting machines, 4 Axis CNC machines, 5 Axis CNC machines, many products and spare parts with high advance technology, producing a variety of wood working machines and products for a range of activities like carpentry, kitchen line companies, furniture factories, interior design companies, models, Advertising field, metals works, contracting company etc…we believe in quality is the life of our products, therefore we are using the first-class technology and components, such as original Italy HSD Spindle, Japanese servo system, Germany Becker Vacuum Pump, Japanese THK Rails and Bearing, Taiwan Syntec control system, Israel OASI control system etc…We offer customized products according to your requirement, such as, shape, dimension, color, specification and structure design, etc. OEM is available.
We have established the strategic cooperation relationship with more than 80 dealers and distributors from different countries and regions.Now the market is mainly distributed in North America, South America, Europe, UAE, KSA, OMAN and other Middle East countries, Southeast Asia, South Asia and West Asia. We are actively looking for new partners to explore the new market, to achieve win-win. We prefer to provide valuable product, service and solution for more end users. We appreciate you join us, to be partner in business, to be friend in life, to be one family forever First -class experts in the areas of after sales services to guarantee all the woodworkers, whether artisans, commercial companies or industry enable to get full time supports and ensure excellent precision and best processing quality. Specially trained technicians is the strong support for you, and they carry out the delivery, installation, commissioning, the first machine configuration settings and training which ensures that your machine can be used productively from the very first day of use.

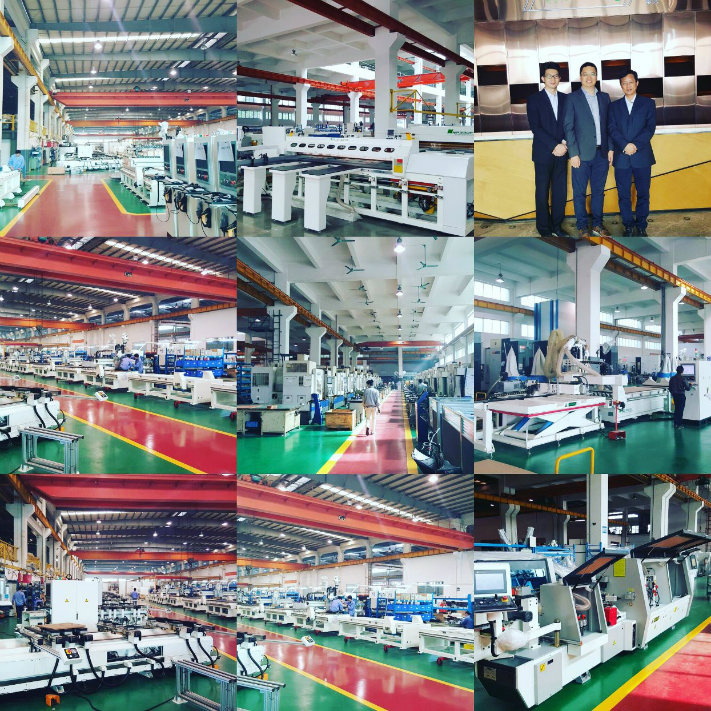

QINGDAO LEADERTECH MACHINERY is one of the leading industrial pioneer groups which established in 1999 from Qingdao City, China, And with over 8 years experience and grow up rapidly with the well-known reputation since 2007, especially we are focusing on the CNC router machines, CNC NESTING system machines, CNC carving and Engraving machines, CO2 laser cutting machines, finer laser cutting machines, 4 Axis CNC machines, 5 Axis CNC machines, many products and spare parts with high advance technology, producing a variety of wood working machines and products for a range of activities like carpentry, kitchen line companies, furniture factories, interior design companies, models, Advertising field, metals works, contracting company etc… We believe in quality is the life of our products, therefore we are using the first-class technology and components, such as original Italy HSD Spindle, Japanese servo system, Germany Becker Vacuum Pump, Japanese THK Rails and Bearing, Taiwan Syntec control system, Israel OASI control system etc…
Also we have been bonded together with the worldwide top brands manufacturers from China to provide the key of success of our customers, to provide engineering factory plan, placement of the machines, air system, dust extraction system, to provide full factory layout engineering plan, to provide all the production line from A-Z.
We have established the strategic cooperation relationship with more than 8 dealers and distributors from different countries and regions.
First – Class experts in the areas of after sales services to guarantee all the woodworkers, whether artisans, commercial companies or industry enable to get full time supports and ensure excellent precision and best processing quality. Specially trained technicians is the strong support for you, and they carry out the delivery, installation, commissioning, the first machine configuration settings and training which ensures that your machine can be used productively from the very first day of use.
We offer a huge range of tools and accessories, everything is available in our hand, and available to order on line, the requirements analysis by our experts will show you new solutions for optimizing your productivity and earnings.
