Close Type H Frame Eccentric Gear Drive Mechanical Power Press (JS31)

Name: Close Type H Frame Eccentric Gear Drive Mechanical Power Press (JS31)
Brand: tool-buy.com
SKU: 750326505
Availability: InStock
Rating: 4.7 (150 reviews)

Price:	US $ 50000-60000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Shanghai Yingxin World Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	JS31-500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Press:	Close Type H Frame Eccentric Gear Drive Mechanical
Capacity Range:	125ton to 1000ton
Overload Protected System:	Hydraulic Pump
Lubircation System:	Thin Oil Center Lubrication
Power:	380V/50Hz/3phase
Clutch Type:	Dry Clutch
Transmission:	Eccentric Gear
Table Size:	Can Be Customized
Lead Time:	60 Days
Warranty:	One Year
Type:	General Punching Machine
Controlling Mode:	Artificial
Automatic Grade:	Automatic
Power Source:	Mechanical Drive
Precision:	High Precision

Product Description

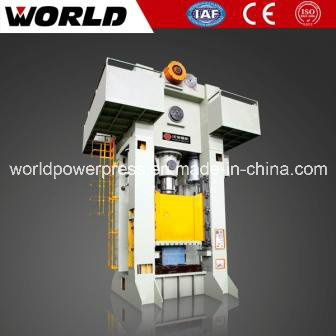

Close Type H Frame eccentric gear drive mechanical power Press (JS31)

JS31 closed type single point press is widely used in industries including automobile, tractor, agriculture machinery, textile machinery, electrics, motor, instrument, aviation and weapons. It can fulfill the blanking, forming, bending and shallow-drawing processing. It is more suitable for various sheet forming parts.

Features:

1.Heavy duty lubrication system

2.Ultra-long guide rails

3.Finite element analysis for major partsm rigid and strong

4.Special clutch and brake

Parameters: Close Type H Frame eccentric gear drive mechanical power Press

Item		Unit	JS31-125	JS31-160	JS31-200	JS31-250	JS31-315	JS31-400A	JS31-500
Nominal capacity		KN	1250	1600	2000	2500	3150	4000	5000
Stroke under nominal force		mm	7	8	10	10	12	13	13
Slide stroke length		mm	130	160	200	200	220	250	250
Stroke speed		times/min	35	32	32	28	28	25	25
Max. die shut height		mm	350	385	500	460	520	530	530
Die shut height adjustment		mm	100	140	120	160	160	160	160
Slide bottom size	L-R	mm	550	510	700	700	700	810	810
Slide bottom size	F-B	mm	550	560	700	670	670	810	810
Size of worktable	L-R	mm	700	710	800	850	850	990	990
Size of worktable	F-B	mm	750	790	850	900	900	1060	1060
Knock out pressure		KN	65	70	80	80	80	100	150
	Stroke	mm	65	80	100	100	100	125	125
	Quantity	piece	1	1	1	1	1	1	1
Motor Power		KW	11	15	22	22	30	37	45
Overall dimensions	L-R	mm	1610	1640	2200	2185	2185	2437	2510
	F-B	mm	1474	1725	2310	2242	2242	2548	2648
	Height above floor	mm	4000	4325	4300	4866	4950	5450	5540
Weight(Approximate)		TON	11.2	12.8	15	21.5	23.82	40.5	42

Shanghai Yingxin World Machinery Co., Ltd is a professional supplier and exporter of mechanical power press, hydraulic press brake and shearingring machines in China.

We can supply mechanical power press from 6.3Ton to 1600Ton, hydraulic press brake from 63Ton to 400Ton, hydraulic guillotine shear or swing beam shear with cutting depth from 6mm to 40mm, and feeders etc. With more than 10 years exporting experience, our machines have been used and approved by the market, such as Turkey, Russia, Norway, Germany, Brazil, South Africa, Saudi Arabia, Oman, Iran, Pakistan, Thailand and Indonesia.

We commit to offer best quality, reasonable prices and valuable technical assistance to every customer.

Warranty Policy

Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year. During the warranty period, our company provides free maintenance and replacement parts, if these parts or damages are out of quality problems. In the meantime, the machine should be under normal operation by the buyers. (Except for improper operation or man-made damage by the buyers. ) We can send the parts by courier if urgently needed while the buyer should pay the freight.

Installation Support

We can arrange our engineer to support the buyer to install the machines at buyer's factory. And the buyer should pay all the accommodations and round air tickets.
