| Prod Model: |
JX36 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity Range: |
400ton |
| Overload Protected System: |
Hydraulic Pump |
| Lubircation System: |
Auto Thin Oil Center Lubrication |
| Power: |
380V/50Hz/3phase |
| Type: |
General Punching Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Power Source: |
Mechanical Drive |
| Precision: |
High Precision |
Product Description

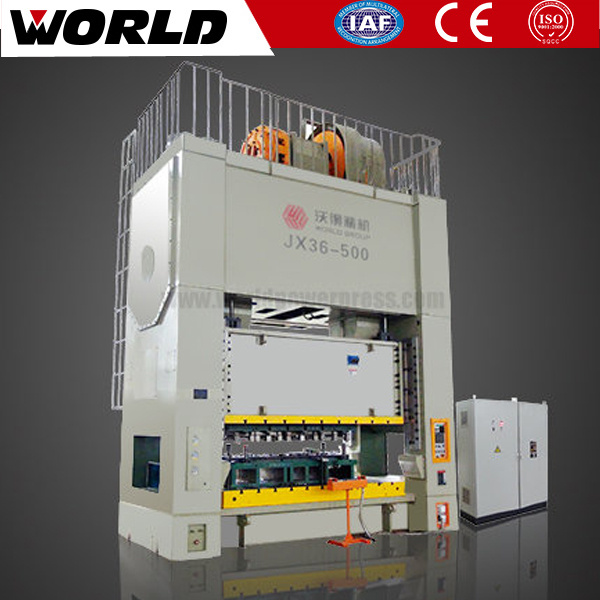

Power Press
JX36 press is designed for big sheet metal punching or stamping process. It is widely used in auto parts metal forming production. PLC control, dry type seperated clutch and brake, two left to right crankshafts, 3 stage gear transmission. Big table size and big die shut height. Air cushion and movable table are optional. The main body can be disassembed to four main parts: support, cross beam, slide and columns. One year warranty and engineers are avaiable for global service and installation.
specifications:
Items | Unit | Specifications |
| JX36-400 | JX36-500 | JX36-630 | JX36-800 | JX36-1000 |
| Nominal Capacity | KN | 400 | 5000 | 6300 | 8000 | 10000 |
| Rated Tonnage Point | mm | 9 | 12 | 12 | 12 | 12 |
| Stoke Length | mm | 300 | 300 | 350 | 350 | 400 |
| Stroke Speed | spm | 20-35 | 20-35 | 20-30 | 15-25 | 15-25 |
| Max. Die Shut Height | mm | 650 | 650 | 700 | 800 | 900 |
| Die Shut Height Adjustment | mm | 200 | 200 | 250 | 250 | 250 |
| Table Size (FBxLR) | mm | 1300×3000 | 1500×3000 | 1500×3600 | 2000×4000 | 2000×4000 |
| Table Thickness | mm | 220 | 220 | 250 | 250 | 250 |
| Slide Bottom Size (FB-LR) | mm | 1300×3000 | 1500×3000 | 1500×3600 | 2000×4000 | 2000×4000 |
| Window Opening (FBxH) | mm | 1000×650 | 1100×650 | 1200×700 | 1600×800 | 1600×900 |
| Table Height | mm | 710 | 710 | 710 | 710 | 710 |
| Motor Power | KW | 45 | 55 | 75 | 75 | 90 |
| Overall Dimensions (LxWxH) | mm |
| 3330x4650x7250 | 3800x5400x7700 | 4200x6150x9200 | 4600x6150x9900 |
| Approximate Weight | T | ≈85 | ≈95 | ≈125 | ≈145 | ≈195 |
Shanghai Yingxin World Machinery Co., Ltd is a professional supplier and exporter of mechanical power press, hydraulic press brake and shearingring machines in China.
We can supply mechanical power press from 6.3Ton to 1600Ton, hydraulic press brake from 63Ton to 400Ton, hydraulic guillotine shear or swing beam shear with cutting depth from 6mm to 40mm, and feeders etc. With more than 10 years exporting experience, our machines have been used and approved by the market, such as Turkey, Russia, Norway, Germany, Brazil, South Africa, Saudi Arabia, Oman, Iran, Pakistan, Thailand and Indonesia.
We commit to offer best quality, reasonable prices and valuable technical assistance to every customer.
Warranty Policy
Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year. During the warranty period, our company provides free maintenance and replacement parts, if these parts or damages are out of quality problems. In the meantime, the machine should be under normal operation by the buyers. (Except for improper operation or man-made damage by the buyers. ) We can send the parts by courier if urgently needed while the buyer should pay the freight.
Installation Support
We can arrange our engineer to support the buyer to install the machines at buyer's factory. And the buyer should pay all the accommodations and round air tickets.
