Clsg-Series Single Acting High Tonnage Cylinder
| Price: |
US $ 240-2000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
FY-CLSG |
| Capacity: |
50-1000ton |
| Stroke: |
16-260mm |
| Working Pressure: |
700bar |
| Shaft Diameter: |
70.0-343.0mm |
| Weight: |
1.0-72.6kg |
| Color: |
Yellow |
| Product Name: |
Clsg-Series Single Acting High Tonnage Cylinder |
| Max Pressure: |
700bar |
| Collapsed: |
162-814mm |
| Certificate: |
Ce, ISO9001:2008 |
| Material: |
Steel |
| Structure: |
Piston Cylinder |
| Power: |
Hydraulic |
| Standard: |
Standard |
| Pressure Direction: |
Single-acting Cylinder |
| Usage: |
Lifting, Supporting and Jacking |
Product Description

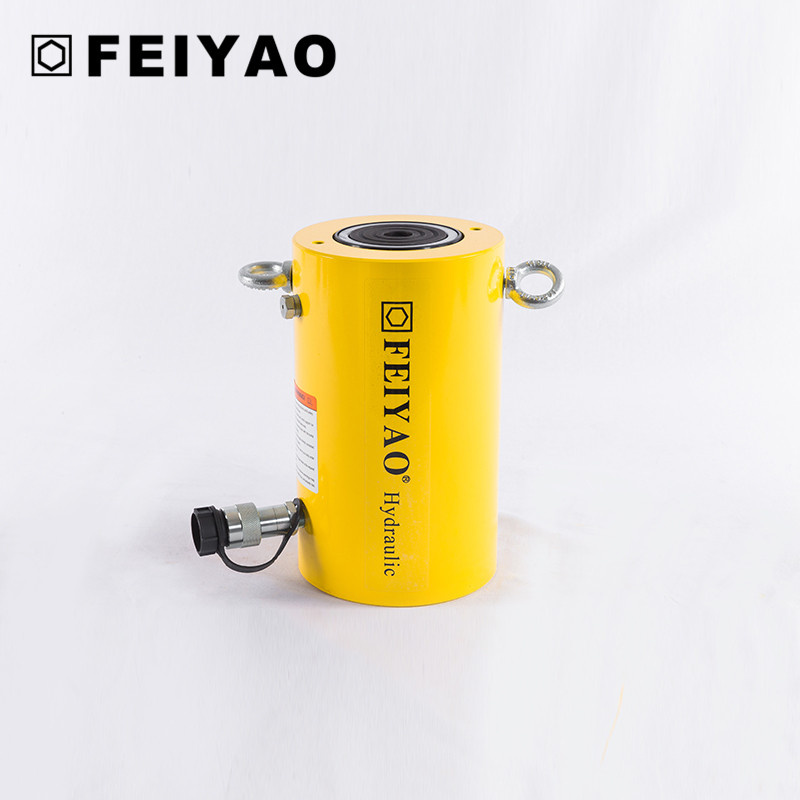

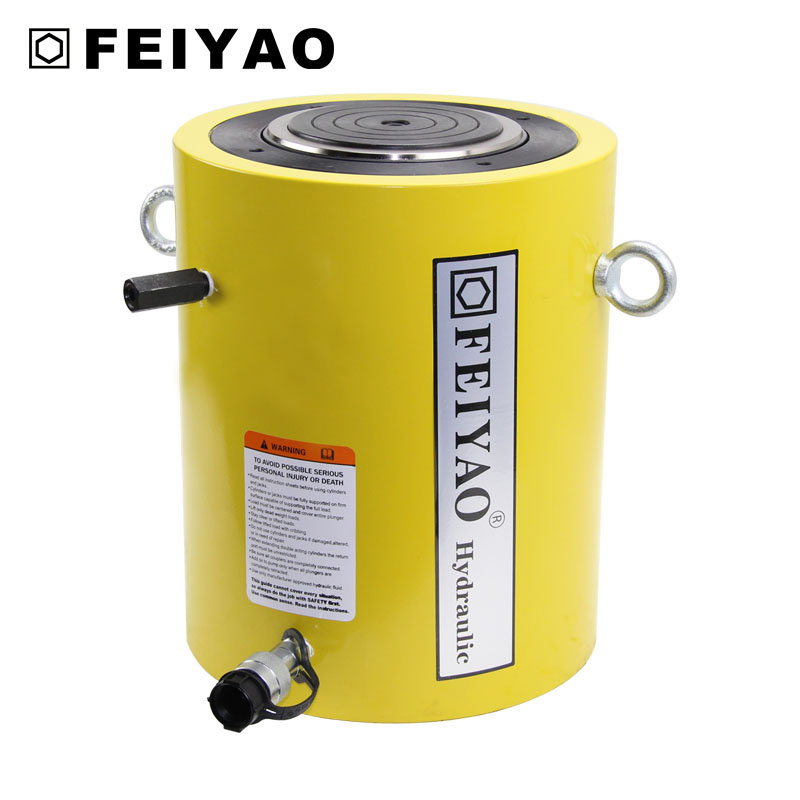

CLSG-series single acting high tonnage cylinder
Features:1. integral stop ring provides piston blow out protection
2. baked enamel outside finish and plated pistons provide
3. superior corrosion protection
4. interchangeable, handened grooved saddles are standard
5. base mounting holes are standard on all models
6. plunger wiper reduce contamination, extending cylinder life
7. single acting, load return
8. higher capacities: 1500 and2000 ton models availble on request.
Single-acting high tonnage jacks is especially designed for lifting and repair, optional inclined base to reduce the damage risk of lateral pressure, stroke limit valve ensures the piston only stretched to its rated stroke length
Brief introduction of FEIYAO

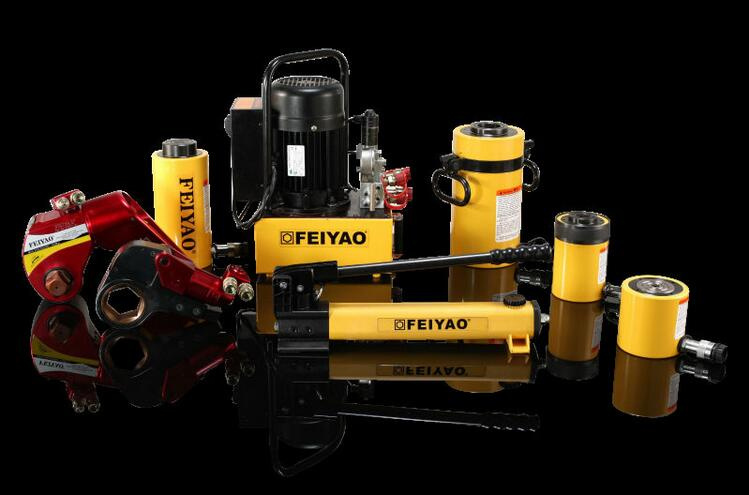

Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.
Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.
We warmly welcome all overseas customers to talk with us about business or other cooperations.

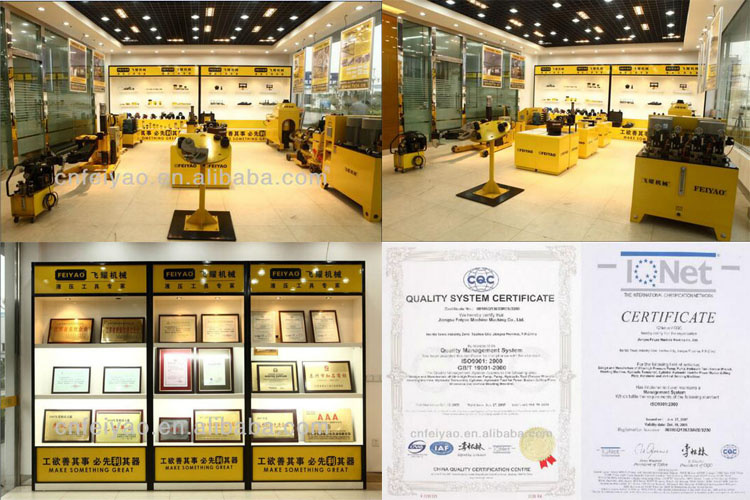

Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.Showroom & Certification

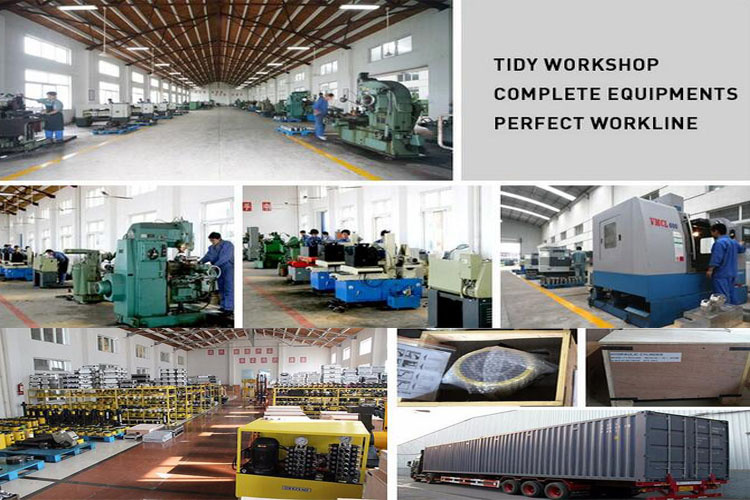

Factory Show & Packaging&shipping
Quality Control & Successful Project
For more information please visit our website:www.fyhydraulic.cn We are professional manufacturer, offer you competitive price.If you have any questions about these products , please contact us ,we will try our best to help you ! CONTACT USContact Information
Sales Manager:Angela Zhang
Tel: +86-523-86183388
Fax: +86-523-86186999
Mobile: +86 18036786358
Facebook:+86 18036786358
IMO: 0086 18036786358
Web: www.fyhydraulic.com
Parameter information| model | Pressure
@700bar ton
(KN) | Stroke (mm) |
Cylinder
Effective area (cm 3)
| Oil capacity (cm 3 ) | Closed height (mm) | Weight (kg) |
| FY-CLSG-502 | 50(539) | 50 | 77.0 | 385 | 162 | 17 |
| FY-CLSG-504 | 100 | 77.0 | 770 | 212 | 20 |
| FY-CLSG-506 | 150 | 77.0 | 1150 | 262 | 23 |
| FY-CLSG-508 | 200 | 77.0 | 1540 | 312 | 27 |
| FY-CLSG-5010 | 250 | 77.0 | 1924 | 362 | 31 |
| FY-CLSG-5012 | 300 | 77.0 | 2309 | 412 | 34 |
| FY-CLSG-1002 | 100(929) | 50 | 132.7 | 664 | 182 | 19 |
| FY-CLSG-1004 | 100 | 132.7 | 1327 | 232 | 29 |
| FY-CLSG-1006 | 150 | 132.7 | 1991 | 282 | 40 |
| FY-CLSG-1008 | 200 | 132.7 | 2655 | 332 | 50 |
| FY-CLSG-10010 | 250 | 132.7 | 3318 | 382 | 61 |
| FY-CLSG-10012 | 300 | 132.7 | 3982 | 432 | 71 |
| FY-CLSG-1502 | 150(1390) | 50 | 198.6 | 993 | 196 | 39 |
| FY-CLSG-1504 | 100 | 198.6 | 1986 | 246 | 52 |
| FY-CLSG-1506 | 150 | 198.6 | 2978 | 296 | 65 |
| FY-CLSG-1508 | 200 | 198.6 | 3971 | 346 | 78 |
| FY-CLSG-15010 | 250 | 198.6 | 4964 | 396 | 92 |
| FY-CLSG-15012 | 300 | 198.6 | 5957 | 446 | 105 |
| FY-CLSG-2002 | 200(1861) | 50 | 265.9 | 1330 | 216 | 55 |
| FY-CLSG-2006 | 100 | 265.9 | 3989 | 316 | 91 |
| FY-CLSG-20012 | 300 | 265.9 | 7977 | 465 | 146 |
| FY-CLSG-2502 | 250(2565) | 50 | 366.4 | 1832 | 235 | 89 |
| FY-CLSG-2506 | 150 | 366.4 | 5497 | 335 | 136 |
| FY-CLSG-25012 | 300 | 366.4 | 10993 | 485 | 207 |
| FY-CLSG-3002 | 300(3193) | 50 | 456.2 | 2281 | 312 | 184 |
| FY-CLSG-3006 | 150 | 456.2 | 6843 | 412 | 232 |
| FY-CLSG-30012 | 300 | 456.2 | 13685 | 562 | 303 |
| FY-CLSG-4002 | 400(3919) | 50 | 559.9 | 2800 | 375 | 270 |
| FY-CLSG-4006 | 150 | 559.9 | 8399 | 475 | 330 |
| FY-CLSG-40012 | 300 | 559.9 | 16797 | 625 | 421 |
| FY-CLSG-5002 | 500(5114) | 50 | 730.6 | 3653 | 419 | 401 |
| FY-CLSG-5006 | 150 | 730.6 | 10959 | 519 | 480 |
| FY-CLSG-50012 | 300 | 730.6 | 21918 | 669 | 599 |
| FY-CLSG-6002 | 600(5987) | 50 | 855.3 | 4276 | 429 | 474 |
| FY-CLSG-6006 | 150 | 855.3 | 12829 | 529 | 565 |
| FY-CLSG-60012 | 300 | 855.3 | 25659 | 679 | 701 |
| FY-CLSG-8002 | 800(8234) | 50 | 1176.3 | 5881 | 474 | 741 |
| FY-CLSG-8006 | 150 | 1176.3 | 17644 | 574 | 868 |
| FY-CLSG-80012 | 300 | 1176.3 | 35288 | 724 | 1058 |
| FY-CLSG-10002 | 1000(10260) | 50 | 1465.7 | 7329 | 564 | 1062 |
| FY-CLSG-10006 | 150 | 1465.7 | 21986 | 664 | 1213 |
| FY-CLSG-100012 | 300 | 1465.7 | 43972 | 814 | 1439 |
Concentrate on the design and manufacture of hydraulic products, Jiangsu Feiyao Machinery Manufacturing Co., Ltd is a professional hydraulic manufacturer who integratesR&D, marketing, customer service and import & export. With strict and efficient manufacturing&operation system and perfect quality control and guarantee system, FEIYAO provides a full range of engineering solutions for customers.
Relies on advanced research and application technology and with joint effort of domestic professionals, FEIYAO has developed high-end hydraulic products (already has a number of invention patents) and capacity of customizing a variety of scientific and reasonable solutions in rich product lines. Through continual innovations in designs and applications, FEIYAO provides high-quality hydraulicproducts for customers.
Based on the advanced computer control technology, in the past decades, FEIYAO has been devoted itself to providing customers with engineering solutions in the heavy load, high precision control, multi logical action and multi-point control fields, etc., and offering safe&efficient equipment and services in all kinds of applications like multi-point synchronous push, translation, lifting, stretching, walking, asymmetric component weighing, tension, space adjustment, intelligent walking, handling large equipment.
At present, the company's products have been widely used in many industries at home and abroad, such as the construction and maintenance of roads and bridges, installation and moving of offshore oil platform, historic buildings, sports gymnasiums, blast furnaces, power equipment and ocean shipping manufacturing.
The synchronous hydraulic lifting systems have made a great contribution to the bridgelifting and maintenance in China, which has won praise from numerous bridge construction enterprises!
