| Prod Model: |
CN80 |
| Weight: |
3.98kgs (Aluminum Body) 3.68kgs (Magnesium Body |
| Load Capacity: |
225-300PCS Nails |
| Operating Pressure: |
5-8.3kgs/Cm2 (70-120psi ) |
| Fasteners Length: |
50mm - 83 mm |
| Shank: |
2.5mm - 3.3 mm |
| Nails Head: |
6.0mm-8.0mm |
| Power Source: |
Pneumatic |
| Dimensions: |
362 X 132 X 307mm |
| Business Type: |
Manufacturer and Trading Company |
| OEM Service: |
Available |
| Type: |
Coil Nail Gun |
| Usage: |
Wood Packing.Wood Pallet |
| Working Style: |
Pneumatic |
| Brand: |
Kya |
Product Description

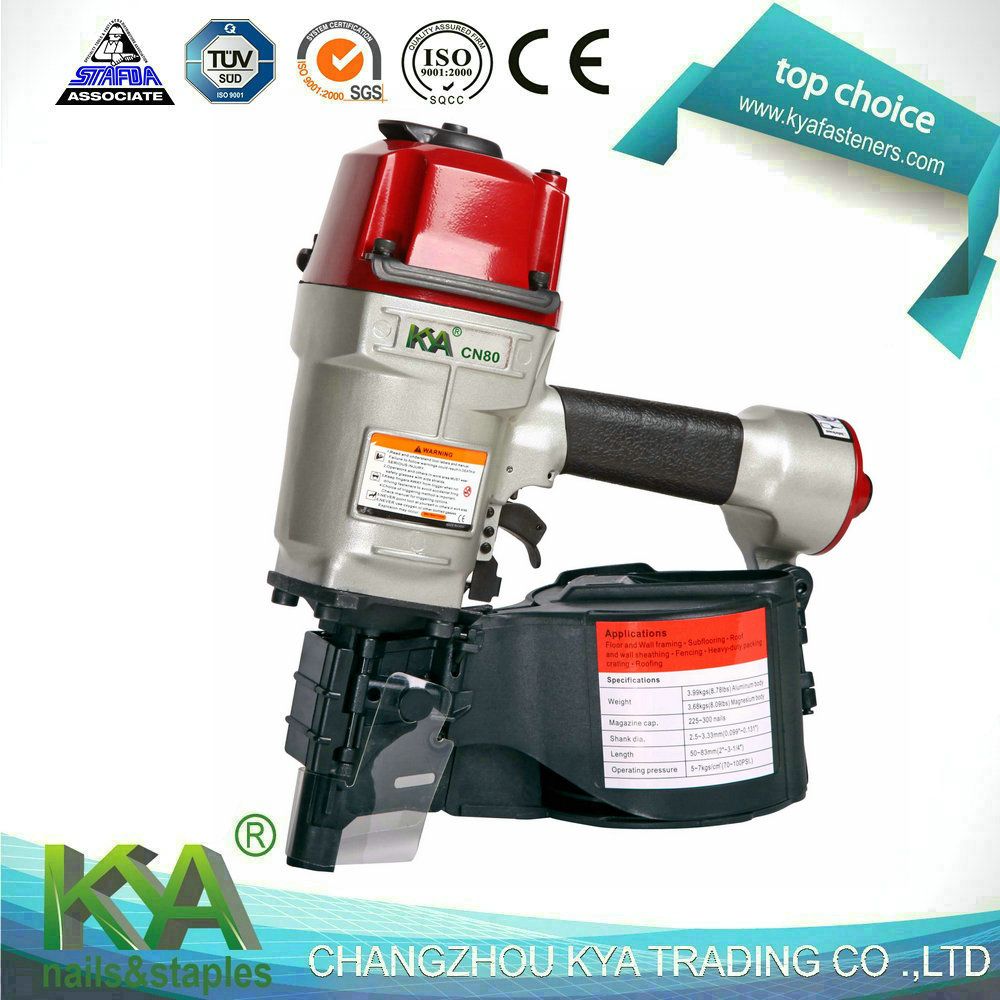

Cn80 Pneumatic Power Wire Collated Coil Nailer

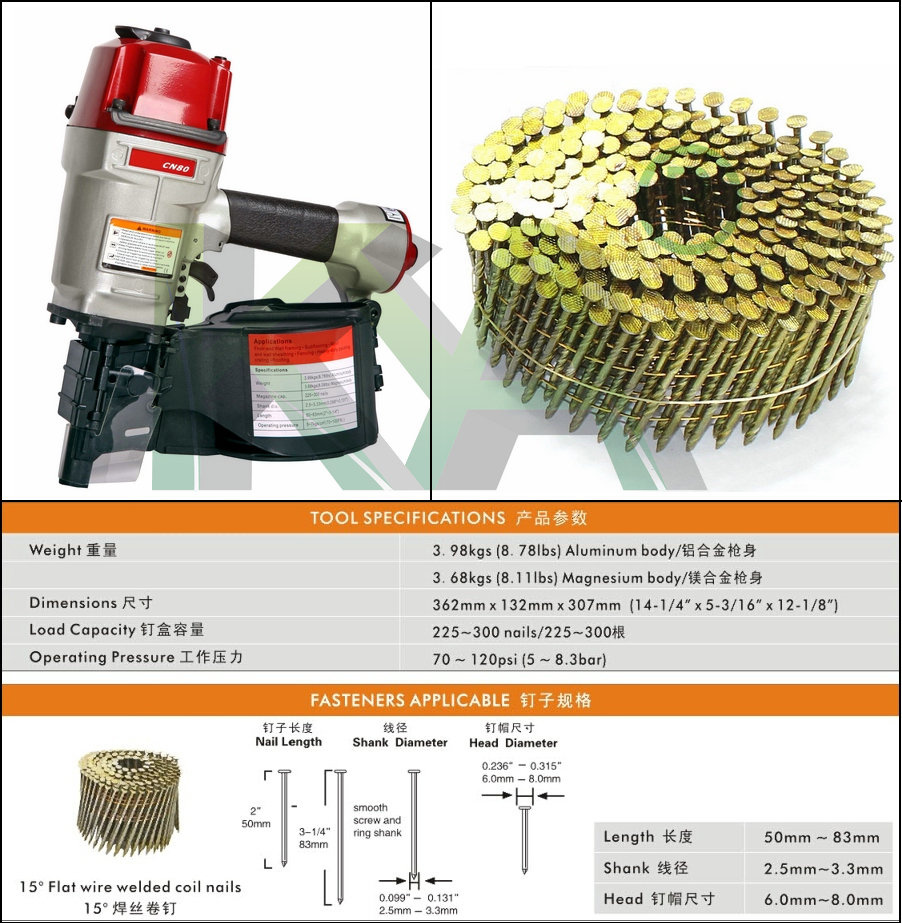

Tool Specification:| MODEL | CN80 (Aluminum body/Magnesium body) |
| FIRING METHOD | Contact trip |
| FIRING MODE: | Bump fire |
| WEIGHT: | 3.98kgs (Aluminum body) 3.68kgs (Magnesium body) |
| DIMENSIONS: | 362 x 132 x 307mm |
| OPERATING PRESSURE: | 5-8.3kgs/cm2 (70-120psi ) |
| Customized | Customized is available if you provide a drawing or sample |
| OEM Service | Available |
Nail Specification:| 15° Flat wire welded coil nails |
| LENGTH: | 50mm - 83 mm |
| SHANK DIAMETER: | 2.5 - 3.3 mm |
| HEAD: | 6.0-8.0mm |
| SHANK TYPE: | Smooth, ring & screw |

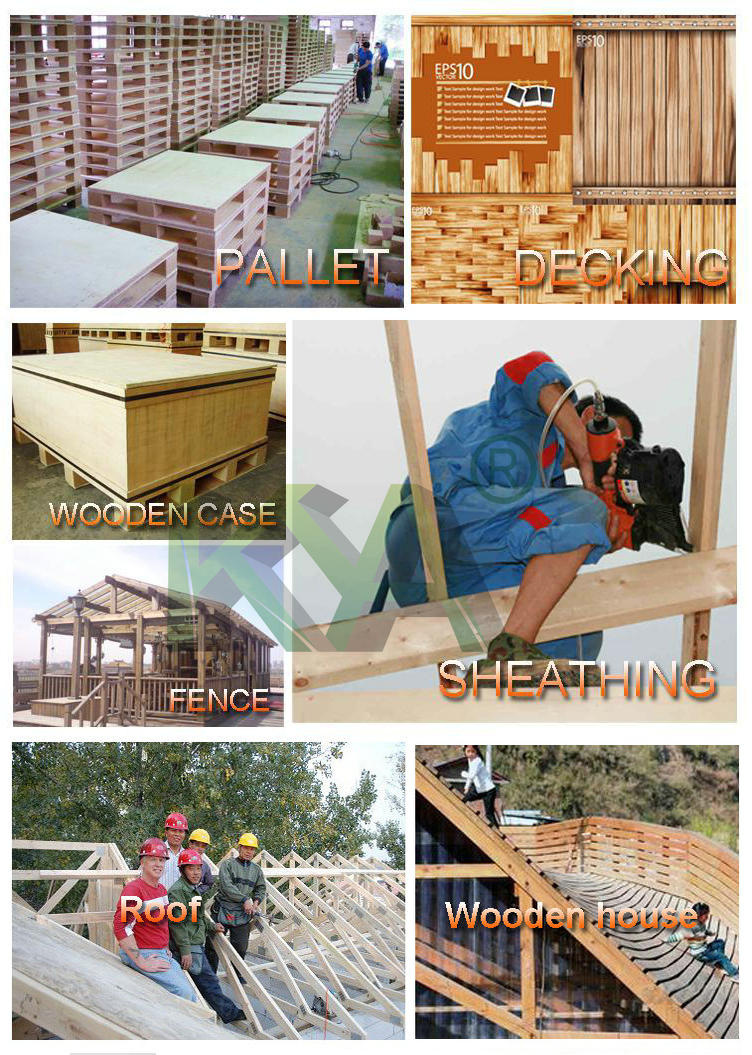

Applications:
Assembly and repair of pallets,drums,export wooden boxes.
Crating
Wooden Fencing
General construction applications including:siding,decking and sheathing
Features: Ergonomic design, well balanced
Extra heavy-duty, die cast aluminum construction Big load capacity Powerful, rapid nailing performance Comfortable rubber grip Light weightService and Repars:| No. | Symptom | Problems | Solutions |
| 1.1 | Air Leak | Air leak in the cylinder cap when tools don't work | 1.Loose head valve piston seal or o-rings . | Check and replace the head valve piston set |
| 2.Worn or damaged o-ring or cylinder cap gasket under cylinder cap | Check and replace o-ring or cylinder cap gasket under the cylinder cap |
| 1.2 | Air leak in Trigger area when tools don't work | 1.Damaged o-ring in trigger valve | Check and replace o-ring |
| 2.Damaged o-ring in trigger valve stem | Check and replace o-ring |
| 3.Dirt in the trigger valve | Check and clean the trigger valve |
| 1.3 | Air leak in cylinder cap when tools are working | 1.Damaged head valve piston o-rings | Check and replace o-rings |
| 2.Damaged seal under cylinder cap | Check and replace seal |
| 1.4 | Air leak in nose when tools are working | 1.Worn or damaged bumper | Check and replace bumper |
| 2.Loose driver(piston unit) thread | Check and replace driver(piston unit) |
| 1.5 | Air leak in Trigger area when tools are working | 1.Worn or damaged trigger valve head | Check and replace trigger valve head |
| 2.Damaged head valve piston o-rings | Check and replace head valve piston o-rings |
| 2 | Failed to get driver(piston unit) back to the correct position completely. | 1.The driver(piston unit) is not straight or the driver guide(nose) is wrong assembled. | Straighten the driver(piston unit) or verify driver guide(nose) and magazine |
| 2.Worn or damaged nozzle | Check and replace nozzle |
| 3.The space between piston o-ring and cylinder is too tight. | Check if the cylinder is adequate lubrication or replace the o-ring on the piston. |
| 3 | Work weakly and sluggishly | 1. Worn or damaged piston o-ring | Check and replace piston o-ring |
| 2.Inadequate lubrication for head valve piston o-rings or too tight head valve piston o-rings | Place 2 or 6 drops of oil on o-rings or replace head valve piston o-rings |
| 3.Dirt in the nozzle | Check and clean the nozzle |
| 4 | Tool jams frequently | 1.Damaged or Worn driver (piston unit) | Check and replace driver (piston unit) |
| 2.Damaged or Worn driver guide (nose) | Check and replace driver guide (nose) |
| 3.Driver guide cover is bent,so the space between driver guide cover and driver guide is too big | Check and replace driver guide cover |
| 5 | Nail can not be shot | 1. Driver (piston unit) can't return to the correct position. | Refer to no. 1 Symptom |
| 2.Driver guide(nose) can not match magazine well | Check and correct the position between driver guide(nose) and magazine |
| 3.Worn or damaged nail pusher compression spring |
FAQ:1.Q:Do you have your own production factory?
A:Yes,we not only have our own factory,We also have a cooperative relationship with more than one hundred factories in China2.Q: Can you send us samples?
A: We are pleased to send you the sample to test the quality and market.
3.Q: About your products, could you do it OEM?
A: Yes, OEM service is available.
4.Q: Do you also provide spare parts of pneumatic tools?
A: Once we confirm the models you'd like to order, we will send you the diagram for checking and also suggest you some easy-broken parts.
5.Q: For the product, could you spray other color of painting?
A: Yes, color can be customized.
6.Q: What's the delivery time?
A: It usually takes about 20-30 working days to produce one order.
7.Q: How is the payment terms?
A: Normally T/T 30% in advance and T/T 70% before shipment.
8.Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
9.Q: How does your factory do regarding quality control?
A: We always pay great attention to quality control from the very beginning and every product was tested piece by piece before delivery.
10.Q: Do you have quality certification?
A: Yes, we have CE, SGS,ISO, ect.
Why choose KYA?1.Short production time:Our company have established the strong partner-ship with over 100 factories and We have our own factory.
2.Reasonable prices and High quality:Quality and prices are our focus because we know what you will care at most.
3.Satisfactory after-sales service: Middle time production report with photos will be sent to you and also reconfirm accomplished date. We will establish close contact with you.Any problem you will get reply at the first time. 4.Free samples: Free samples available at any time.
You can get competitive prices from us because we possess big manufacturing relationship in China.
