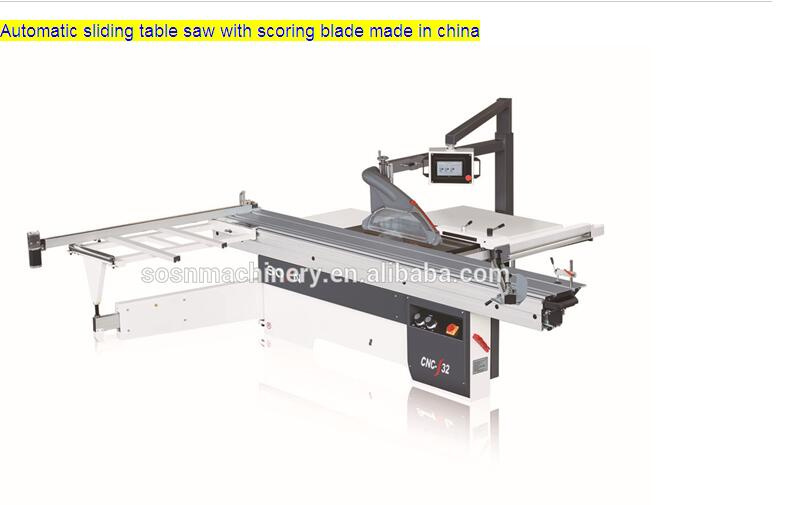

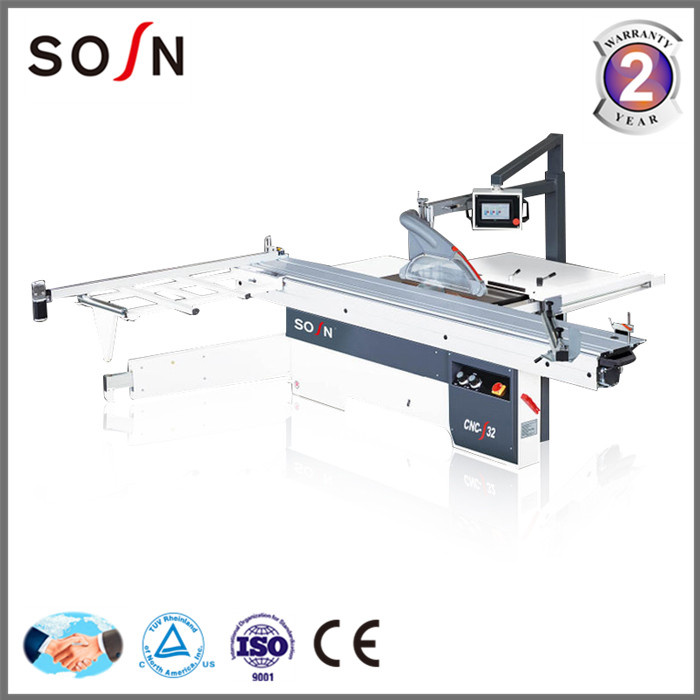

CNC-32tas Automatic Sliding Table Panel Saw with Scoring Blade
| Price: |
US $ 5000-120000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
CNC-32 TA |
| Warranty: |
2 Years |
| Voltage: |
380V |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Certification: |
ISO |
Product Description
Features
1.Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others stucture and similiar hardness.
2.Movable table guide track is plating chromium steel bars structure, exact and durable.
3.Made of high-stength extruded aluminum alloy, movable table is high in strength and won't bend.
4.With oxidation treatment, movable table surface is beautiful ad hardwearing.
Quick Details
- Condition: New
- Type: Table Panel Saw
- Use: Woodworking
- Style: Horizontal
- Place of Origin: Shandong, China (Mainland)
- Brand Name: SOSN
- Model Number: CNC-32TAS
- Usage: wood cutting
- Voltage: 380v (optional)
- Power(W): 5.5kw +1.1kw
- Dimension(L*W*H): 3200x3150x900mm
- Weight: 800kg
- Certification: CEM and ISO9001
- Warranty: 2 years
- Name: automatic sliding table saw
- the length of sliding table: 3200mm
- the tilting of saw blade: 0-45 degree
- the power: 5.5kw +1.1kw
- the structure of sliding table: Altendorf structure
- the size of sliding table: 3200x400mm
- Main technical parameter
Diametion of sliding table | 3200*400mm |
| Gross cut capacity | 3200mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 300mm |
| Scoring saw blade diameter | 120mm |
| Speed of main saw spindle | 4500/6000rpm |
| Speed of scoring saw blade | 8000r/min |
| Tilting saw blade | 45 degree and 90 degree |
| Main motor | 5.5kw |
| Scoring motor | 1.1kw |
| Height of cut | 90mm |
| Height of cut 300mm saw blade at 45 degree | 60mm |
| Main spindle diameter | 30mm |
| Net weight | 800kgs |
| Gross weight (with plywood wooden package) | 850kgs |
| Overall diamension | 3200*3150*900mm |
-
- Reasons to choose SOSN:
1: professional team--as much as possible to meet your needs
2: quick delivery--timely and effective
3: excellent after-sale services--no worries anymore
4: friend partner relationship--a win-win cooperation
If any question,feel free to contact me.
I am ready to serve you all the time!
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
