CNC Carbide Machine Tool End Mill Cutter
| Price: |
US $ 3-10/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Name: |
Carbide End Mill |
| Machine Type: |
Milling Maching |
| Performance: |
Excellent Wear Resistance |
| Usage: |
General High Speed Cutting |
| Business Type: |
Manufacturer |
| Advantage: |
Over 20 Years Experience in This Line |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Control Method: |
Open-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
| Processing Precision: |
+-0.02mm |
| Movement Method: |
Milling Machine |
Product Description

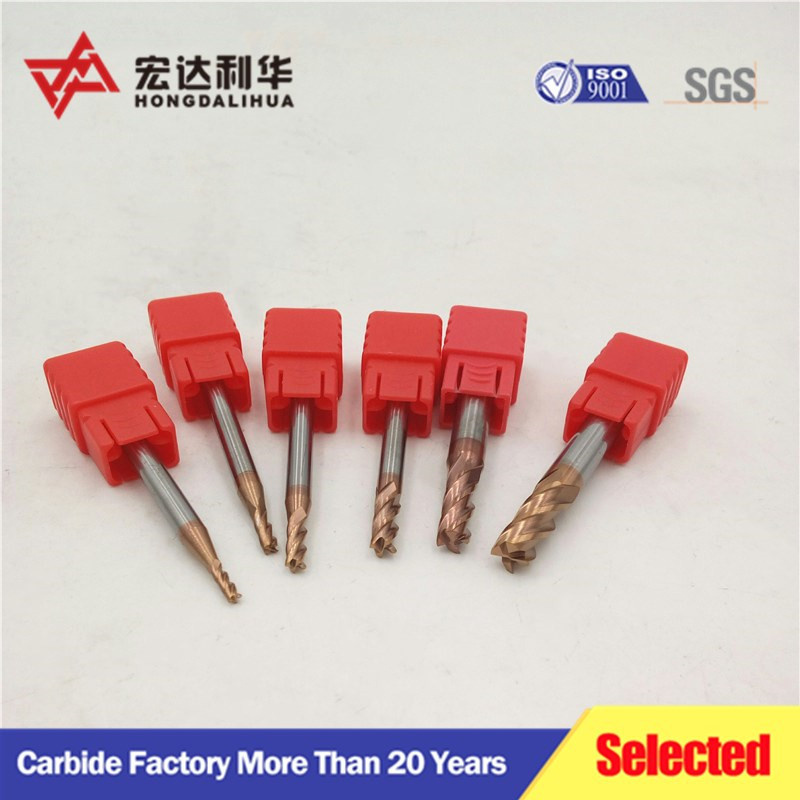

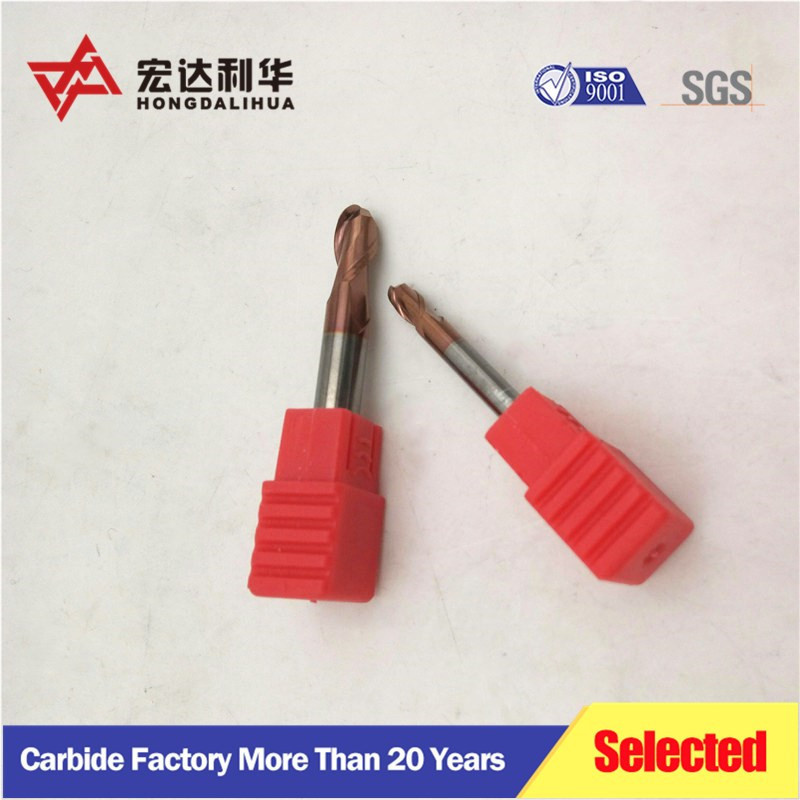

CNC Carbide Machine Tool End Mill Cutter
javascript:void(0);
Application of high performance end mill tungsten solid carbide milling cutter specification
Specifications
1.Hardness:HRC45/50/55/60/65
2.Flutes:2 flutes or 4 flutes
3.Helix Angle: 35 degree
4.Centered Cutting: Yes
5.Type: Square End Mill / Flat end mill / Metal cutting tool
6.Workpiece material: Steel, mould steel, low alloy, hardened steel, staninless steel, alloy steel
7.Coating:TiAlN
8.Tool body material:Tungsten solid carbide
9.Color: Black, yellow | HRC Grade | 55 |
|

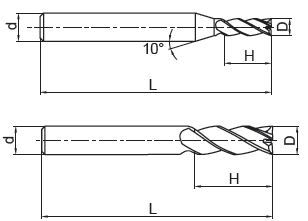

Sharpe of head
| Flat
|
| Flutes | 4 |
Over Length
| 50 mm |
| D (Dia. of edge) | 8.0 mm |
| d (dia. of shank) | 8.0 mm |
Standard size or make to order for special specifications | specification | cutting | shank diameter | flute length | overall | |
| D2.0*6*D4*75L | 2.0 | 4 | 6 | 75 | |
| D4.0*11*D4*75L | 4.0 | 4 | 11 | 75 | |
| D6.0*15*D6*75L | 6.0 | 6 | 15 | 75 | |
| D8.0*20*D8*75L | 8.0 | 8 | 20 | 75 | |
| D4.0*8*D6*100L | 4.0 | 6 | 8 | 100 | |
| D6.0*15*D6*100L | 6.0 | 6 | 15 | 100 | |
| D8.0*20*D8*100L | 8.0 | 8 | 20 | 100 | |
| D10.0*25*D10*100L | 10.0 | 10 | 25 | 100 | |
| D12.0*30*D12*100L | 12.0 | 12 | 30 | 100 | |
| D16.0*40*D16*100L | 16.0 | 16 | 40 | 150 | Unit:mm |
Description of solid carbide end mills ,CNC end mill ,hardness end mill | Flutes No. | 2/3/4 Flutes |
| Material | HSS,Carbide etc. |
| Coating | AlTiN,NACO BLUE/NACO BLACK/TiN etc. |
| Helix Angle | 35°,45° |
| Hardness | HRC45/55/58/65 |
| Size | Overal Length:50-150mm |
| Customized | Accept |
| Smooth Finish | Highly Polished |
| Feature | Excellent chip evacuation |
| Measurement | Metric |
| WEIX45HRC Aluminum Square series - 2F/4F |
| Material:© WC=0.8(UM)Co=10 HRA=92.2 HV=1620 Rupture=4000(kg.N/mm²) |
| |
| Mode | FD
Flute Dia | SD
Shank Dia | FL
Flute Length | TL
Total Length |
|
| WEIX601 | 3 | 3 | 8 | 50L |
| WEIX602 | 1 | 4 | 3 | 50L |
| WEIX603 | 1.5 | 4 | 4 | 50L |
| WEIX604 | 3 | 4 | 5 | 50L |
| WEIX605 | 2.5 | 4 | 6 | 50L |
| WEIX606 | 3.5 | 4 | 10 | 50L |
| WEIX607 | 4 | 4 | 11 | 50L |
| WEIX608 | 5 | 5 | 13 | 50L |
| WEIX609 | 1 | 6 | 3 | 50L |
| WEIX610 | 1.5 | 6 | 4 | 50L |
| WEIX611 | 2 | 6 | 5 | 50L |
| WEIX612 | 2.5 | 6 | 6 | 50L |
| WEIX613 | 3 | 6 | 8 | 50L |
| WEIX614 | 3.5 | 6 | 10 | 50L |
| WEIX615 | 4 | 6 | 11 | 50L |
| WEIX616 | 5 | 6 | 13 | 50L |
| WEIX617 | 6 | 6 | 15 | 50L |
| WEIX618 | 7 | 8 | 17 | 60L |
| WEIX619 | 8 | 8 | 20 | 60L |
| WEIX620 | 10 | 10 | 25 | 75L |
| WEIX621 | 12 | 12 | 30 | 75L |
| WEIX622 | 14 | 14 | 35 | 100L |
| WEIX623 | 16 | 16 | 40 | 100L |
| WEIX624 | 18 | 18 | 40 | 100L |
| WEIX625 | 20 | 20 | 40 | 100L |
| Lengthening | | | | |
| WEIX626 | 3 | 3 | 15 | 75L |
| WEIX627 | 4 | 4 | 20 | 75L |
| WEIX628 | 5 | 5 | 25 | 75L |
| WEIX629 | 6 | 6 | 25 | 75L |
| WEIX630 | 7 | 8 | 25 | 75L |
| WEIX631 | 8 | 8 | 30 | 75L |
| WEIX632 | 3 | 3 | 15 | 100L |
| WEIX633 | 4 | 4 | 25 | 100L |
| WEIX634 | 5 | 5 | 30 | 100L |
| WEIX635 | 6 | 6 | 30 | 100L |
| WEIX636 | 8 | 8 | 35 | 100L |
| WEIX637 | 10 | 10 | 40 | 100L |
| WEIX638 | 12 | 12 | 45 | 100L |
| WEIX639 | 8 | 8 | 40 | 150L |
| WEIX640 | 10 | 10 | 50 | 150L |
| WEIX641 | 12 | 12 | 50 | 150L |
| WEIX642 | 14 | 14 | 70 | 150L |
| WEIX643 | 16 | 16 | 70 | 150L |
| WEIX644 | 20 | 20 | 80 | 150L |
Super raw material | HRC45 | HRC55 | HRC60 | HRC65 |
| YG10X | YG10.2 &WF25(Taiwan) | K44 & K40 (German) | H10F (Sweden) |
Grain Size:0.7um
Co:10 %
Flexural strength:3320N/mm2 | Grain Size:0.6um
Co:10 %
Flexural strength:4000N/mm2 | Grain Size:0.5um
Co:12 %
Flexural strength:4300N/mm2 | Grain Size:0.5um
Co:10 %
Flexural strength:4300N/mm2 |
Super coating | Item | AlTiN | TiAIN | TiSiN | NACO |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
Our Advantages: - Business Type: Manufacturer, Factory.
ISO9001:2008, SGS. - Advanced technology, HIP sintering and precision grinding to ensure the goods performance;
- 100% Virgin pure Raw materials;
- Each product through the strict inspections and confirm to the requirements of the lab parameters;
- OEM & ODM are welcomed;
- Small order is acceptable;
- Flexible payment terms (L/C,T/T, western union, etc);
- Provide custom made service with customer's drawing; Other size could be offered by your requirements;
- We make sure to provide you with the best solutions for your individual case. Whether standard items or non-standard items all available;
- Fast delivery and high quality;
- Best after-sale service.
Other Tungsten Carbide Products in Lihua:
Company Profile
Zhuzhou Lihua Cemented Carbide Co.,Ltd
About Lihua Cemented Carbide
Established in 1990, specialized in production carbide products more than 20 years and located in zhuzhou city which is the hometown of tungsten carbide in China .
Our products sold well to worldwide ,has been build a long term relationship with our customers from Italy , Portugal, German ,Turkey ,USA ,Mexico ,India , Austrilia ,South Africa etc .
Main Products
Our Main products include : Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Cusomized cutter :woodworking tool ,V-cutter , textile cutter , shoes cutter ects ,Any kinds of customized carbide products .
Daily capacity of 15Ton

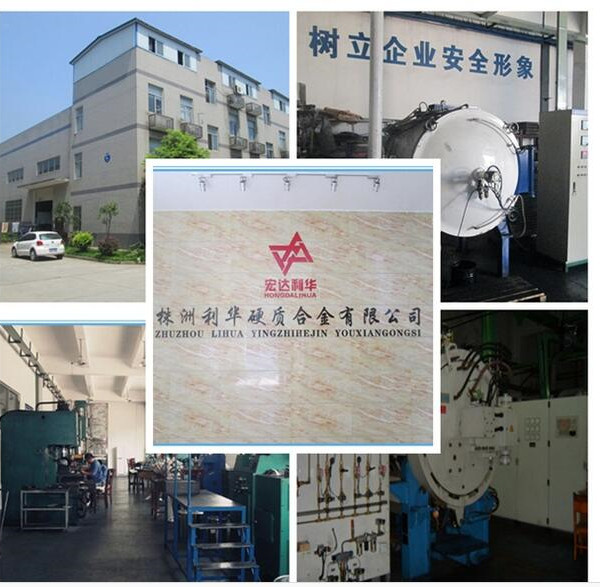

We have sophisticated equipments, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine ect, Our production capacity up to 15Ton per day. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.
Strictly QC
We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
Contact:
Foreign Sales Representative : Tiffany Cao
Mobile/ : +86 15173326437
Website: www.en.lihuacarbide.com
Factory Add: Tower A, 6th Building, Block C, Auto parts park, Tianyuan zone,Zhuzhou city, Hunan province, China
Postcode: 412000
Company Profile
Zhuzhou Lihua Cemented Carbide Co., Ltd
About Lihua Cemented Carbide
Established in 1990, specialized in production carbide products more than 20 years and located in huzhou city which is the hometown of tungsten carbide in China.
Our products sold well to worldwide, has been build a long term relationship with our customers from Italy, Portugal, German, Turkey, USA, Mexico, India, Australia, South Africa etc.
Main Products
Our Main products include: Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Customized cutter: Woodworking tool, V-cutter, textile cutter, shoes cutter ects, Any kinds of customized carbide products.
Monthly capacity of 15 Ton
We have sophisticated equipment, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine ect, Our production capacity up to 15Ton per month. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.
Strictly QC
We have a professional QC team follow to the System of ISO9001: 2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
