| Prod Model: |
MJP330 |
| Voltage Condition: |
220V/380V/415V/440V etc ; Single Phase/Three Phase |
| Warranty Period: |
12 Months |
| Layout: |
Horizontal |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Certification: |
ISO |
| Type: |
Reciprocating Saw |
Product Description

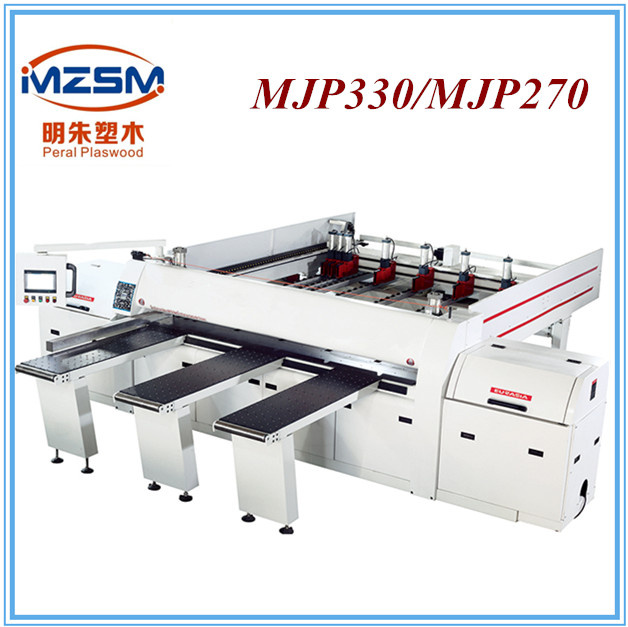

Feature:CNC Beame Electronic Panel Saw for woodworking cutting saw
1. the best choice for furniture manufacturers to improve to improve production capacity and capability.
2.The thickness of panel cut each time could reach.
3.It is equipped with high power motor with pure aluminum case to ensure the stabilities.
4.When abnormal occurred,the machine will automatically locate the problem and output the message on the touch screen ,which help the operators to solve the problems easily.
Main Technical Parameter:| Model | MJP330 |
| Working Thickness | 75mm |
| Working Width | 3270mm |
| Main Saw Blade Power | 11kw(frequency control) |
| Saw block Driving Power | 1.5kw |
| Servo Motor Power | 1.0kw |
| Main Saw Blade Diameter | 355mm |
| Auxiliary Saw Blade Diameter | 180mm |
| Main Saw Spindle Diameter | 30mm |
| Auxiliary Saw Spindle Diameter | 30mm |
| Saw Forward Speed | 6-30m/min |
| Main Saw Spindle Speed | 4800rpm |
| Auxiliary Saw Spindle Speed | 6500rpm |
| Net Weight | 5300kg |
| Dimension | 6000/5400/1600(mm) |
Our Corporation's Value and Obligation:1) Do business with integrity. No cheating and deception.
2) We are committed to offer high quality products.
3) We are committed to provide professional and efficient premium services.
4) If you are or will be a distributor, we are willing to help you develop new markets, enhance performance.
5) If you are the end user, we will help you choose the right products and offer life-time technical support.
Quality Control:1) During procurement, we have strict control about the quality of the spare parts.
2) Manufacturing period, we have QC department to monitor each step of production process by different testing tools and inspection forms.
3) Before shipment, we will test machine by different common materials, and make necessary adjustment and data record. Also we will take photos and some sampling videos for customers.
Warranty:1.One year warranty for the whole machine; Lifetime Maintenance.
2.Within warranty period, any damage happens due to machine quality problems; We will be responsible for replacing parts for free, except regular consumables (such as cutting tools) and the damage by man-made irregular operating.
3.Customer has to pay the International Express cost.
4.Warranty time starts after goods arrival in customer's location.
Payment Terms:30% T/T in advance as deposit, and the balance 70% T/T before shipment.
Packaging&Shipping:(1) All machines are packaged as SEAWORTHY wooden case with export standard!
(2) We provide FAST DELIVERY for you!
After-sale Service:1. Guarantee long-term supply for spare parts; Unlimited Lifetime maintenance.
2. Offer life-time 24 hours online technical support for free. We can communicate by way of phone, e-mail, whatsapp, wechat, QQ, skype, or team-view, etc.
3. Offer free training for operation & maintenance of equipment.
4. Offer One-stop service for machine installation and technical training.
5. We will make return visit non-scheduled, in order to make assessment for after-sale service technician, make sure our service much better.
Our Market: Now the market is mainly distributed in North America, South America, Europe, Oceania, Middle East, Southeast Asia, Africa, South Asia and West Asia. We have established cooperative relationship with hundreds of clients in nearly 30 countries. We are actively looking for new partners to explore the new market, to achieve win-win. We prefer to provide valuable product, service and solution for more end users. We appreciate you join us, to be partner in business, to be friend in life, to be one family forever.
Product: We produce woodworking machinery, such as panel saw, edge bander, CNC routers, four side moulder, band saw, drilling machine and other woodworking machines. We offer customized service according to your special requirement, such as, shape, dimension, color, specification and structure design, etc. OEM is available, too.
If there's any kind of our machines be of interest to you, please feel freely to contact me!
We will do our best to live up to customers' trust and never let you down!
QINGDAO EDAWN MACHINERY Co., Limited, has been dealing in woodworking machinery for more than 30 years, started at the beginning of 1992. Our own factory, QINGDAO EDAWN MACHINERY Co., Limited, has over 30 years' history of manufacturing all kinds of China-made woodworking machinery since 1988, especially for the MJ series sliding table panel saw & MF series edge banding machine, KDT series edge banding machine, MFS series curve&straight edge banding machine etc, MJB/MJP series beam saw machine, MZB series line drilling and hinge drilling machine etc. It has the extremely important guiding function in the circle. During the past few years, with the development of the company and the staff, we also expanded our production line to related fields like general machinery, CNC routers, Laser machinery, Plywood making machine and related hardware, ect.
QINGDAO PERAL PLASWOOD TRADE Co., Ltd, has been dealing in kinds of woodworking machinery, plastic machinery, wood product, plastic product and hardware tool for maore than 15 years!
EDAWIN MAIN PRODUCT:
1, Sliding table panel saw
2, Beam saw
3, Edge Banding machine
4, Wide belt sanding machine
5, Drilling machine
6, Cold press machine/hot press machine
7, Dust collectors
8, Planer/Thicknesser etc
PERAL PLASWOOD TRADE MAIN PRODUCT:
1, Plastic pipe extrusion line
2, Plastic sheet/board extrusion line
3, Plastic profile extrusion line
4, Plastic pipe butt fusion machine
5, Plastic recycling machinery
6, Plastic and wood composite machinery
7, Plastic and wood composite product
8, Wood product
9, Plastic product
10, Hardware tool
Thanks for our top quality, excellent service and competitive price, thanks for all the support from our customers, now our machine has got great reputation as the brand EDAWN for woodworking machinery, PERAL for butt fusion machine and DISCOUNTMACHINERY MACHINERY etc all over the world.
