| Price: | US $ 10000-16000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | 500-4200 |
|---|---|
| Saw Type: | Miter Saw |
| Application: | Metal Saw |
| Power Source: | Electricity |

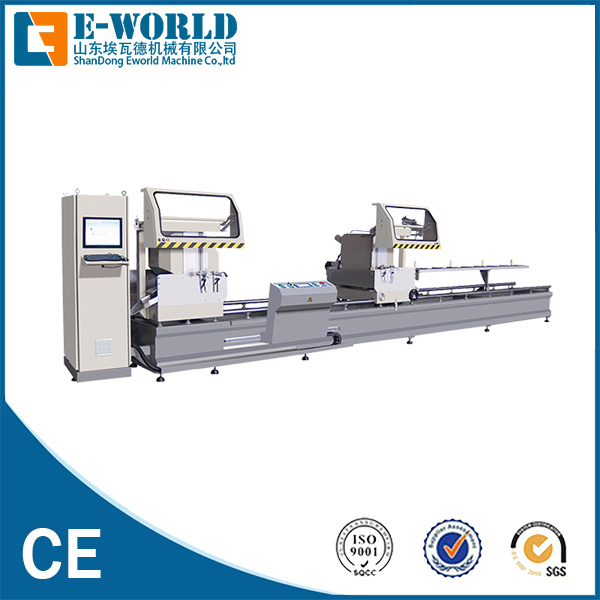

| CNC 4200 aluminum Cutting machine. Introduction Miter Saws work equipment used for cutting. Miter saws are very important for various types of carpentry work. They are used to create the perfect piece to form the elbow and the side frame. Basic miter saw that has a limited capacity cuts. Miter saws that have different types to provide the most versatile cutting options. But, from various types of miter saw, double miter saw is the most applications. Why should you choose miter double saw? double miter saw technology uses two saw blades that provide two complementary bevel miter cuts without resetting the head. This feature will obviously vary depending on manufacturer but usually double miter saws provide such benefits as follows: 1.Enable the production of continuous production and repetitive high volume 2.Provide minute variations in the cutting 3.May calibrated scales and fences 4.Hold the tweezers, 5.Dust filters, connection port or an internal system to collect dust This tool is an integral component of how double miter saw equipment will function, whether built by a machine, you can achieve, as bolster precision, smooth cutting, reducing waste of materials, the ability to cut wood, plastic, and various metals. In addition to providing manufacturers May: 1.Improved features include semi-automatic 2.Locking Security 3.Front service access for maintenance and easy changeovers This Advantage of double miter saw products. You can compare that with another type miter saws. Do not hesitate, to purchase this product, because it will help facilitate your work. | |

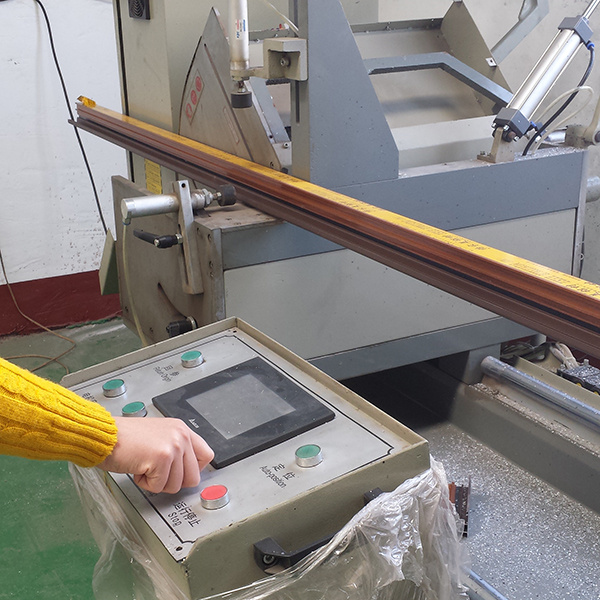

| Control : The user-friendly control panel installed on the various models ,runs on bearing and allows corrected positioning of the moving cutting heads according to cutting specifications.The work cycle is optimized through creation of the cutting lists thus reducing scrap as well as workpiece loading/unloading times | |

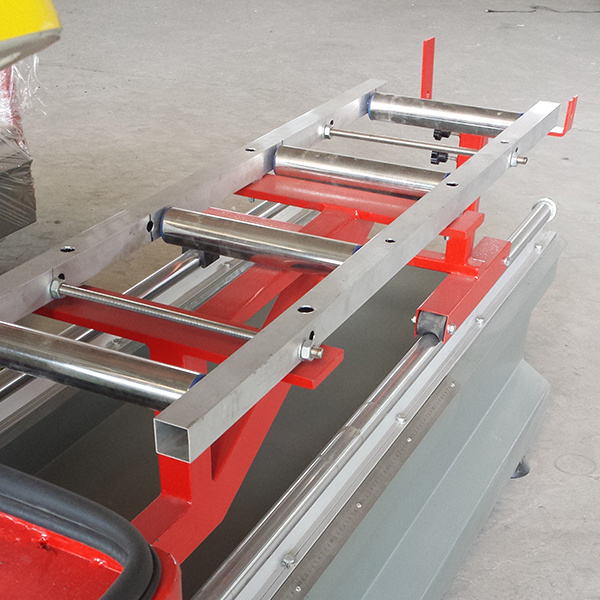

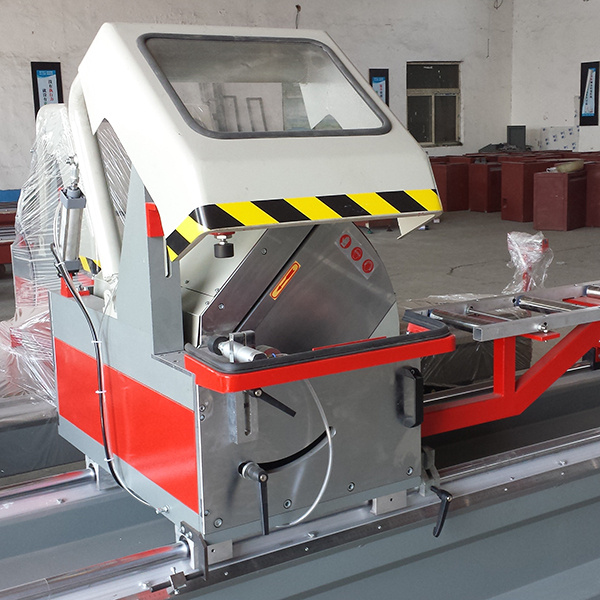

| Tilting of the moving cutting heads Tilting of the moving cutting heads:rotation of the heads about the horizontal axis is powered by pneumatic cylinders. External angels from 22.30' ,45, 90 can be obtained from machines fitted with 500 mm diameter blades. | The intermediate support proves highly useful when cutting light profiles with considerable lengths. In such case the support seeks to create the ideal condition to support the profiles. This accessory is available for all lengths |
Technical parameter: | |
| MODEL | LJXZ-500*4200 |
| Input voltage | 230/460V /3/60Hz |
| Input power | 4.4Kw/6.5HP |
| Air pressure | 0.5~0.8MPa/ 120psi |
| Air consumption | 200L/min |
| Motor rotation speed | 3400r/min |
| Cutting length | 400~4200mm/14-200 |
| Cutting length tolerance | + 0.005 |
| Cutting angles | 90, 45, 67.5 degrees |
| Cutting angle tolerance | +Â 1/10 of a degree |
| Cutting width | 10~130mm |
| Cutting height | 10~300mm |
| Saw feeding speed | 0~3m/min |
| Saw blade standard | 500x4.4x30xZ120 |
| Overall dimensions | 5.5x1.7x1.6M |
| Our products details: | |
