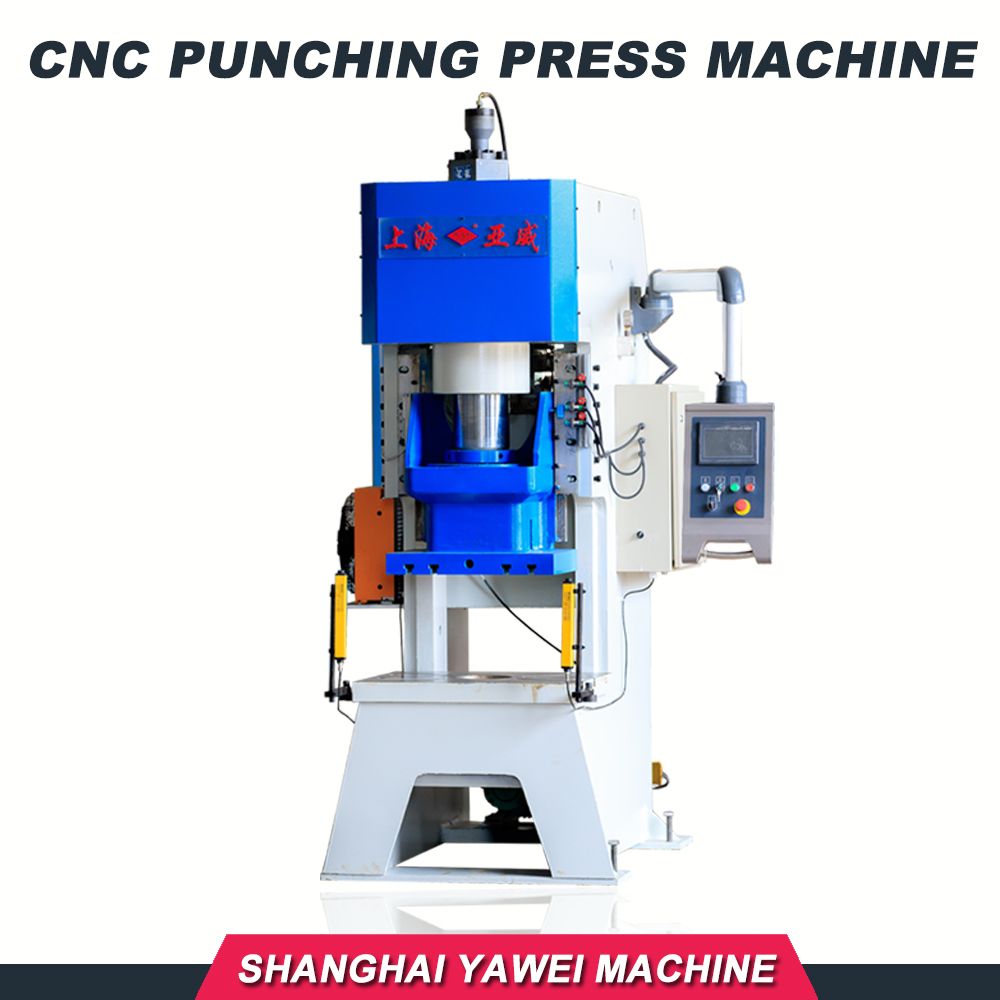

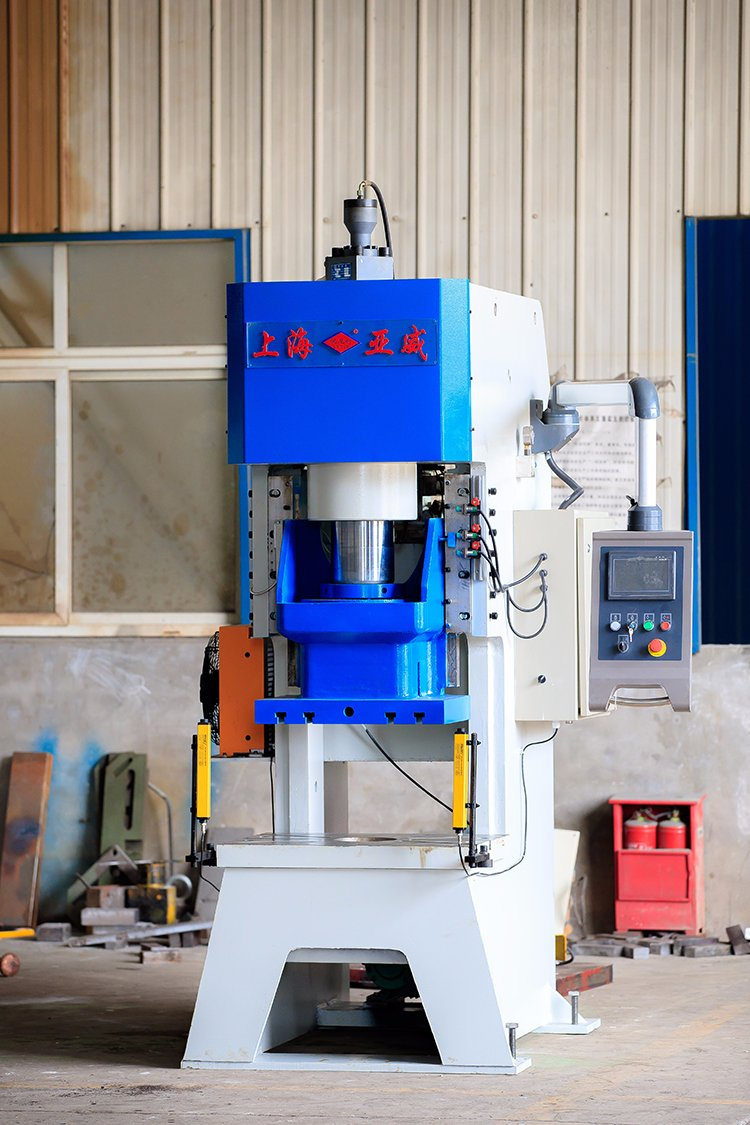

CNC Hydraulic Power Press Y27y Series Punching Machine (Y27y-63)
| Price: |
US $ 8900-9200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
Y27Y-63 |
| Type: |
High-Speed Punching Machine |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Power Source: |
Hydraulic Pressure |
| Precision: |
Normal Precision |
Product Description
Product DescriptionCNC hydraulic punch machine
The SHANGHAI YAWEI® product designs combine accuracy, speed, flexibility, durability, reliability and advanced
technology to deliver machines with the highest performance-to-price ratio in the industry.
1. CNC hydraulic punch machine
- Y27Y Series hydraulic fast press is suitable for punching ,stretching and pressing of Plasticity materails.It can work as
punching ,bending ,flanging of plate ,strectching and fine punching of sheet metal ,and cold extrusion of metal part.It can
also used for calibration,press-in ,forming of grinding wheel ,press forming of plasticity products and powder products.
- The machine uses hydraulic driving model and has the advantage if hydraulic press and mechanical press.Press force
is changable.The overload will not happened in the machine.For the slider fast down and return ,it use speeding -up oil
cyilders.The machine changed to slow working speed when reached the workpiece, which reduce the discharge if oil
pump and motor power.
* . The machine by the European Union CE certification and ISO quality system certification
2.Specifications:
- High precision,Wide application
- EU CE Certification
- CQC,ISO9001:2008
- High performance
- Easy to operation
3. Electrical system and the safety interlock:
*. Electrical components are from European,in accordance with international standards,reliable safety,long life,good anti-
interference ability,a radiation unit is fitted in electrical cabinet.
*. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy
to operate.
*. Emergency stops on machine and foot switch for safety,Foot pedal conforming to CE regulation
Reliability:
SHANGHAI YAWEI® has a strict policy for the choice of its components, on the basis of an extensive experience acquired
over decades. All components are certified in accordance with European standards and their main sources are Germany,
USA, Holland, Italy and Switzerland.
| SPECIFICATIONS FOR Y27Y CNC Hydraulic Punch machine /Fast Press Machine |
| Main performance parameters | Model | | Y27Y-63T |
| Nominal Pressure | KN | 630 |
| Stroke Adjuster | mm | 10- 120 |
| Slipper Max.Stroke | mm | 130 |
| Loading Height | mm | 160-270 |
| The Number of Trips | Time/Min | 30-60 |
| Slider trip | mm | - |
| Greatest Pressure | MPA | 25 |
| Speed to Quickly Move Downwards | m/s | 220 |
| Work Speed | m/s | 8 |
| Back Stroke Speed | m/s | 180 |
| Workbench Size | mm | 650×450/ Ø150 |
| Throat Depth | mm | 260 |
| Slider Size | mm | 320×220 / Ø50 |
| Workbench Height From the Ground | mm | 550 |
| Motor Power | KW | 5.5 |
| Overall Dimensions | mm | 1250×1450×2270 |

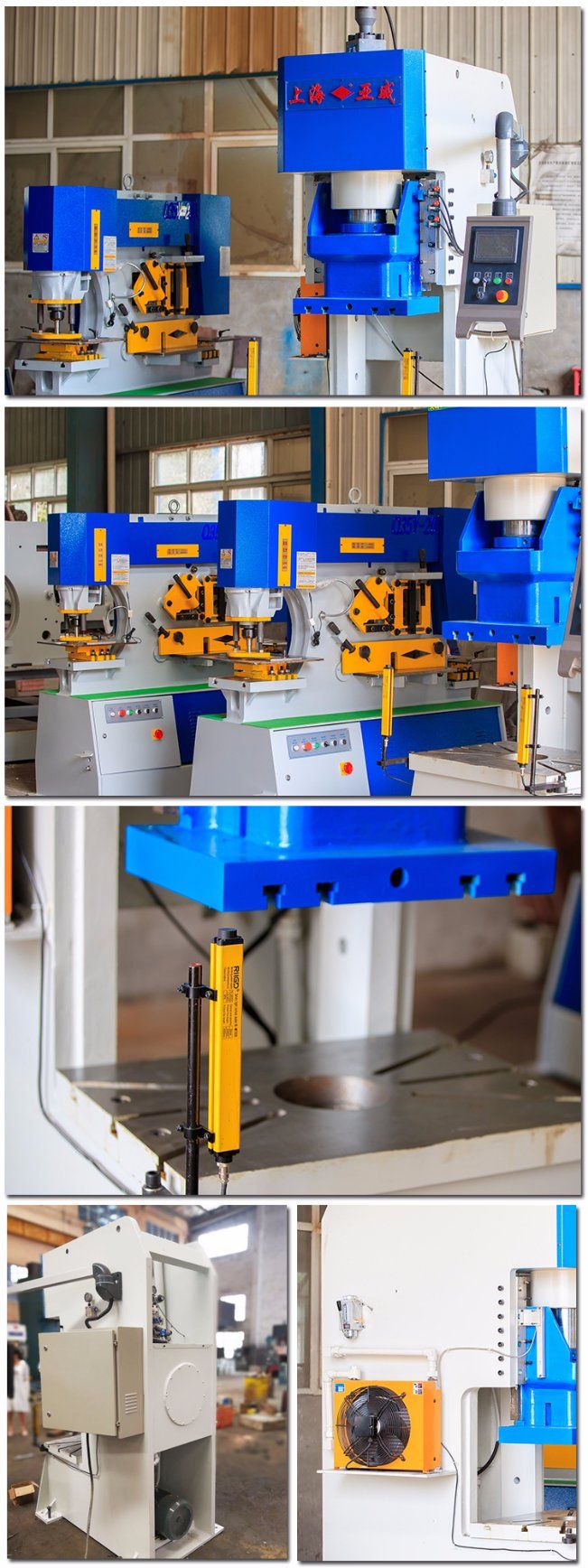

Detailed ImagesOur Company

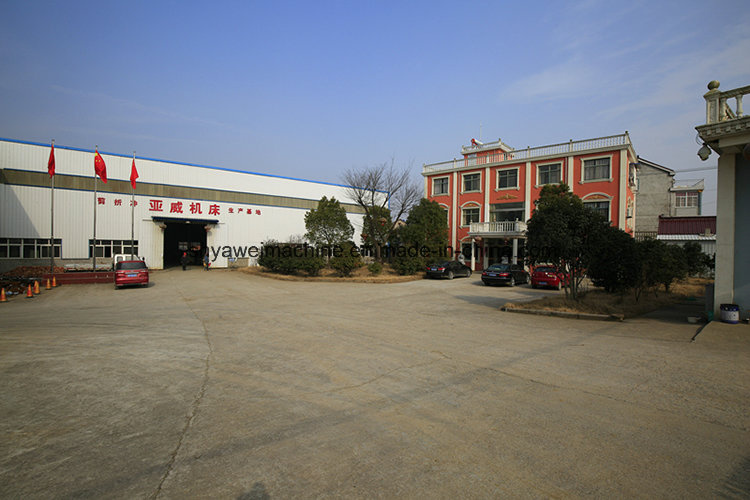

Shanghai Yawei Machine tool manufacturing co., LTD(delta) is located in China Shanghai urban and rural integration
model of the sample located in Jiading district of Shanghai,the gate-way machine for fusion to undertake international
industrial transfer and Shanghai Yangzi river delta has become a new trend in the regional cooperation,the machine tool
company choose promotion CCTV,China central television(CCTV)-1 unit,the Shanghai world expo exhibitors Anhui Huade
machine tool manufacturing CO.,LTD for cutting,folding ,punching machine production cooperative unit.OUR PRODUCT The gateway machine tools specializing in the production of sales:QC12 series digital display, CNC hydraulic shearing
machine; QC11 digital display type shearing machine,CNC hydraulic gate;WC67 series digital display,CNC bending
machine and three ,five cylinder bending machine; Electro hydraulic Servo CNC Bending machine;Q35 series hydraulic
combined punching and shearing machine,W11S series roller plate bending rolls;J23 series.J 21 series open-style press.
Pipe bending machine and shearing machine blade,bending machine ,model and other products.
. Yawei machine comprehensive advantage relying on the powerful production technology,advanced equipment and
advanced services strategy measures to implement the new system,new mechanism,new equipment,new technology
means of strategy,efforts to promote the development and progress of China's machine tool industry industry pioneer.
. Yawei machine in line with "For products,by the sincerity"spirit of enterprise based on Shanghai,services across the
country,facing the world.Our work goal is to meet customer needs an dedication to provide users with high-quality products
and high-quality service,widely at home and abroad to make friends from all walks of life,hand in hand to cooperate,
altogether will create the glorious future of the new brilliance! Our Service | Pre-Sales Service | After-Sales Service |
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*"To achieve and maintain excellence in quality and services and to strive for continuous improvement with a view to ensure total customer satisfaction at competitive price " | * Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Our guarantee time is 14 months from B/L Date ,If any component is damaged during guarantee time, we can send the component to the customer By DHL,TNT freely .
* Our factory can send our engineer to the customer's factory install, commission and training freely .The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
* Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service. |
Packing & Delivery | Packaging |
| Size | 130(L) * 140(W) * 250 (D)CM |
| Weight | 4.5Ton |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
