| Price: | Negotiable/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | RZCUT5-1007E |
|---|---|
| Working Area: | 1000mm X 700mm |
| Machine Dimesion: | 1880mmx 1620mm X 1300mm |
| Weight: | 841kg |
| Cutting Speed: | 0mm - 1200mm/S |
| Cutting Thickness: | 0.5mm - 6mm |
| Original Place: | Guangdong, China |
| Name Brand: | Ruizhou |
| Voltage: | 220V±10%; 380V ± 10% |
| Knives: | Oscillating Blade Head, Milling Cutter, Hobbing Cu |
| Method Of Fixing Material: | Divisional Vacuum Absorption |
| Type: | Leather Cutting Machine |
| Certification: | ISO9001 |
| Knife Type: | Oscillating Knife Cutting |

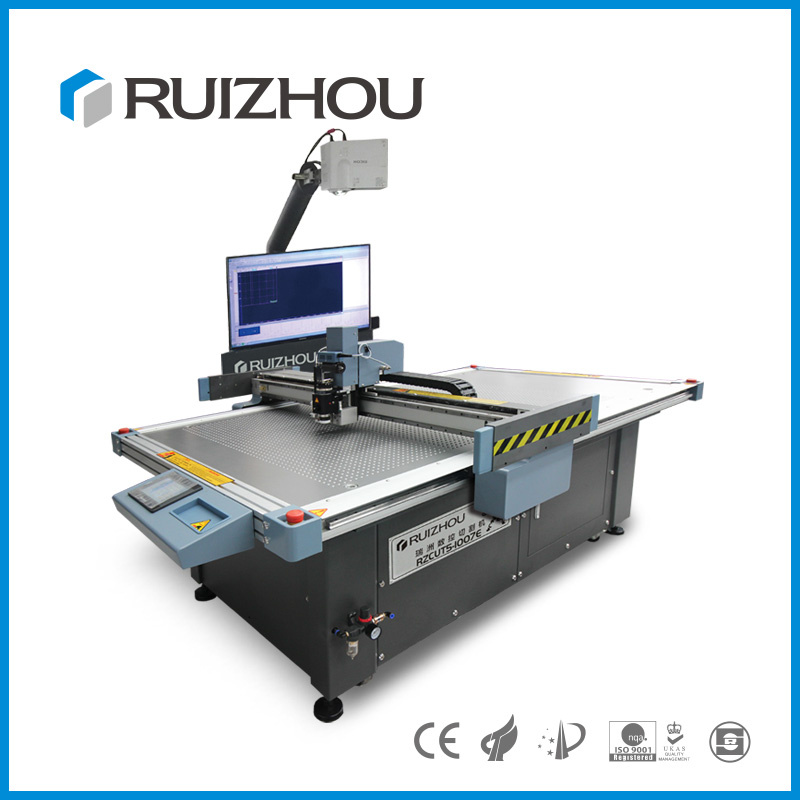

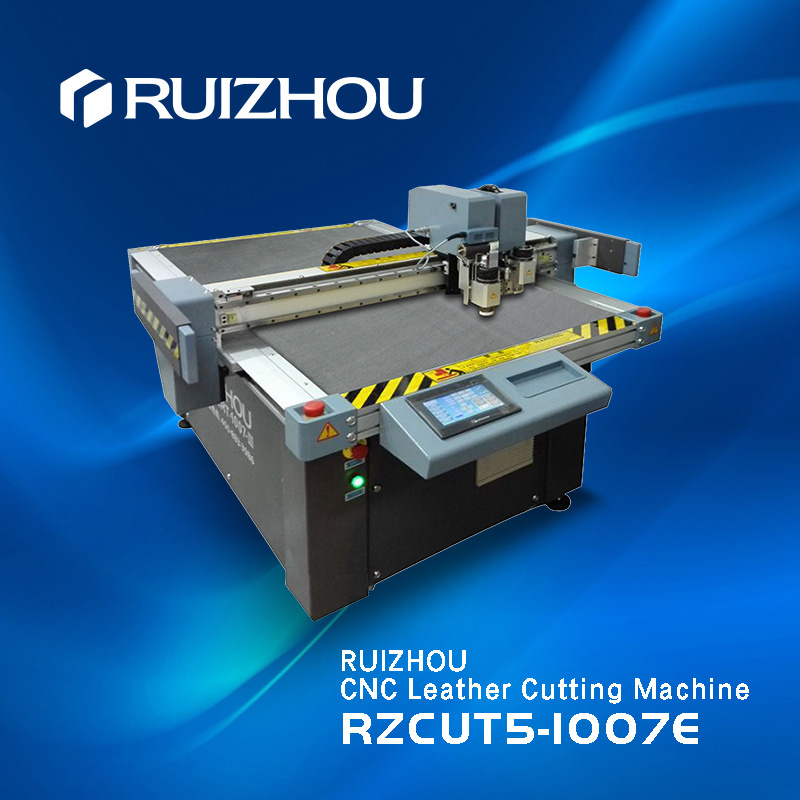

This leather cutting machine is a professional cutting system for leather shoes and footwear.
It is of good quality, high speed, stable functions and competitive price, specially providing a revolutionary cutting solution for footwear, garment, case and bag, car and plane chair, furniture and apparel industries.
| Model of patterncutting machine | RZCUT5-1007E |
| Effective working area | 1000mm×700mm |
| Cutting speed | 0-1200mm/s |
| Cutting thickness | 0.5-6mm |
| Method of fixing material | Divisional vacuum absorption |
| Cutting tools | Oscillating blade head, Milling Cutter, Hobbing Cutter, Creasing Wheel |
| Types of pen | Gel pen, Mark pen, ball pen, silver pen |
| Human Machine Interface (HMI) | Touch screen LCD |
| Motor | Servo Motor, Stepper Moter |
| Cutting accuracy | ±0.1mm |
| Machine resolution | 0.01mm |
| Software resolution | 0.025mm |
| Interface of transmission | Network port |
| Gearing | Linear guide and gear rack |
| Machine voltage | 220V±10% |
| Air pump power | 7.5KW |
| Energy saving device | Frequency converter |
| Software program | Independent research and development CNC software |
| Control system | Cutting table and computer display |

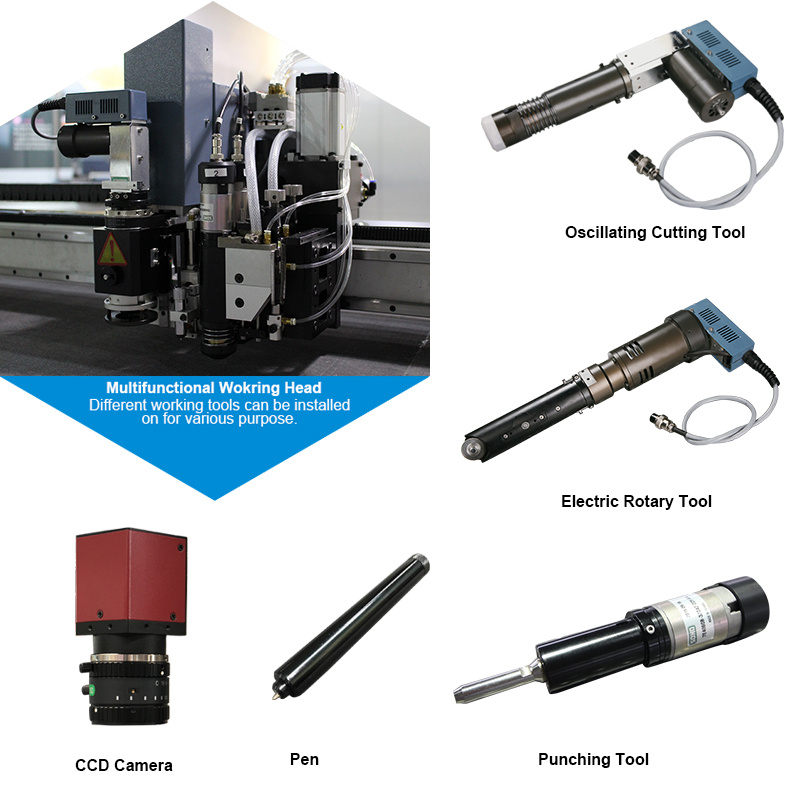

1. Oscillating knife
It is fast, accurate and no burning nor smell.
2. Electric Rotary Tool
It's more fast and low noise.
3. Punching Tool
This is special for punching when it comes to materials like leather shoes, leather belts, complex materials
and so on.
4. Drawing Pen
With gel pen, mark pen, ball pen, silver pen.
5.CCD Camera. It's professional for positioning for print materials. Automatic and precise.
Our Advantages of Pattern Cutting Machine

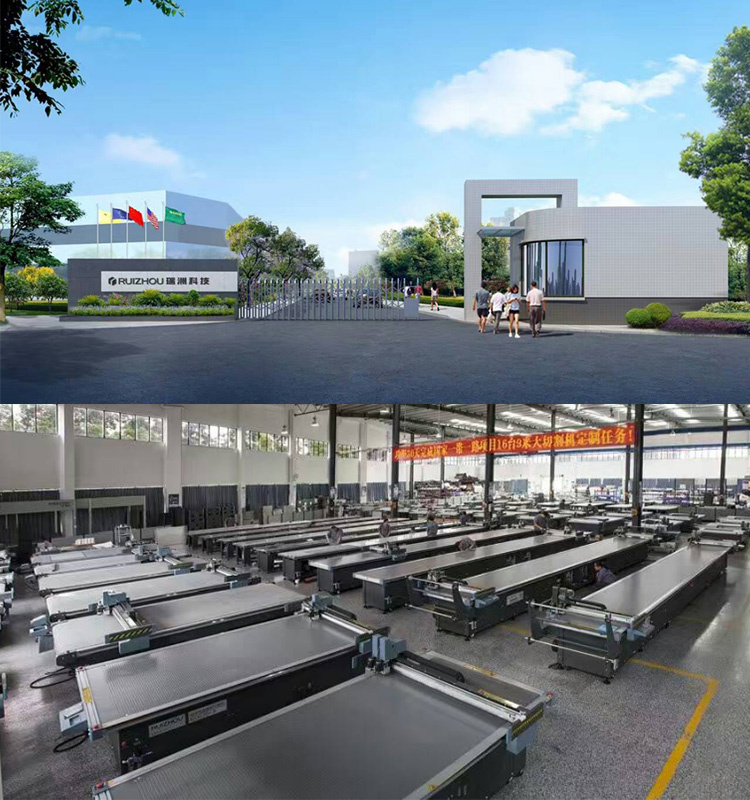

Guangdong RUIZHOU Technology Co., Ltd is a national Torch Plan High-tech Enterprise, specialized in the research, development, sales and technique service of soft material intelligent CNC cutting machine.
RUIZHOU Technology has been dedicated in supplying informationized and automatic design and whole solution of intelligent production for a broad community of soft material manufacturers, which achieves the realization of the confluence of informatization and industrialization.
Related Products
| Item Number | Working Area |
| RZCUT5-1007E | 1000X700MM |
| RZCUT5-1510E | 1500X1000MM |
| RZCUT5-2516E | 2500X1600MM |
| RZCUT5-2516EF | 2500X1600MM (with automatic feeding shelf) |
| RZCUT5-3016E | 3000X1600MM |
| RZCUT5-3016EF-2H | 3000X1600MM (with double cutting head ) |
| RZCUT5-3616E | 3600X1600MM |
| RZCUT5-3616EF-2H | 3600X1600MM (with double cutting head ) |
| RZCUT5-3625E | 3600X2500MM |
| RZCUT5-3625EF | 3600X2500MM (with automatic feeding shelf) |
| RZCUT5-3625EF-2H | 3600X2500MM (with double cutting head ) |
| RZCUT5-4016EF | 4000X1600MM (with automatic feeding shelf ) |
| RZCUT5-6016EF | 6000X1600M (with automatic feeding shelf) |
Warranty & afert sale service
1.One year guarantee for whole machine except of consumables such as knife blade, mat.
2. A free training at our company
3. 24 hours technical support
4. Calling or door-to-door service
5. User friendly English software, usual manual and videos.
