CNC Precise Panel Saw

Name: CNC Precise Panel Saw
Brand: tool-buy.com
SKU: 728008232
Availability: InStock
Rating: 4.9 (127 reviews)

Price:	US $ 7000/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

SHANDONG CHANGDA INDUSTRY GROUP CO., LTD.

Showroom Product Company Profile

Prod Model:	CDS-001
Type:	Band Saw
Layout:	Vertical
Controlling Mode:	CNC
Automatic Grade:	Automatic
Precision:	High Precision
Certification:	ISO

Product Description

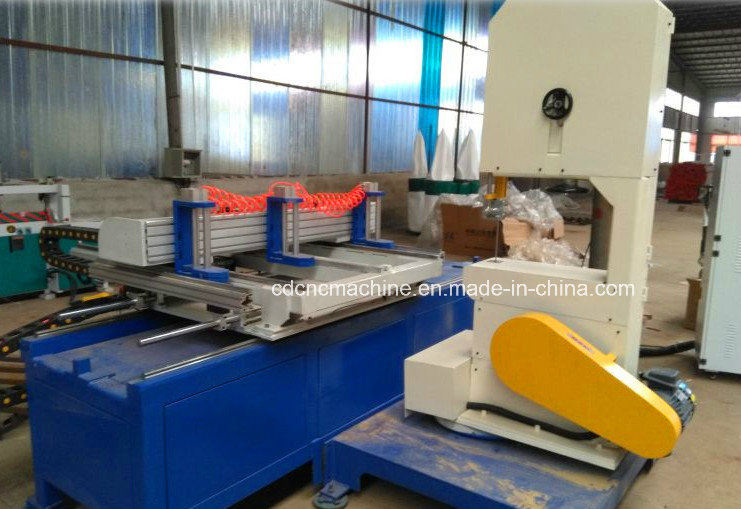

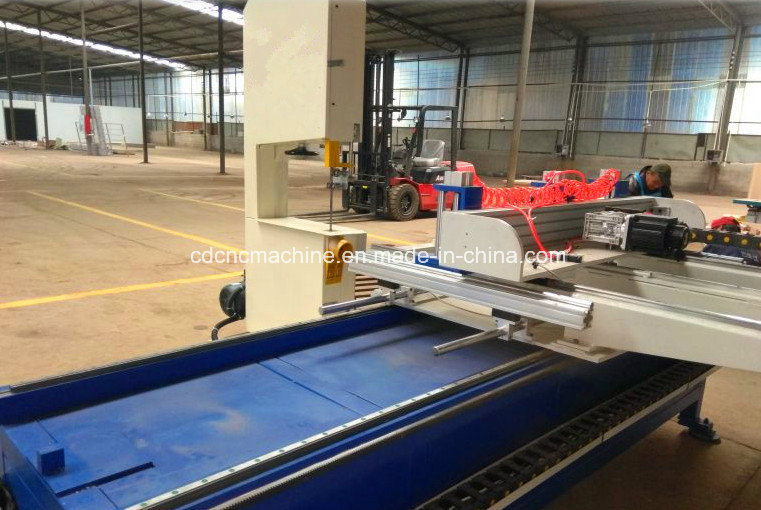

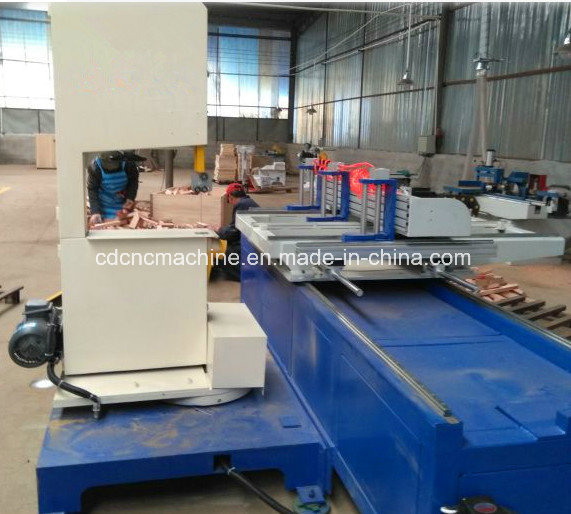

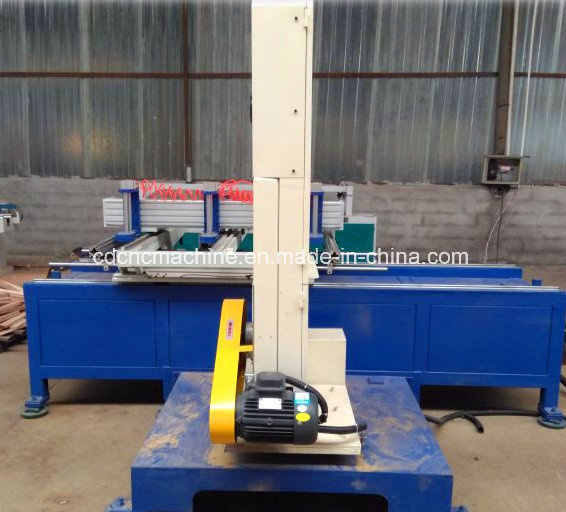

cnc precise panel saw

Characteristics

(1).the processing efficiency is high, the processing work-piece surface is good quality and no need to be crossed.

(2).Save the timber, processing range is wide, automatic programming, theoperation is easy, man-machine division, it can reduce the risk of industrial injury, it is an ideal production equipment for wood furniture and other enterprises.

(3).This machine no need to rotate the saw blade, it can easily rotate 90' , and the used saw range is wide, the width is from 10 mm to 20 mm, scientific structure design avoids the loss brought by the saw breaking and loss, extend the life of the saw blade.

(4).Few area for this machine in the workshop, processing range is wide, but with high efficiency.
(5).It is an affordable and economy machine, it can solve the curve processing for hundreds of users.
(6).The open feeding platform is more convenient, and the sawing efficiency is higher. Strong cylinder fixtures, the clamping device is reliable, clamping rang e is wide, it can saw the multi-layer sheet synchronously.
(7).The saw clamping device can enhance its precision.
(8).Advanced numerical control system with special CAD software, automatic discharging, it can save the timber, and it is also easy to learn and operate.

Applications:

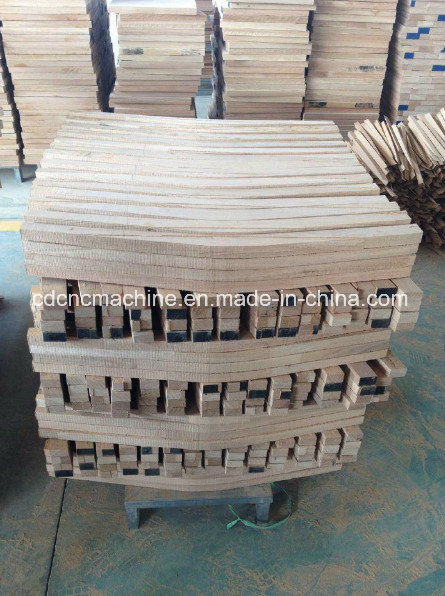

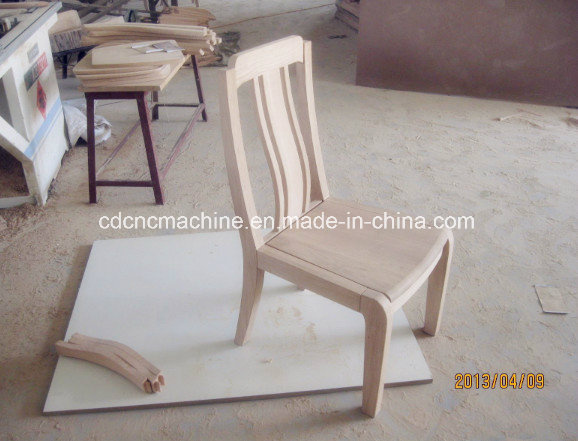

Chair legs,chair backs,dinning table,hatstand,desk,bed,home decorations etc

Parameters

Mode	CNC1212	CNC1225
Max size of work-piece	1220*1220mm	1220*2500mm
Max working thickness	250mm	250mm
Saw wheel diameter	600mm	600mm
Saw length	250.94470	250.94470
Min cutting radius	R80 or R95mm	R80 or R95mm
Saw table jaws deepth	760mm	760mm
Saw tilting	±90°	±90°
X-Axis Motor	15n/m	15n/m
Y-Axis Motor	10n/m	10n/m
Z-Axis Motor	6n/m	6n/m
Spindle motor	4kw	4kw
X-Axis Maximum Speed	40m/min	40m/min
Y-Axis Maximum Speed	40m/min	40m/min
Z-Axis Maximum Speed	180 °/sec.3	180 °/sec.3
Processing Speed	1-25n/m	1-25n/m
Return speed	6-40n/m	6-40m/min
Air pressure	0.6-0.8mpa	0.6-0.8mpa
Dust outlet diameter	Φ100	Φ100
Net weight	2700kg	3000kg
Overall dimensions	200014002300mm	200014002300mm
	240023501500mm	380023501500mm

Warranty:

(1). The engineers of the original factory are available to do all kinds of the original factory are available to do all kinds of oversea machinery service. In some countries, we have oversea agents doing after sale service in time and professionally.

(2). we also offer 24 hours heart to heart service on-line or mobile.

(3).Your technologists could attend the training in our factory and on-line which be free of chaege

(4).The warranty of CNC Curve Band Saw is 12 months, small broken parts could be freely replaced at any time, spare parts are delivered with machine for customer convenience.

(5). We offer you best agent price and distributer price for our further cooperation .

(6). we can offer special custom-made according to your request.

ShanDong Changda Industry Group Co., Ltd

One of China manufacturer of woodworking machines, famous for various kinds of woodworking machines, having its own factory and after sell service team.

We sell woodworking machine almost 6 years. Low Price, Best quality, Best service.

Main product: Panel furniture processing production line, solid wood furniture processing production line, , log processing production line, , wood based panel processing production line and also can supplly hardware and glue of furniture so on.

Now we focuses on overseas market, to provide the customer woodworking machinery with an affordable solution without sacrificing options or function.

Our Value and Obligation:

1) Do business with integrity. No cheating and deception.

2) We are committed to offer high quality products.

3) We are committed to provide professional and efficient premium services.

4) If you are or will be a distributor, we are willing to help you develop new markets, enhance performance.

5) If you are the end user, we will help you choose the right products and offer life-time technical support.

Quality Control:

1) During procurement, we have strict control about the quality of the spare parts.

2) Manufacturing period, we have QC department to monitor each step of production process by different testing tools and inspection forms.

3) Before shipment, we will test machine by different common materials, and make necessary adjustment and data record. Also we will take photos and some sample videos for customers.

Market: Now the market is mainly distributed in North America, South America, Europe, Oceania, Middle East, Southeast Asia, South Asia and West Asia. We have established cooperative relationship with hundreds of clients in nearly 18 countries. We are actively looking for new partners to explore the new market, to achieve win-win. We prefer to provide valuable product, service and solution for more end users. We appreciate you join us, to be partner in business, to be friend in life, to be one family forever.

Product: We produce woodworking machinery, such as wood lathe, CNC routers, four side moulder, CNC band saw, wood sander, tenoning machine and other woodworking machines. We offer customized service according to your special requirement, such as, shape, dimension, color, specification and structure design, etc. OEM is available.

With high credit standing, best quality and service system, and the competitive price policy, we sincerely look forward to establishing a stable long-term strategical business cooperation with you.

"BEST MACHINE & BEST SERIVES! " This is Our Goal. Don't hesitate to contact us. You are welcome!
