| Prod Model: |
WF67K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania |
| Name: |

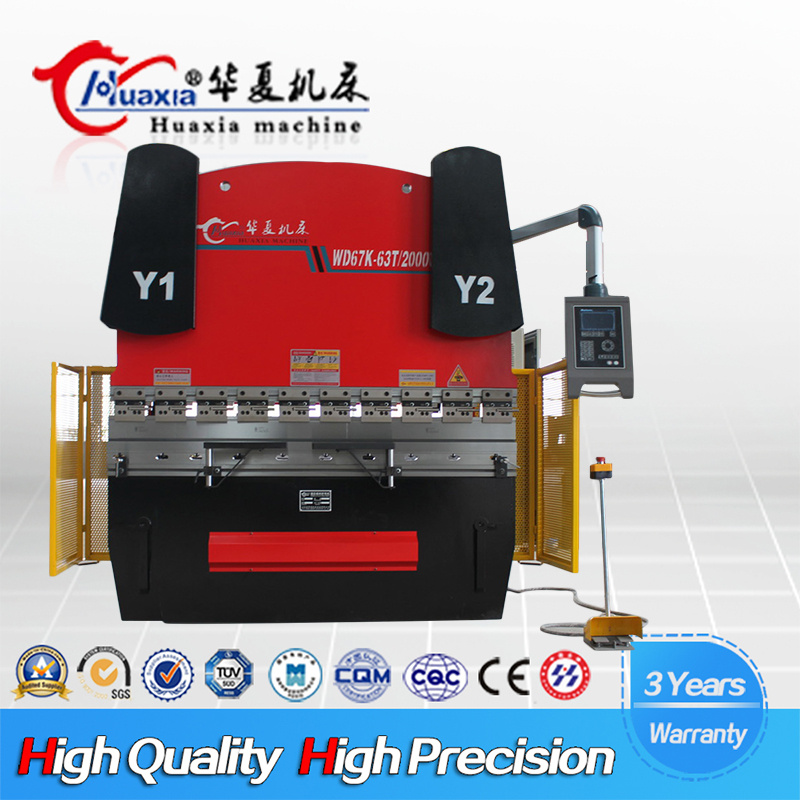

CNC Press Brake Hydraulic Power with Da41 Controll |
| Controller Brand: |
Da41 |
| Machine Type: |
Press Brake |
| Drive Power: |
Hydraulic |
| Nominal Pressure: |
Depend on Machine |
| Main Motor: |
Depend on Machine Size |
| Motor Brand: |
Simens |
| Hydraulic System: |
Rexroth |
| Oil Pump: |
Sunny |
| How Many Axis: |
3+1 |
Product Description
CNC Press Brake Hydraulic Power with Da41 ControllerMachine Feature:
1,This machine is designed limiting limit elements analyzing and optimization made of entirely steel structure. Using libration effort to eliminate inner stress, the rigidity of machine is guaranteed.
2,Slider adopt torsion shaft synchronization mechanism, high-precision twisting axis centering taper bearings at both ends of torsion shaft, and to install loads, can make the workpiece acquire better precision of bending.
3,The bending angle adjustment by reducer driven by a mechanical block inside the fuel tank, trip counter display value.
Installed long-distance pressure-regulator valve on column right side.
Wallboard inside with manual pumps...
Back gauge adopt grinding plate design, high regulation accuracy.
| ANHUI HUAXIAMACHINE MANUFACTURING CO., LTD |
| WF67Y-100T/3200 hydraulic press brake |
| The Main Parameters of the Machine |
| Nominal Pressure | | 1000KN |
| Workbench Length | | 3200mm |
| Workbench Width | | 180mm |
| Poles distance | | 2600mm |
| Throat depth : | | 320mm |
| Slipper Stroke: | | 120mm |
| Max Opening Height | | 480mm |
| slipper stroke adjust Length | | 100mm |
| Oil Cylinder dia | | 180mm |
| Main motor | | Y132M-4 n=1440r/min N=7.5KW |
| Oil pump | | NB3-G16F |
| Hydraulic System Max Work Pressure | | P=22MPa |
| wallboard thickNess | | 40mm |
| slipper thickNess | | 50mm |
| support plate thickNess | | 45mm |
| Dimension(L ×W×H) | | 3300mm×1750mm×2600mm |
| Machine weight | | 7.1 Ton |
With series of bender, shearing machine, rolling machine, punching machine and forming dies as its main products, Anhui HuaXia Machine Manufacturing Co. Ltd. Provides special machinery and complete sets of equipment for a wide range of industries including aviation, light industry, metallurgic industry, metalworking, architecture, automobile, power industry, decoration engineering and so on. Its clients are found all over China and other countries and regions in Europe, America, Southeast Asia and Middle East. We have built offices in different parts of China, which forms a huge sales network and offers guarantee for convenient after-sales services. Besides, we have Wuhan Huayin electromechanical equipment subsidiary company in Hubei province, which deals in various kinds of famous brand electromechanical equipment.
The company adopts modern management concept and emphasizes its quality control. It wins trust and applause from the clients with its outstanding quality, novel design, reasonable price and perfect after-sales service. It has been awarded many titles such as 'Faithful Taxpayer', 'Credit Enterprise', 'National Exemplary Enterprise On quality & After-sales', 'China Quality-guaranteed Brand', "Anhui Famous Brand" and so on.
The company owns two machine production bases, which covers area of 18, 000 square meters and 112, 000 square meters respectively, and both of them possess standardized machine manufacturing ability. The whole staff of the company is striving for the most desirable quality of products with up-to-date technology and modernized management. The company has passed the ISO9001: 2000 quality management system certification and its products sell well and enjoy a good reputation both at home and abroad. Especially in recent years, its export share has been expanded increasingly. After obtaining CE Certificate in 2007, the company exported products to Germany and other EU countries successfully, which laid a good foundation for entering other developed countries.
In pursuit of excellence, HuaXia people will keep pioneering and progressing. We sincerely wish to join hands with friends from various circles to achieve common improvement and prosperity.
